Home
>>
Mitsubishi
>>
1997
>>
Eclipse FWD L4-1997cc 2.0L DOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Automatic Transmission/Transaxle
>>

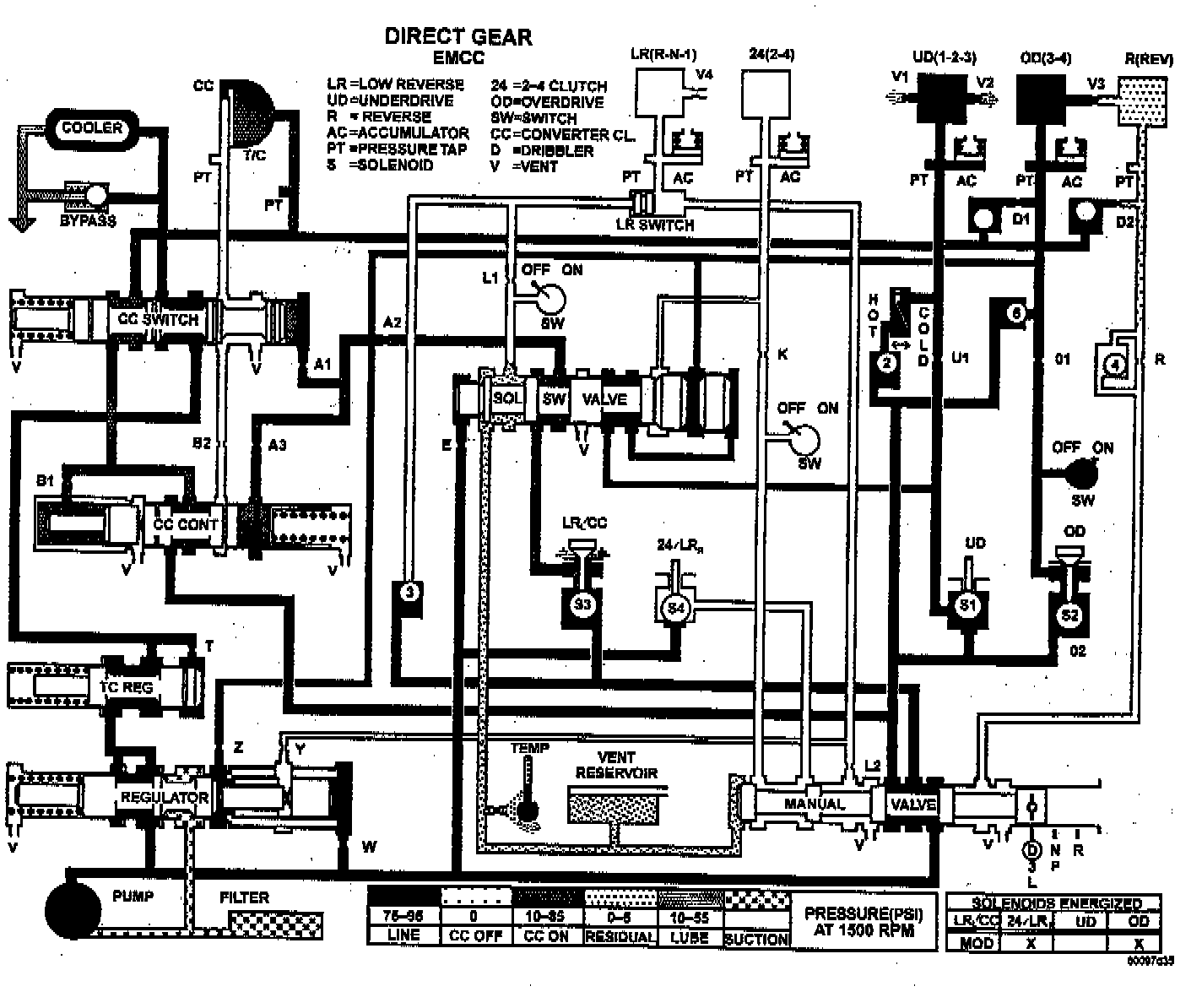

Direct Gear - Electronically Modulated Converter Clutch
Direct Gear - Electronically Modulated Converter Clutch
Direct Gear - Electronically Modulated Converter Clutch:
