Home
>>
Mitsubishi
>>
1997
>>
Eclipse FWD L4-1997cc 2.0L DOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Vehicles Without Theft-Alarm System
>>
Automatic Transmission
Automatic Transmission

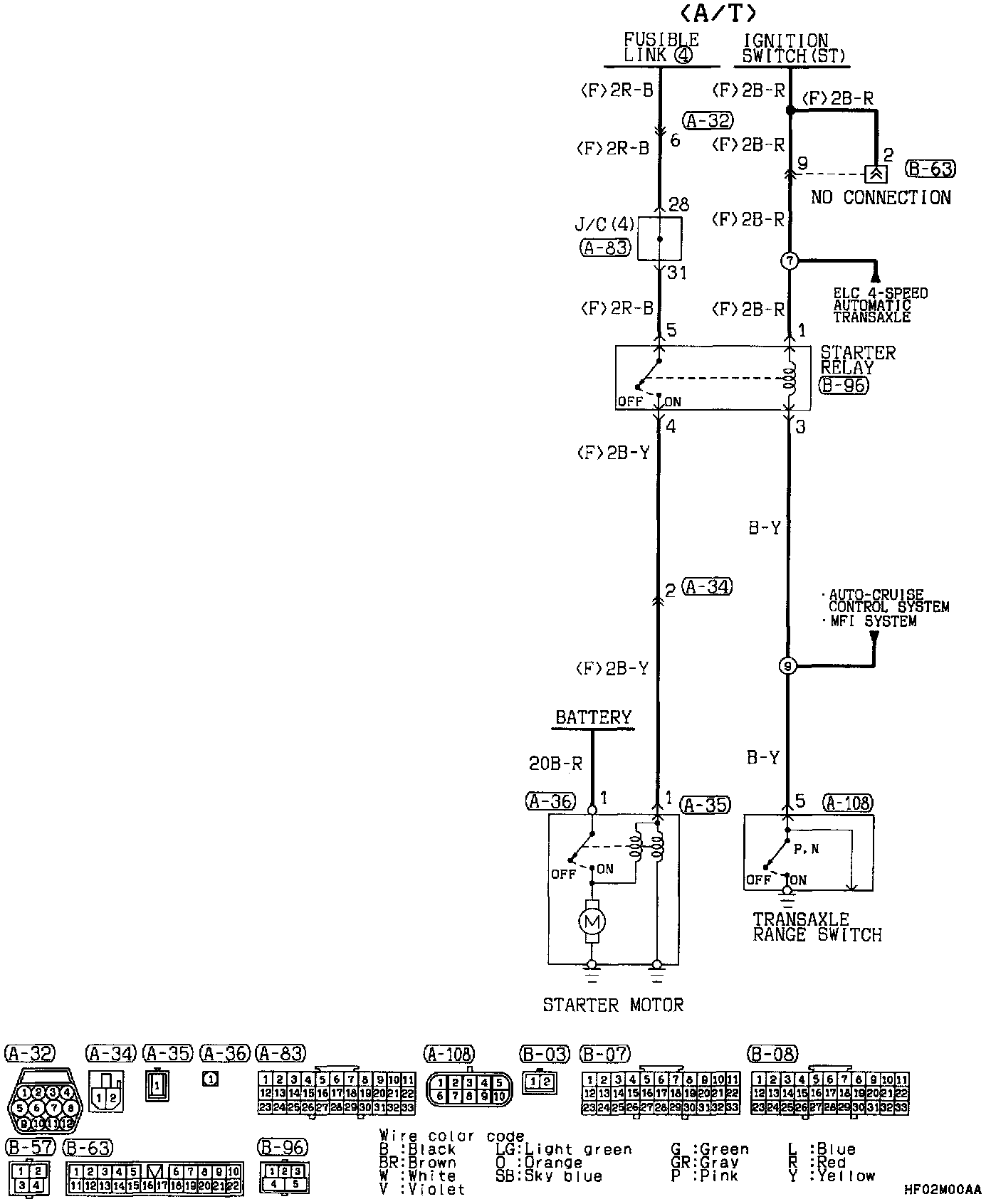

Starting System Circuit <A/T>:
