Cruise Control Servo Cable: Adjustments
ACCELERATOR CABLE

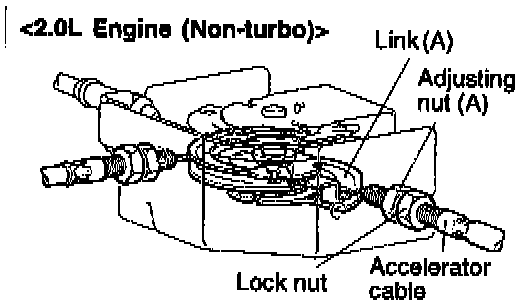

1. Adjust with the adjusting nut A so when the link A hits the stopper, the accelerator cable play (inner cable play reaches the standard value.
Standard value:
2-3 mm (0.08 - 1.2 in.)
2. Fix the accelerator cable with the lock nut.
THROTTLE CABLE

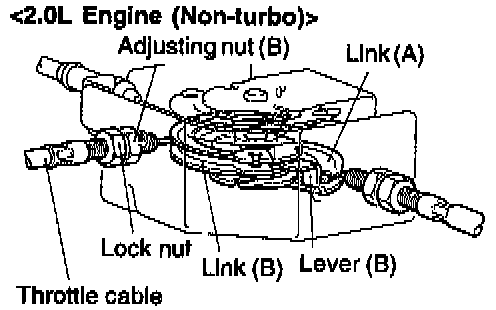

1. Adjust with the adjusting nut B so when the lever B hits the link A, the throttle cable play (inner cable play) reaches the standard value.
Standard value: 1 - 2 mm (0.04 - 0.08 in.)
2. Fix the throttle cable with the lock nut.
3. Tighten the throttle lever-side adjusting bolt to the specified torque.
SPEED CONTROL CABLE
Hold the link C at the position where the lever C touches the link B. Then fix the speed control cable.
