Solenoid Valve Check

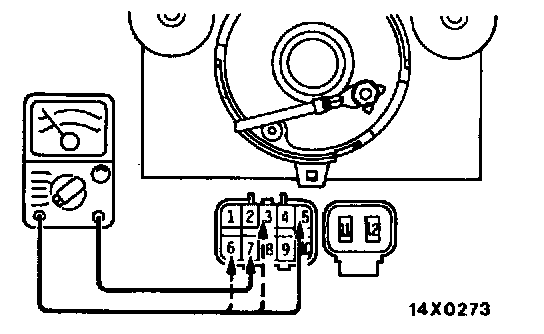

Measure the resistance between the terminals shown. The standard value is 1000 - 1300 ohms.
