Differential Assembly

W6MG1 6-spd M/T, Differential Dimensions:

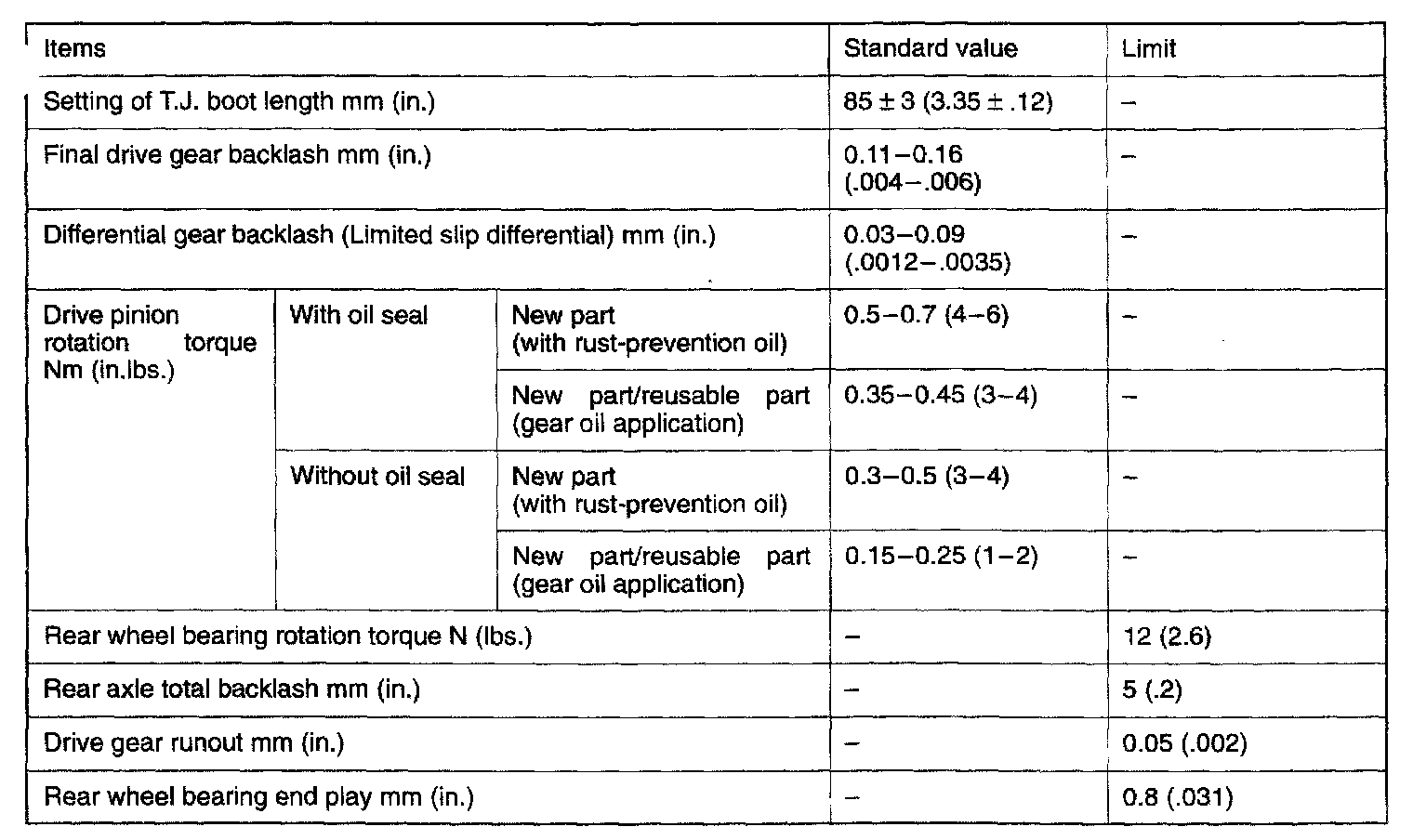

W6MG1 6-SPD M/T, Standard Values & Limits:
