Emission Control Systems: Service and Repair

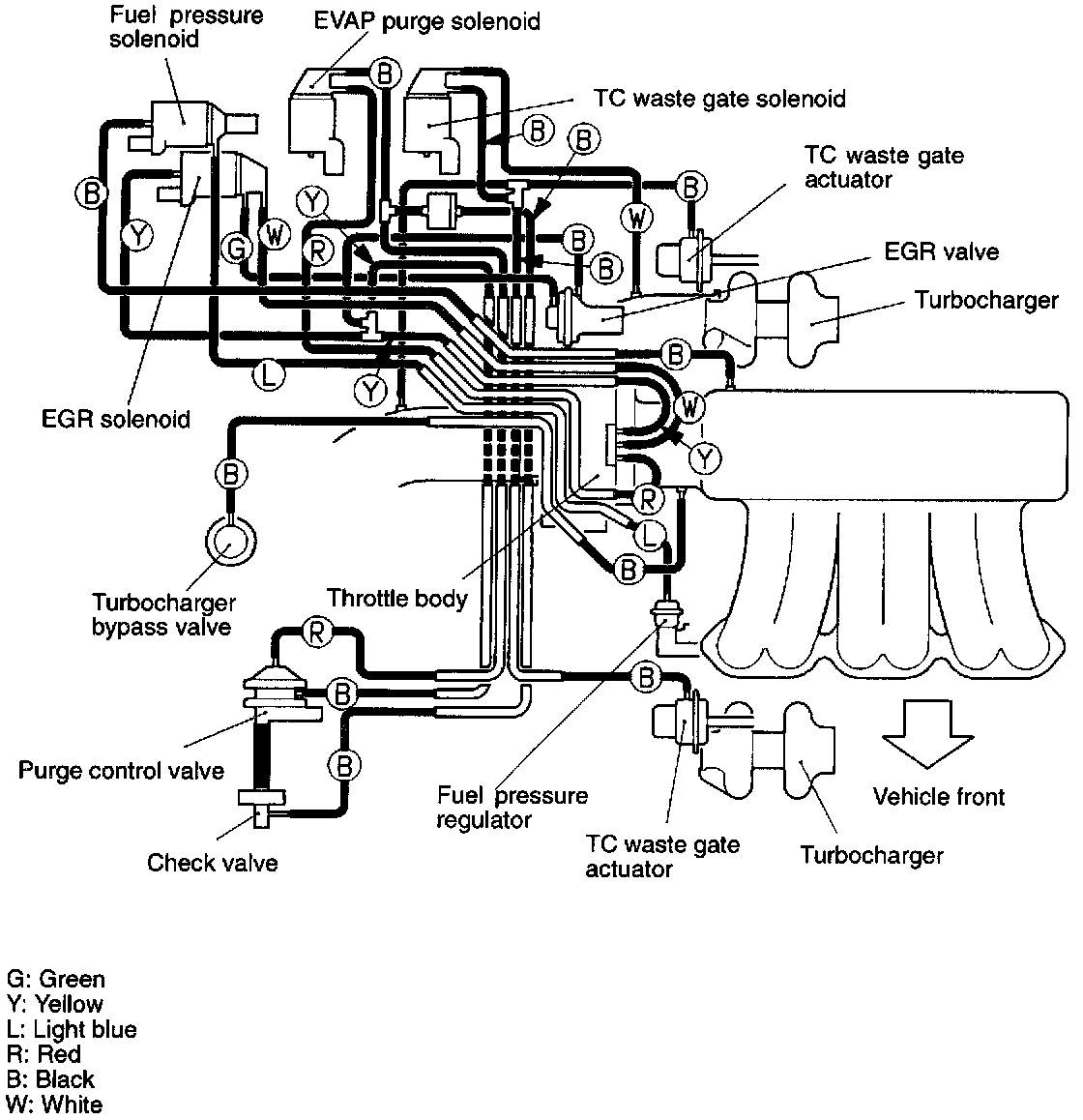

Turbo - Vacuum Hoses Routing
1. When connecting a hose, firmly press it onto the nipple.
2. Referring to the VACUUM HOSES ROUTING, connect the hoses correctly.

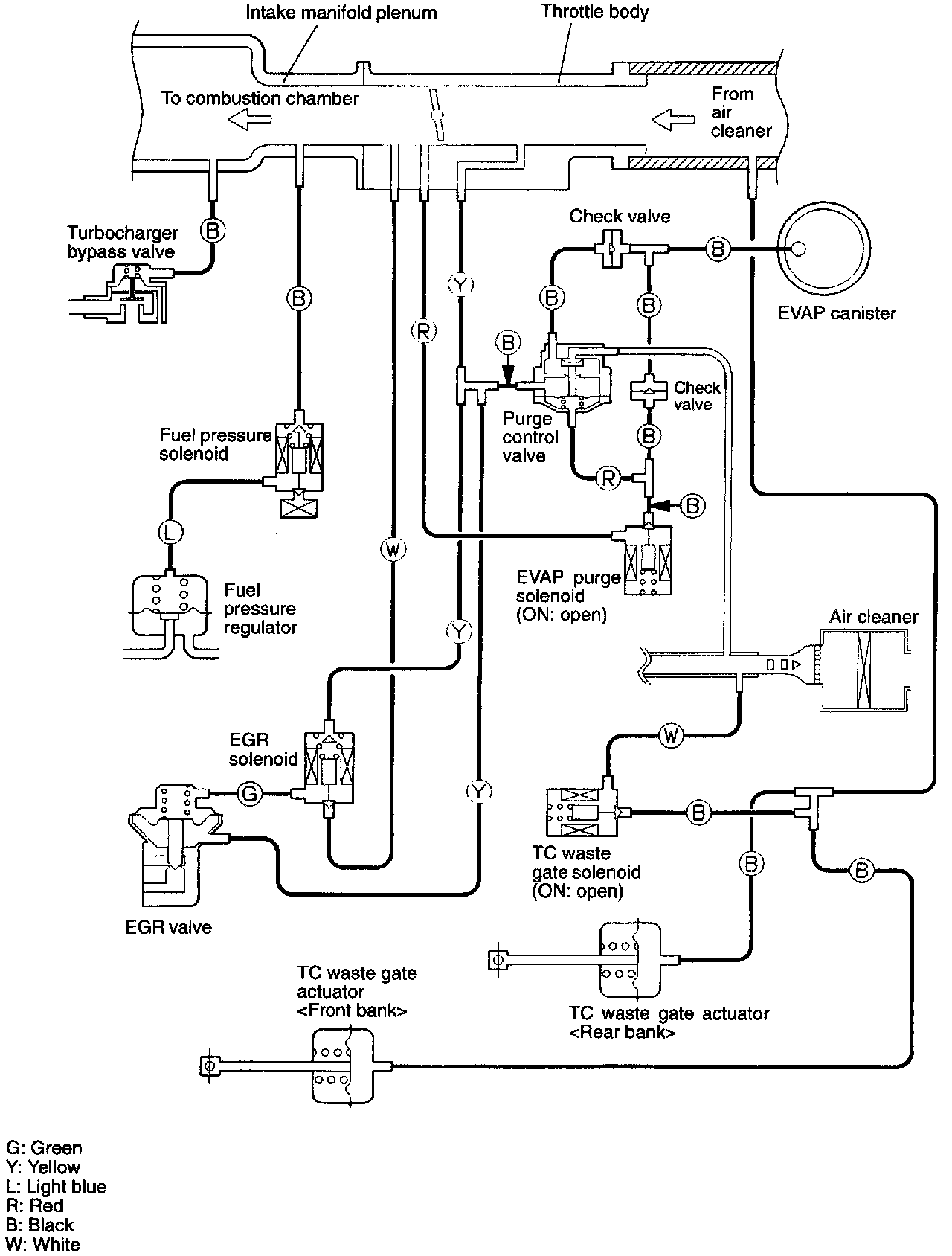

Turbo - Vacuum Circuit Diagram
