Component Tests and General Diagnostics

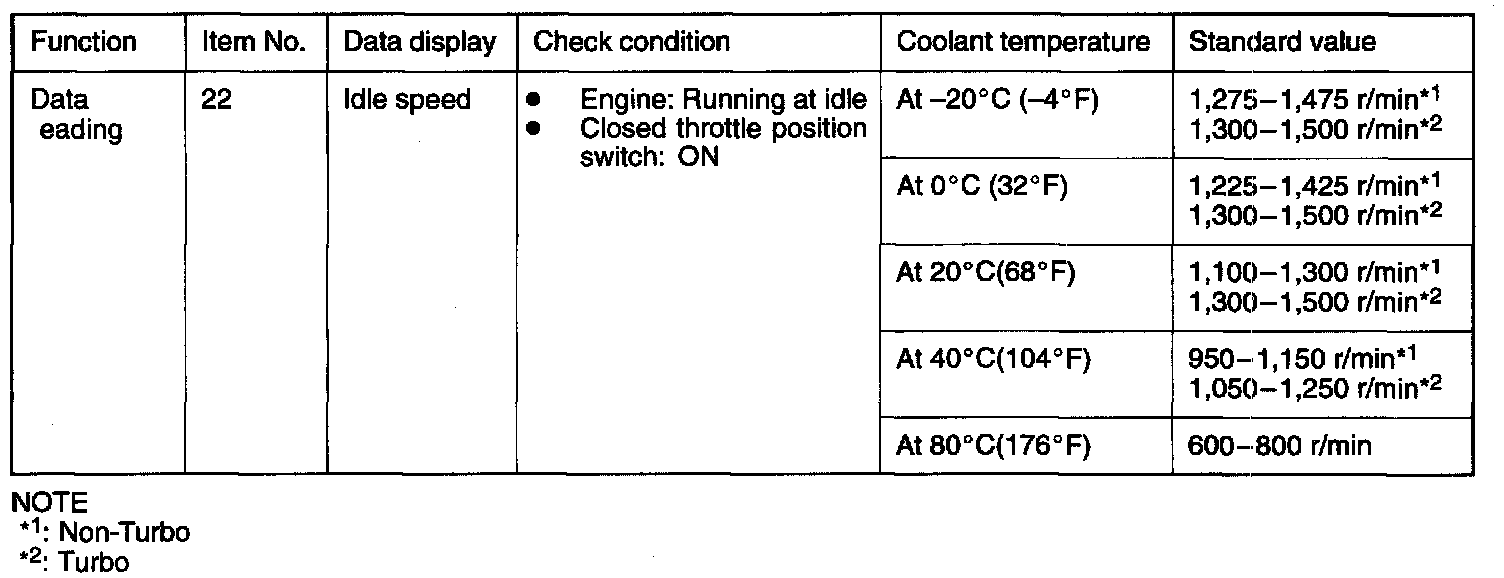

INSPECTION USING SCAN TOOL




NOTE:

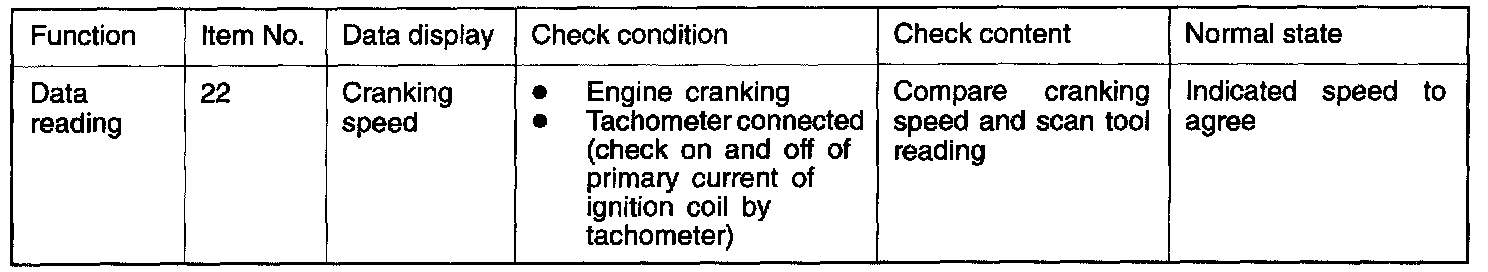

- The tachometer indicates a third of the actual engine speed. Therefore, 3 times the tachometer indication is the actual engine speed.
- When the tachometer is set to the 2-cylinder range, it indicates actual engine speed.
