A/C Signal: Testing and Inspection

HARNESS INSPECTION

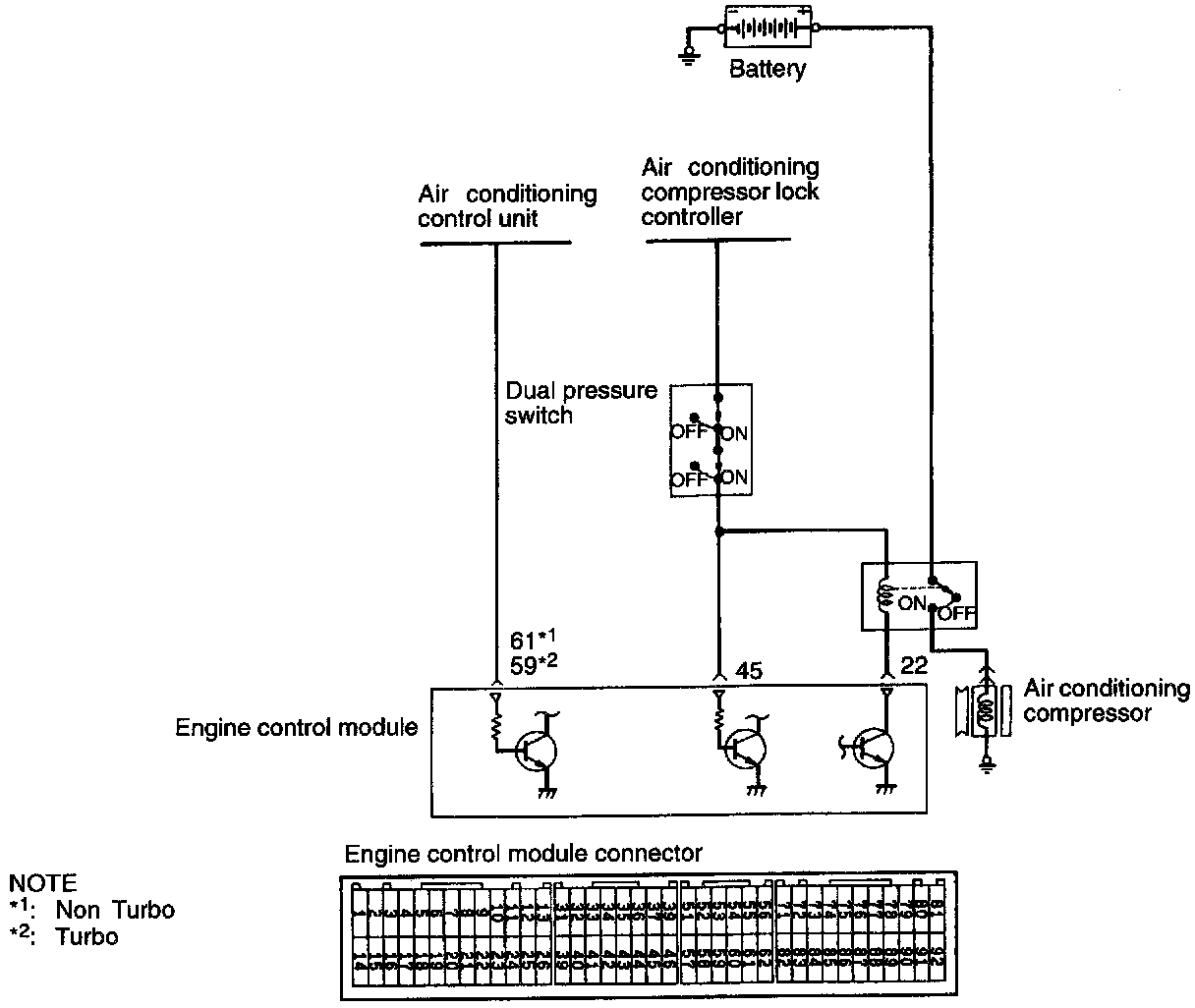

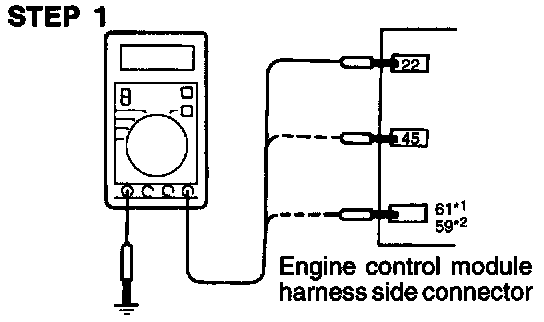

Measuring the power supply voltage of the A/C circuit.

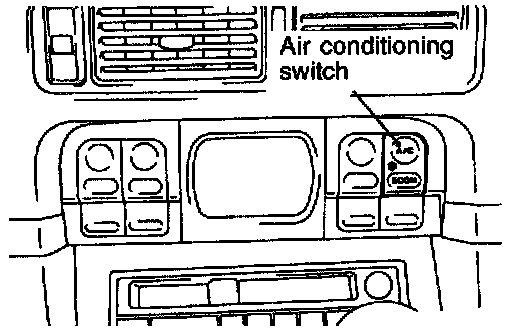

- Air conditioning switch: ON
- Engine control module connector: Disconnected
- Ignition switch: ON
- Dual air conditioning switch: ON







Voltage: Battery positive voltage
OK: STOP
NG: Check the A/C circuit.
