Toe-In

Standard value: (0.5 ± 2.5 mm (.01 ± .09 inch) -2.0 to +3.0 mm (-.08 to +.10 inch)

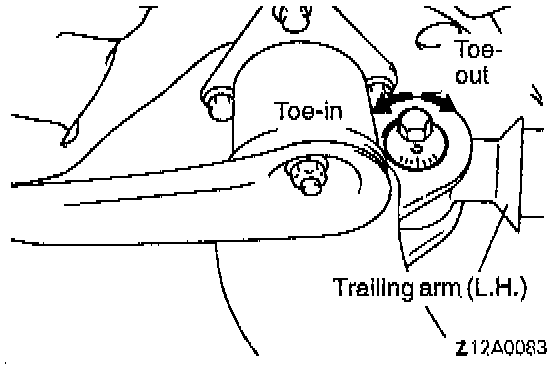

To adjust toe, turn the assist link mounting bolts (on crossmember side) on both sides the same amount.

NOTE:
Left wheel: Clockwise (toe-in).
Right wheel: Clockwise (toe-out).
The difference between right and left wheels should be 3 mm (.12 inch) or less.
One graduation changes toe by about 2 mm (.08 inch).





CAUTION:

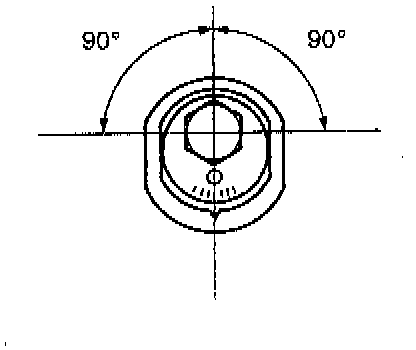

1. Adjust the eccentric bolt within 90° from the central position.
2. Adjust camber and toe, in that order, and, if camber is adjusted, be sure to adjust toe also.
3. Make the adjustments with the 4WS tie rod end disconnected from the trailing arm.
