Input Switch Code Check

HOW TO READ INPUT SWITCH CODES

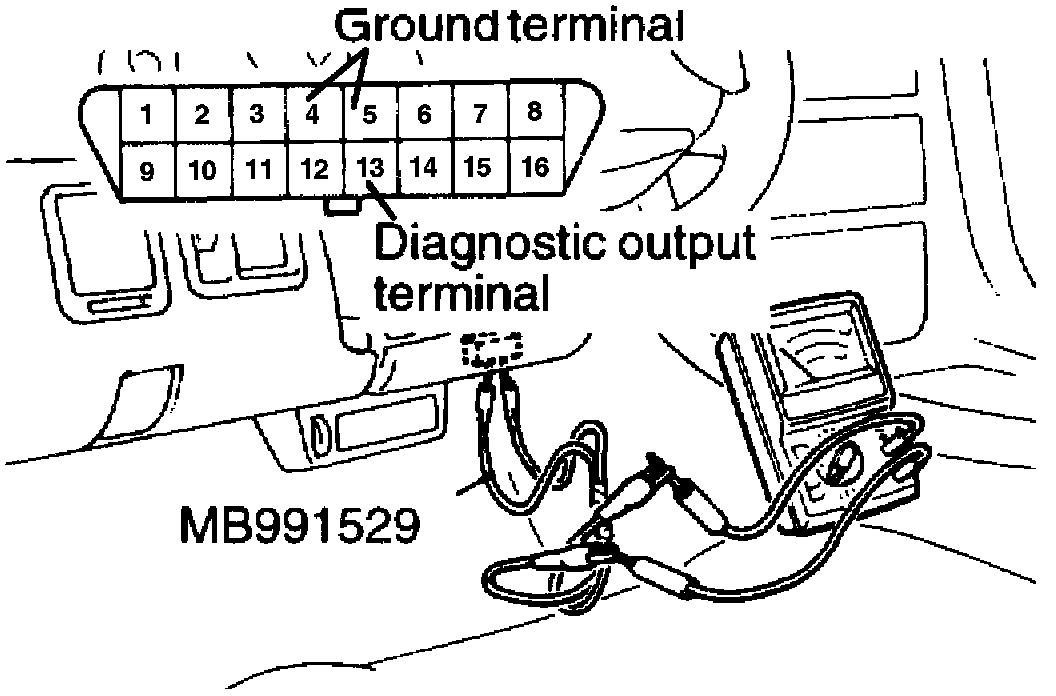

1. Connect a scan tool or a voltmeter to the data link connector.
2. Set the ignition switch to ON.




3. With the SET switch in the ON state, set the main switch to ON. In less than 1.0 second thereafter, set the RESUME switch to ON. Then the input check results can be displayed.
4. Perform the individual input operations according to the input check table and read the codes.
