Rear Wiper / Washer Switch
Rear Wiper / Washer Switch

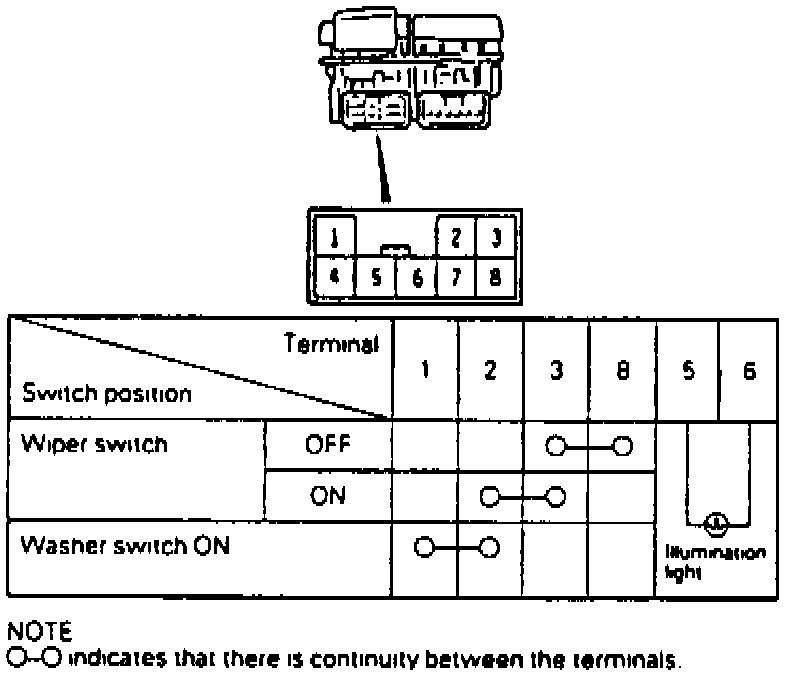

Fig. 40 Rear Wiper & Washer Switch Continuity Chart:
Operate switch and check for continuity between terminal as shown in
Fig. 40
. If results are not as specified, replace switch.
