Air Cleaner Housing: Service and Repair

PRE-REMOVAL AND POST-INSTALLATION OPERATION
- Battery, Battery Seat and Tray Removal and Installation
- Splash Shield (R.H.) Removal and Installation

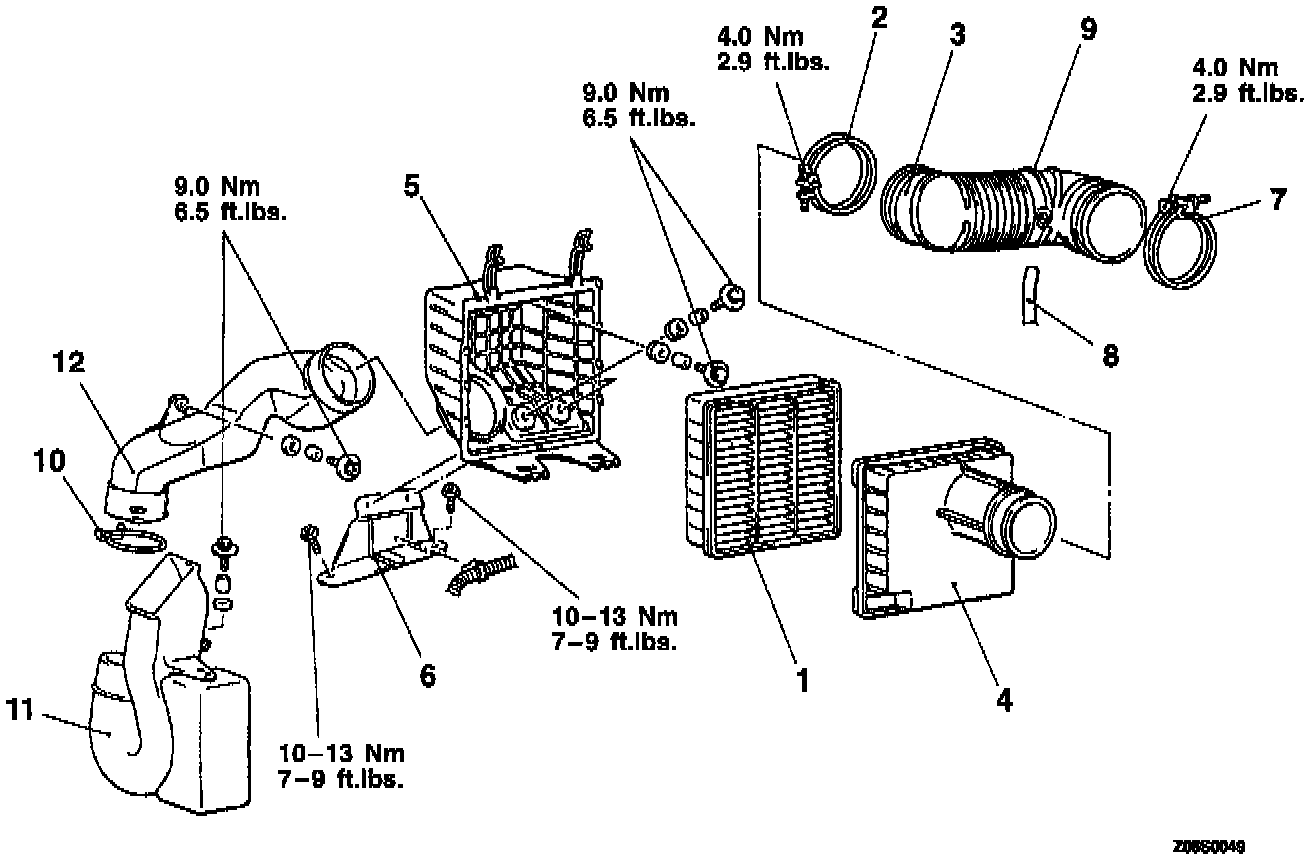

AIR CLEANER COVER REMOVAL STEPS
1. Air cleaner element
2. Hose clamp
3. Air intake hose connection
4. Air cleaner cover

AIR CLEANER BODY REMOVAL STEPS
1. Air cleaner element
4. Air cleaner cover
5. Air cleaner body
6. Air cleaner bracket

AIR INTAKE HOSE REMOVAL STEPS
2. Hose clamp
7. Hose clamp
8. PCV hose
9. Air intake hose

AIR DUCT A AND B REMOVAL STEPS
1. Air cleaner element
4. Air cleaner cover
5. Air cleaner body
10. Hose clamp
11. Air duct A
12. Air duct B




INSTALLATION SERVICE POINT
Air Intake Hose And Hose Clamps Installation
1. Install the air intake hose so that the "UP" mark is towards the top.
2. Install the hose clamp on the throttle body side so that the thread section of the hose clamp is horizontal.
3. Install the hose clamp on the air cleaner side so that the thread section of the hose clamp is vertical.
