With Cruise Control

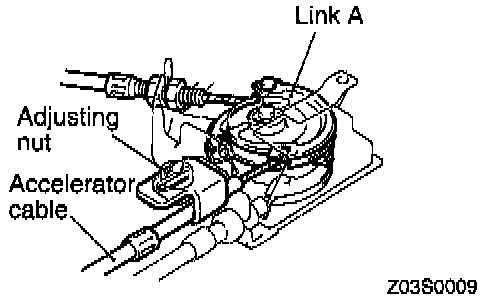

ACCELERATOR CABLE
1. With the link A held against the stopper, loosen the adjusting nut and slide the plate of the accelerator cable to adjust the accelerator cable play to the nominal value.

Nominal value:
0 - 1 mm (O - 0.04 in.) M/T
2 - 3 mm (0.08 - 0.12 in.) A/T

2. After adjustment, tighten the adjusting nut positively to secure the cable.

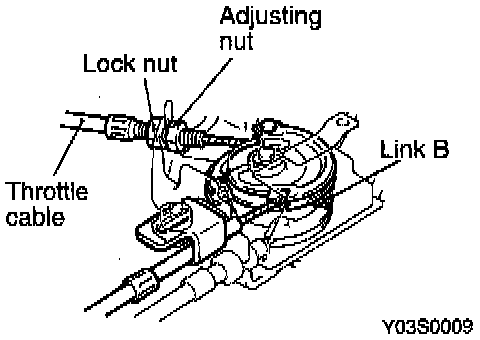

THROTTLE CABLE ADJUSTMENT
1. With the link B held in light contact with the link A, adjust throttle cable play to the nominal value by means of the adjusting nut.

Nominal value: 1 - 2 mm (0.04 - 0.08 in.)

2. After adjustment, secure the cable with the lock nut.
