Mitsubishi
>>
1996
>>
Mirage L4-1468cc 1.5L SOHC 12 Valve
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Federal
Federal

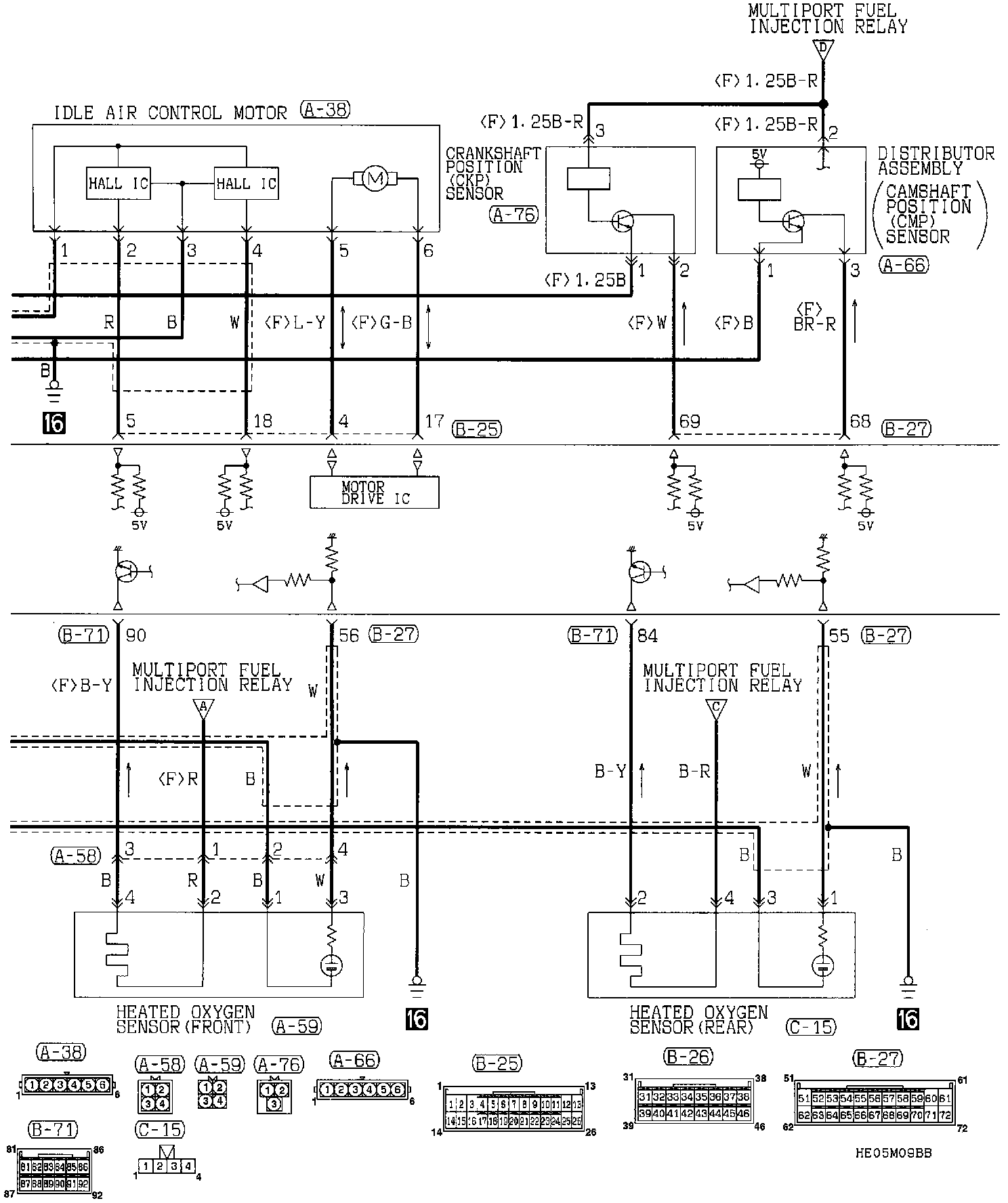

MFI System (Part 1 Of 6):

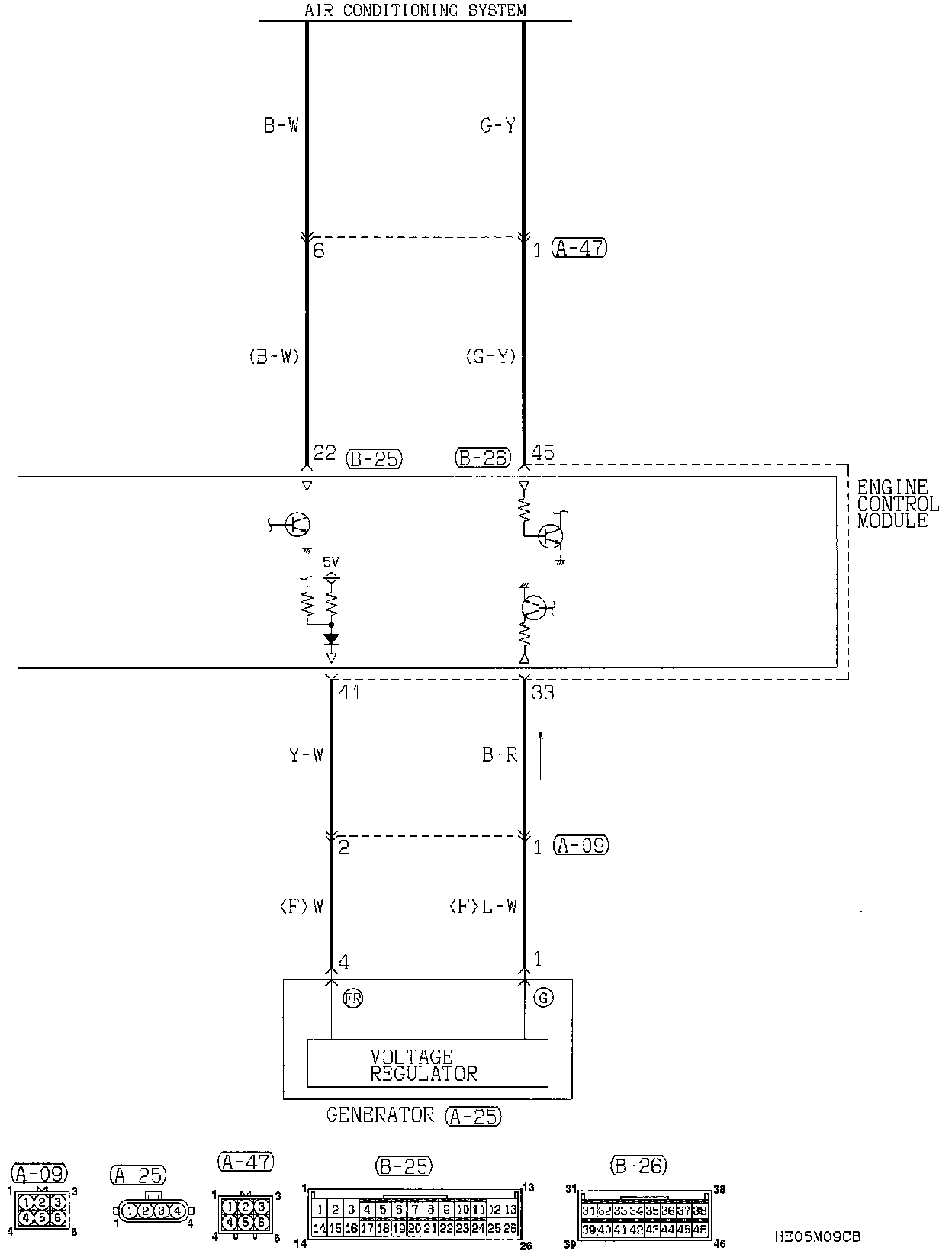

MFI System (Part 2 Of 6):

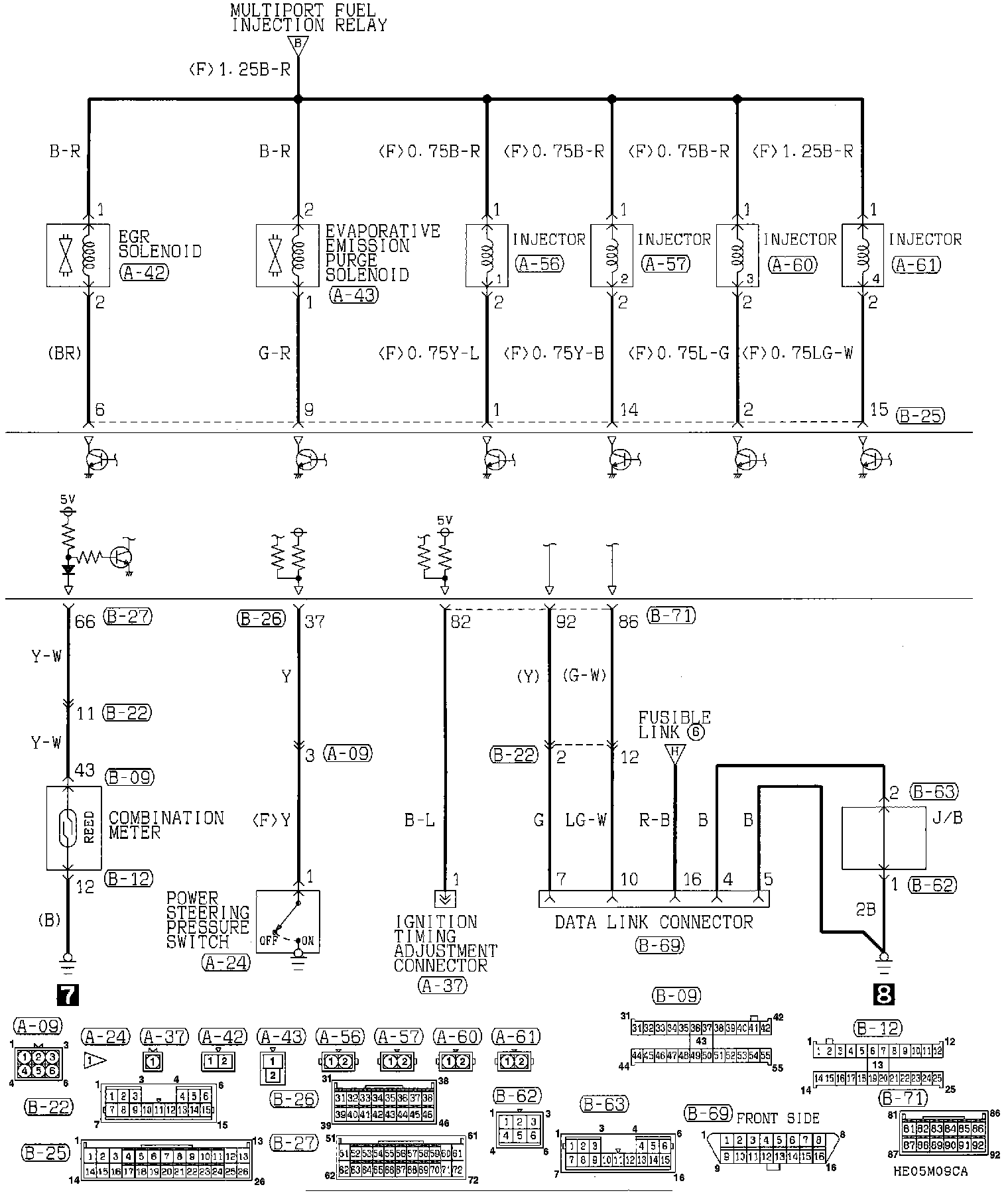

MFI System (Part 3 Of 6):

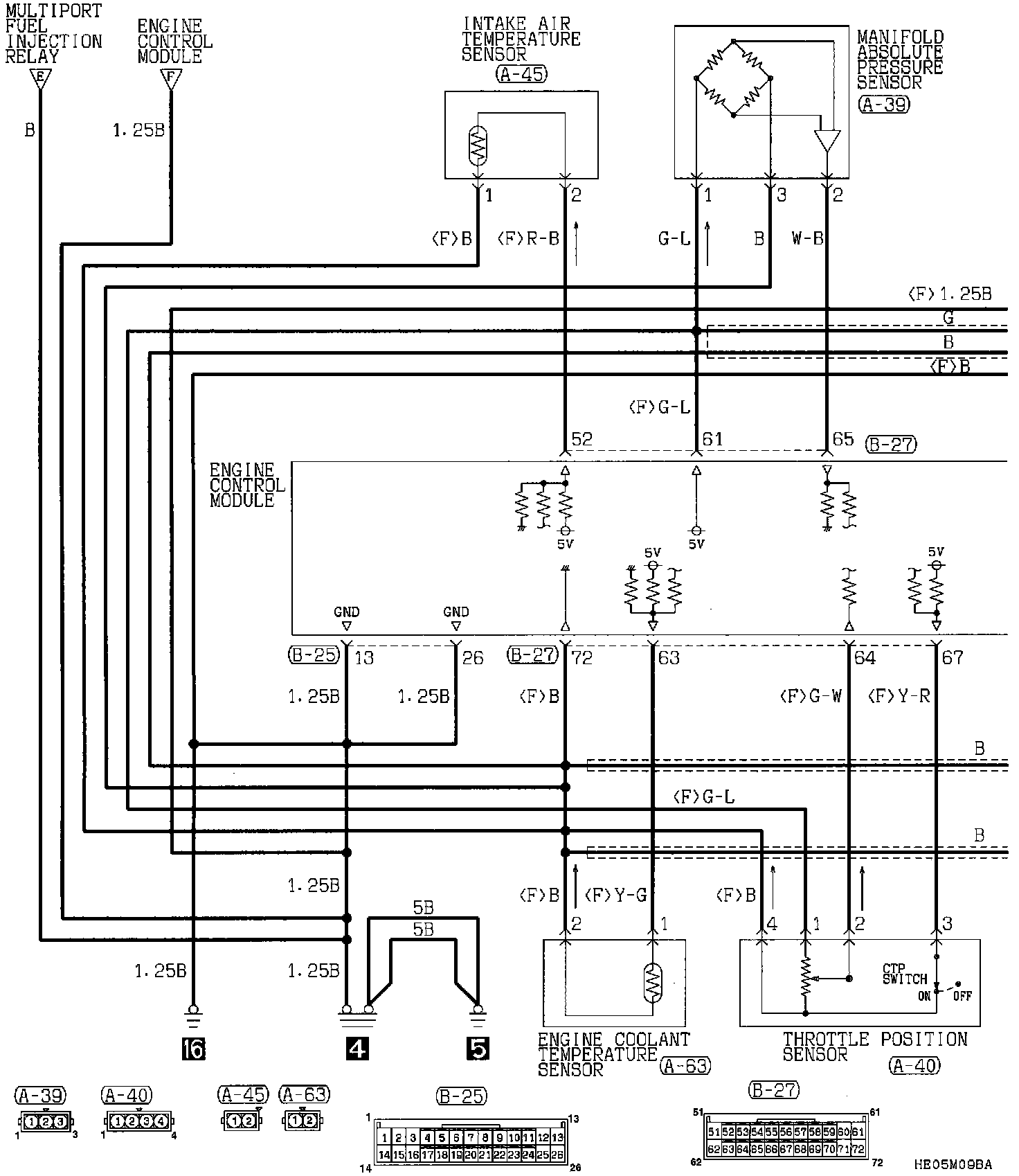

MFI System (Part 4 Of 6):

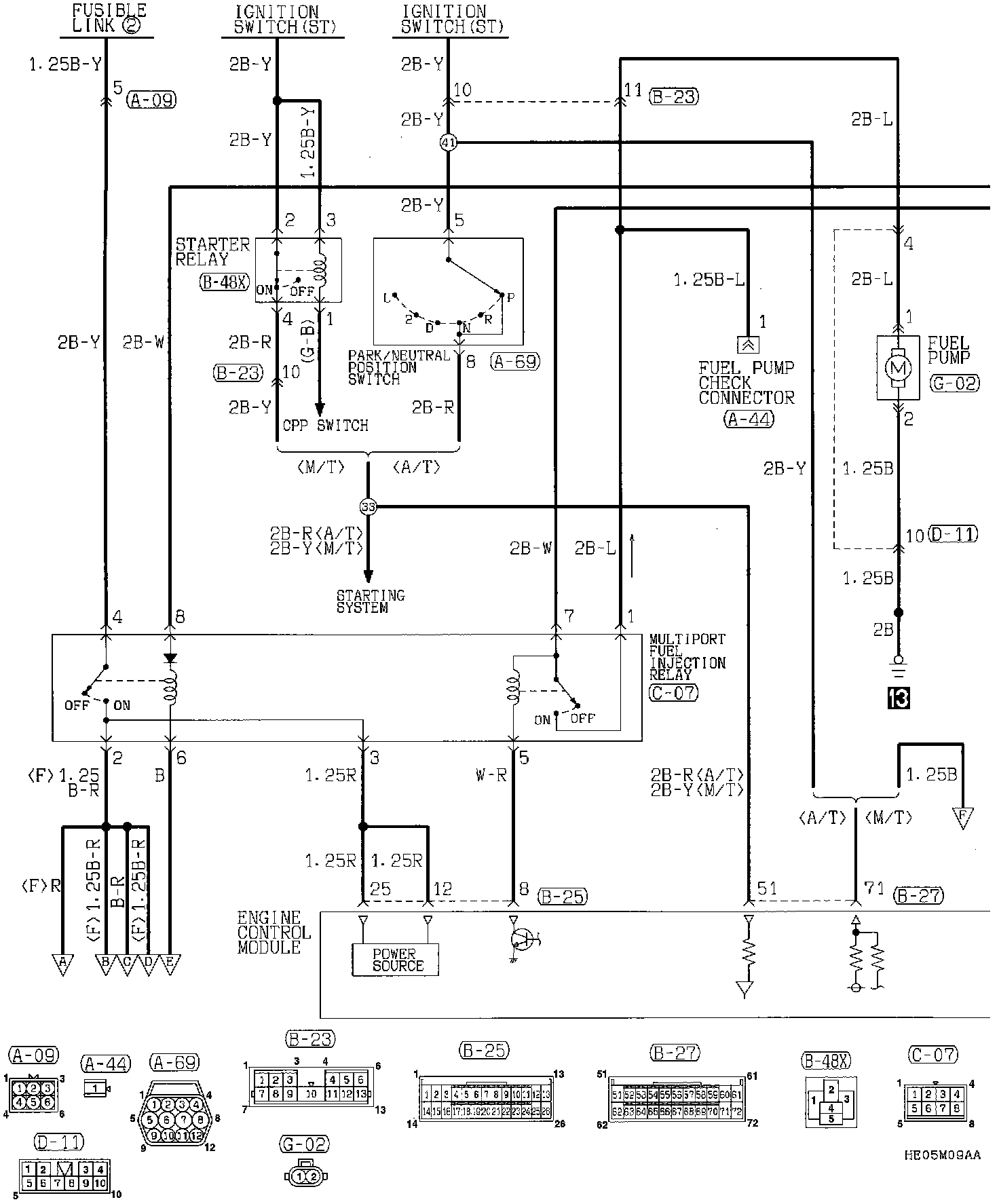

MFI System (Part 5 Of 6):

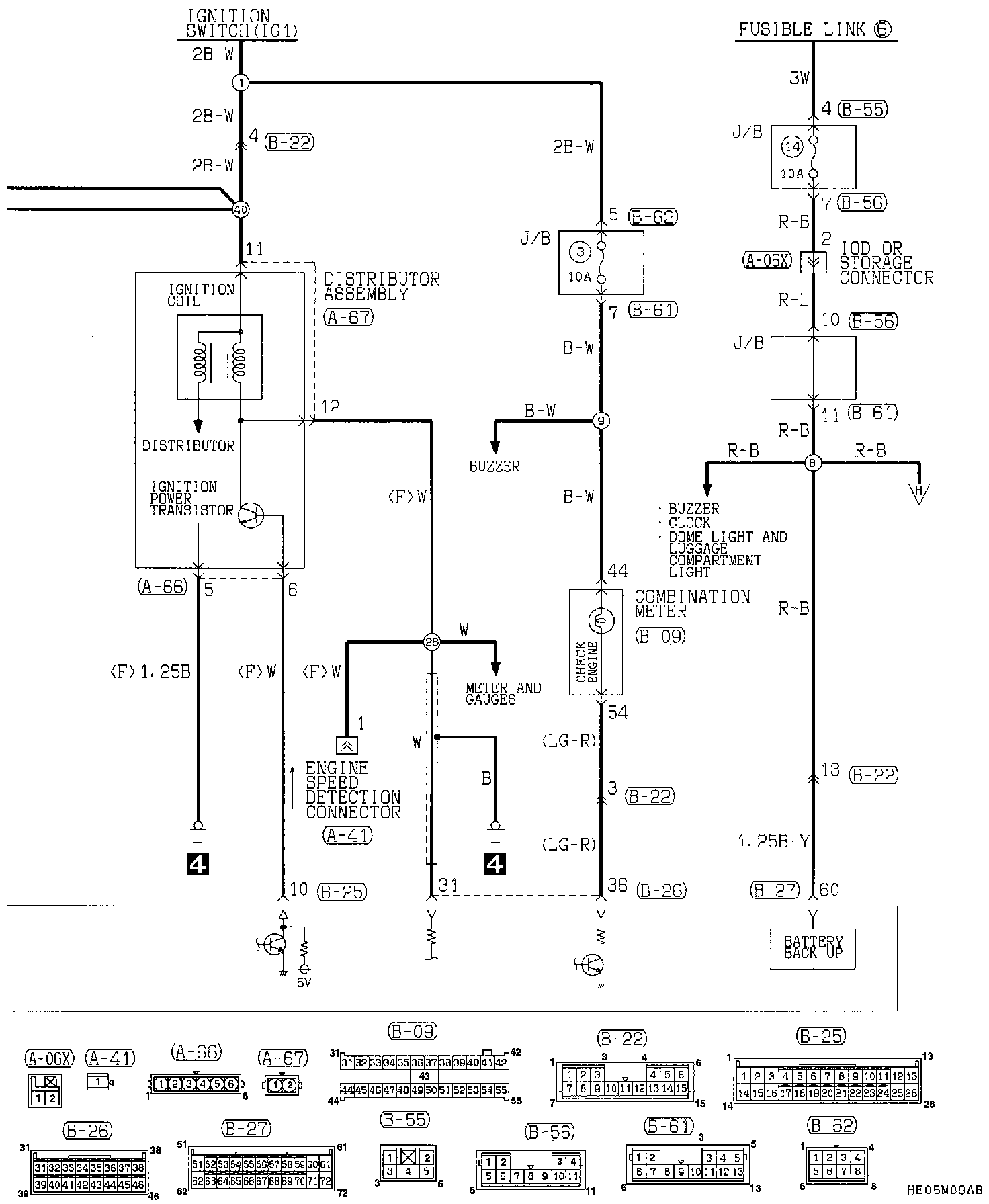

MFI System (Part 6 Of 6):
