OBD-II - Main Monitor Diagnostic Procedures
NO.: TSB-96-13-012DATE: June, 1996
MODEL: 1996 Mirage
SUBJECT:
ADDITIONAL OBD-II MAIN MONITOR DIAGNOSTIC PROCEDURES- SERVICE MANUAL REVISION
TSB Revision TSB-96-13-012
PURPOSE
This bulletin introduces additional diagnostic procedures to follow after reading a diagnostic trouble code (DTC) relating to the OBD-II main monitor.
Write the TSB Revision number in the "TSB Revision Box" at the bottom of each affected service manual page.
AFFECTED VEHICLES
1996 Mirage.
AFFECTED SERVICE MANUAL
1993-96 Mirage, Vol. 1, Pages 13A-30, -32, -33, -34, -35, -171, -202, -204, -205, 206, -207, -284
1993-96 Mirage Service Manual, Vol. 1 Page 13A-30

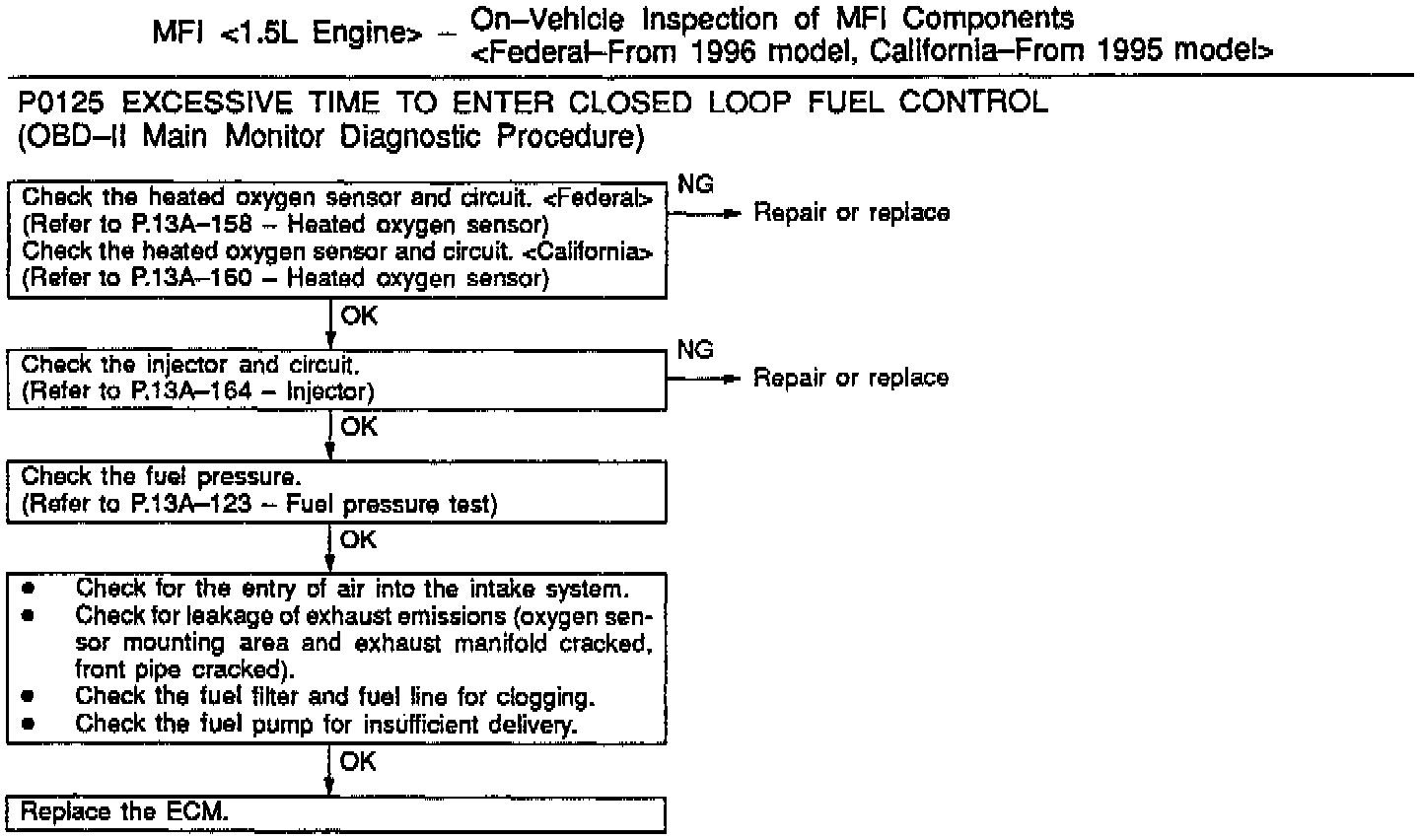

Probable cause items were added to the chart on DTC P0125.

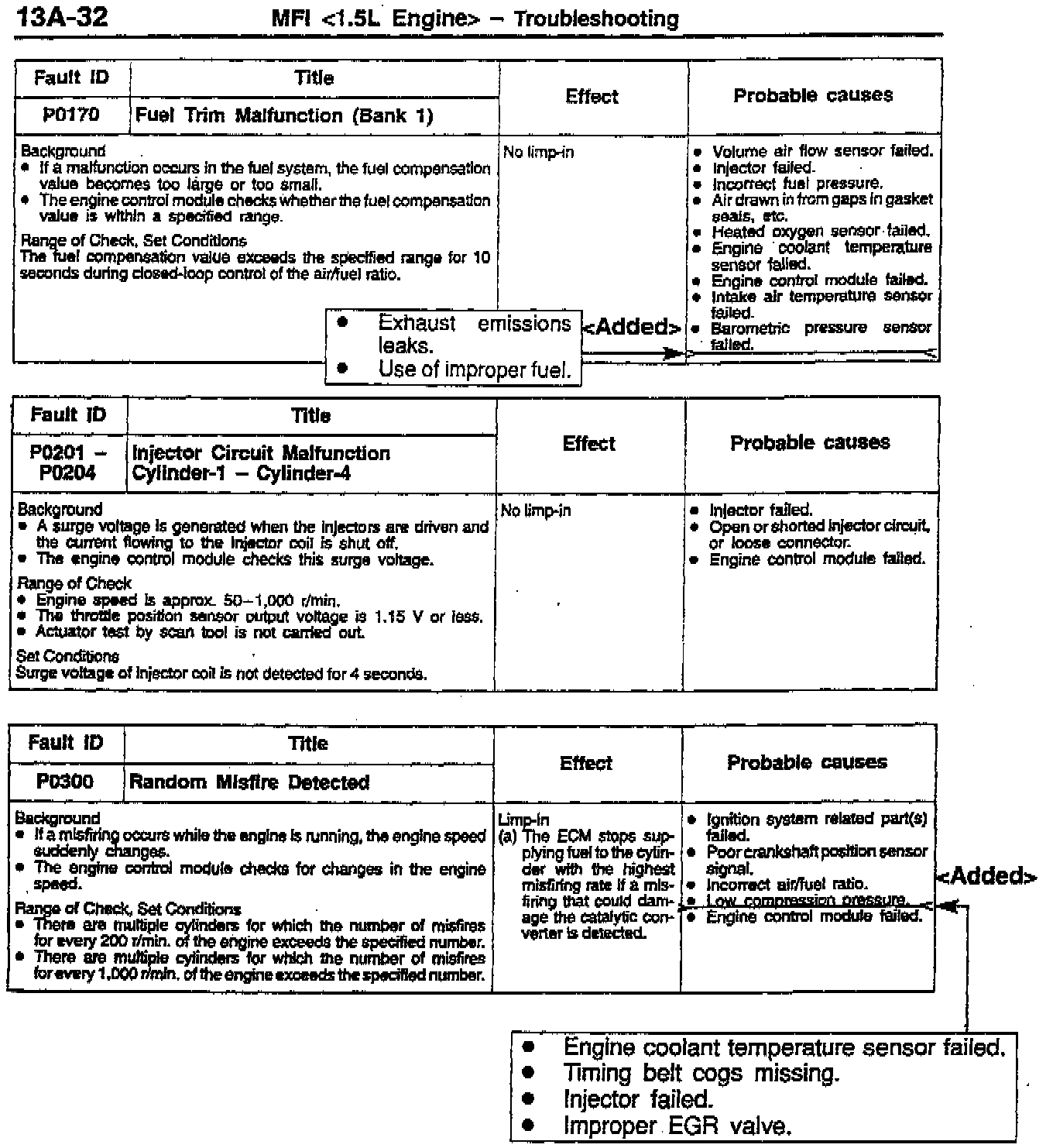

1993-96 Mirage Service Manual, Vol. 1 Page 13A-32

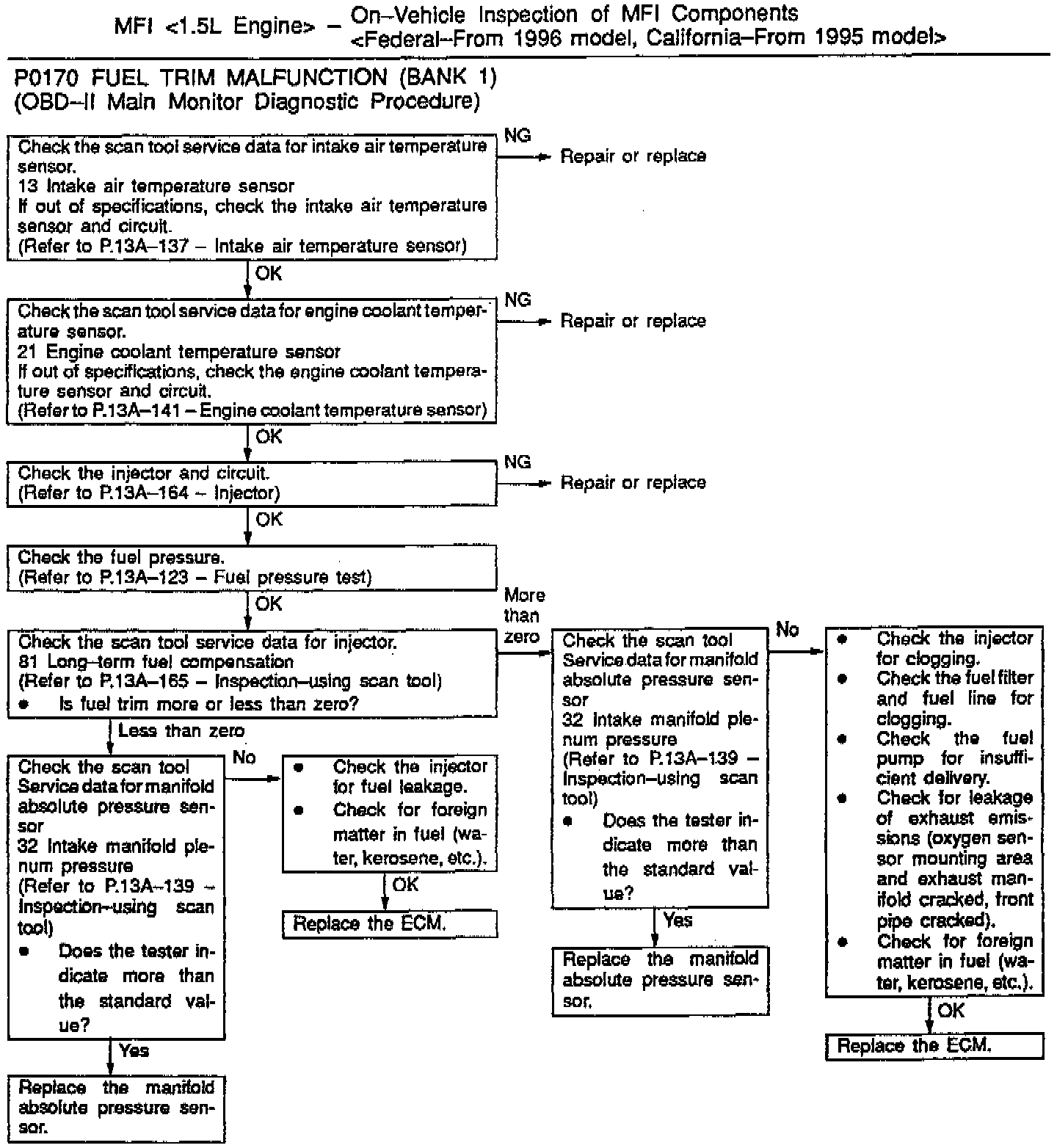

Probable cause items were added to the chart on DTC P0170 and DTC P0300.
1993-96 Mirage Service Manual, Vol 1, Page 13A-33
Probable cause items were added to the chart on DTC P0301-P0304.

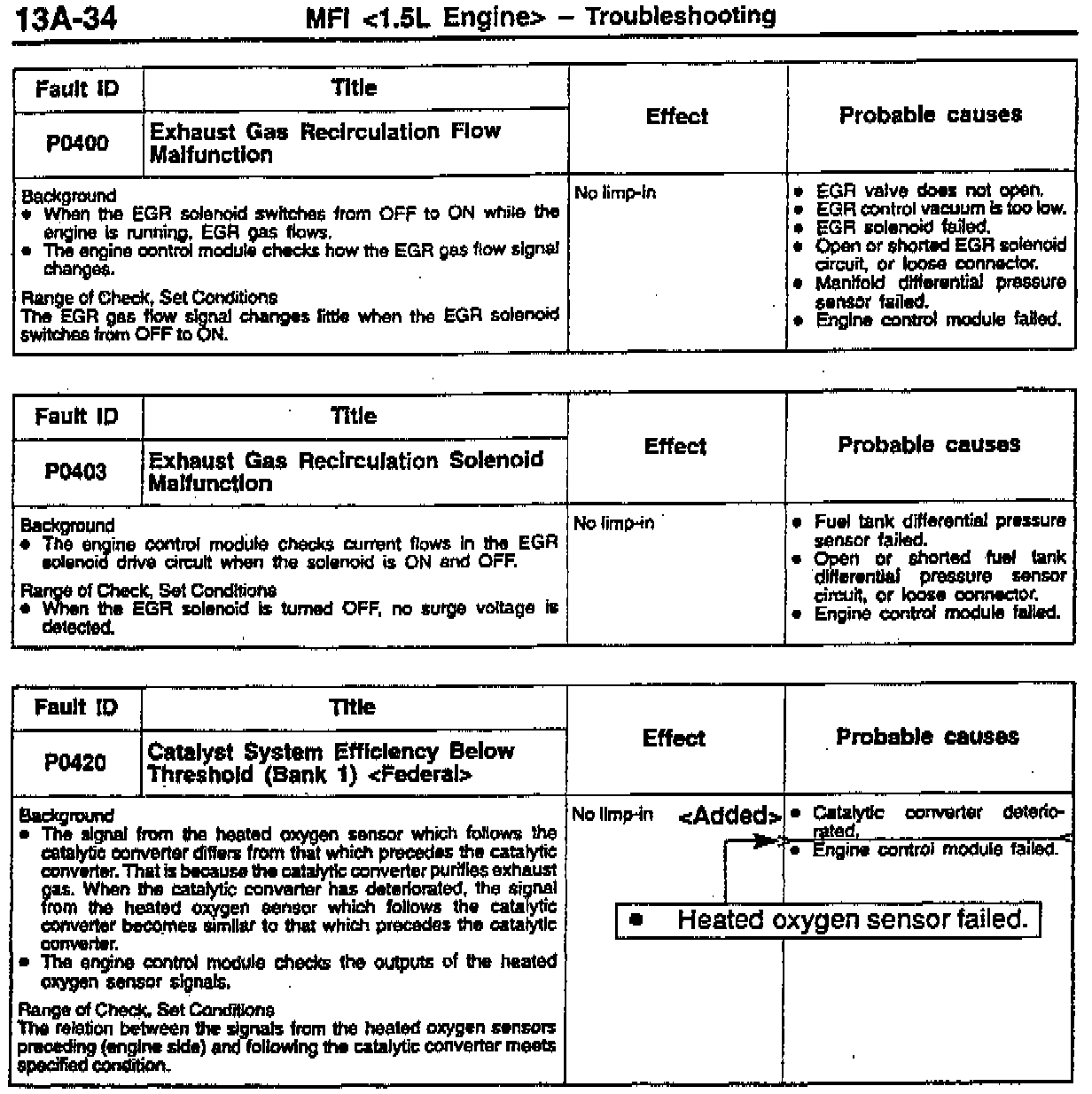

1993-96 Mirage Service Manual, Vol. 17 Page 13A-34

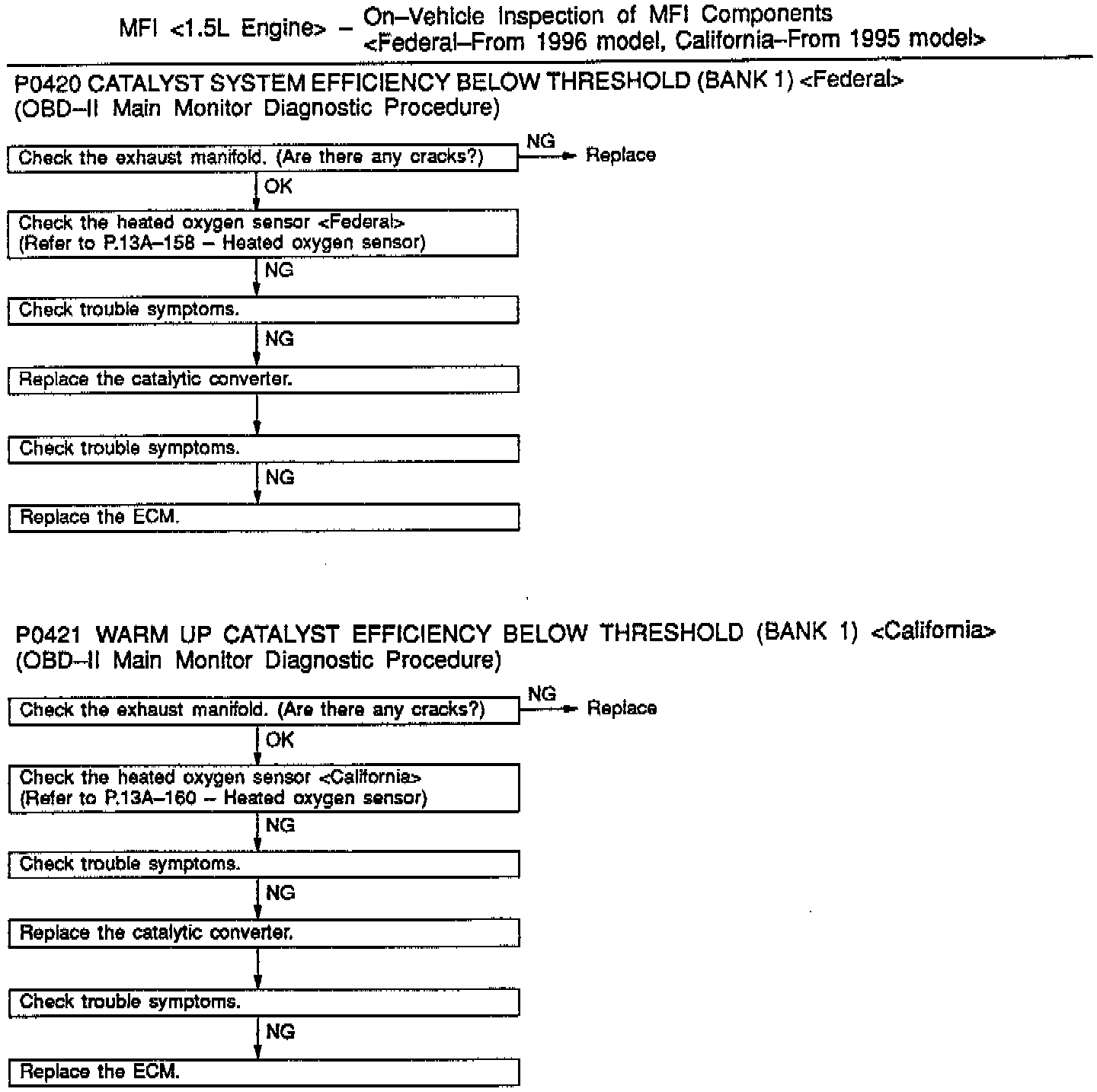

Probable cause item was added to the chart on DTC P0420.

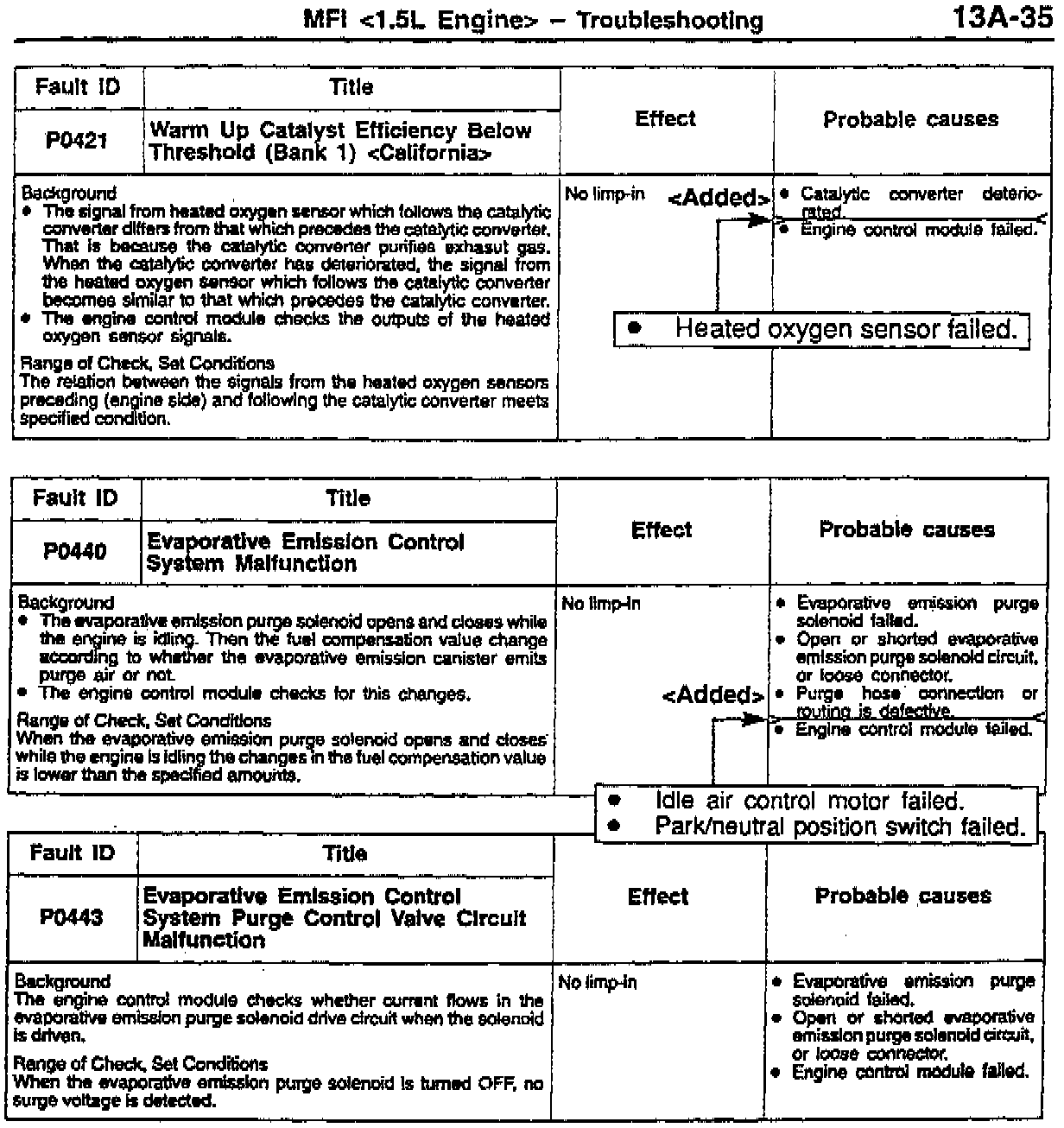

1993-96 Mirage Service Manual, Vol. 1, Page 13A-35
Probable cause item was added to the chart on DTC PO440.
1993-96 Mirage Service Manual, Vol. 1, Page 13A-171
Add the Diagnostic Trouble Codes listed. Each one of these is detailed in this bulletin.

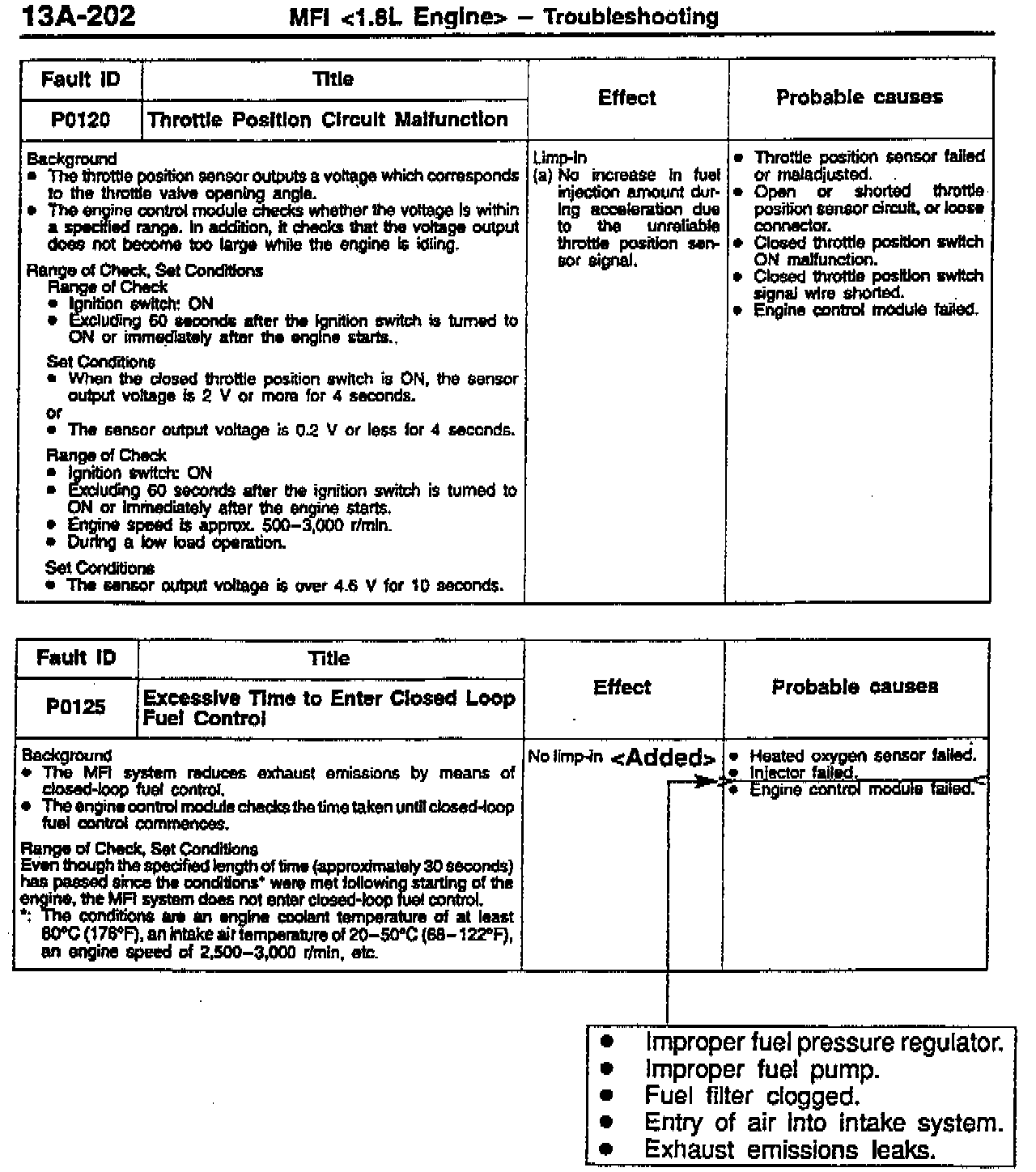

1993-96 Mirage Service Manual, Vol. 1, Page 13A-202
Probable cause items were added to the chart on DTC P0125.

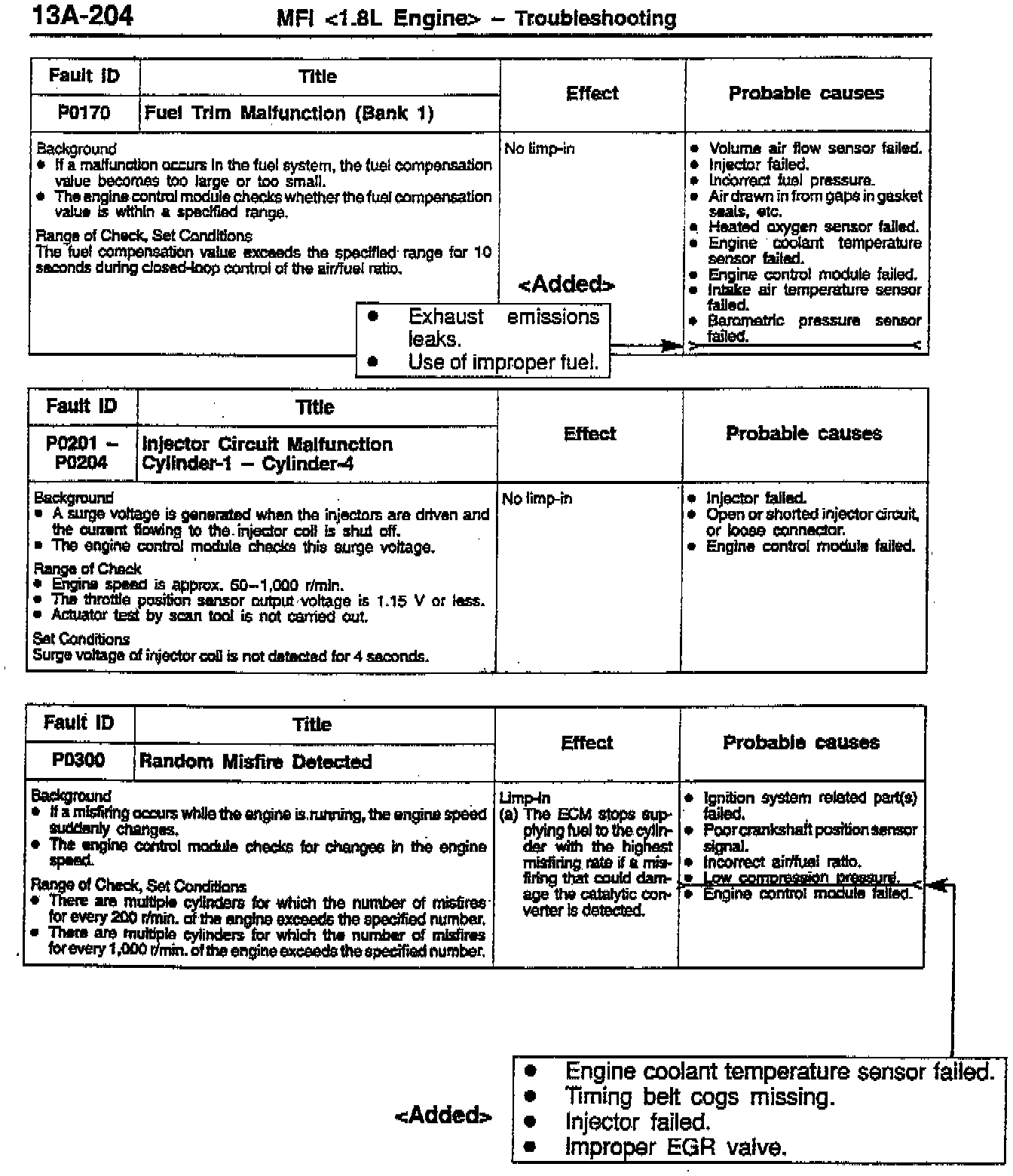

1993-96 Mirage Service Manual, Vol. 1, Page 13A-204
Probable cause items were added to the charts on DTC P0170 and DTC P0300.

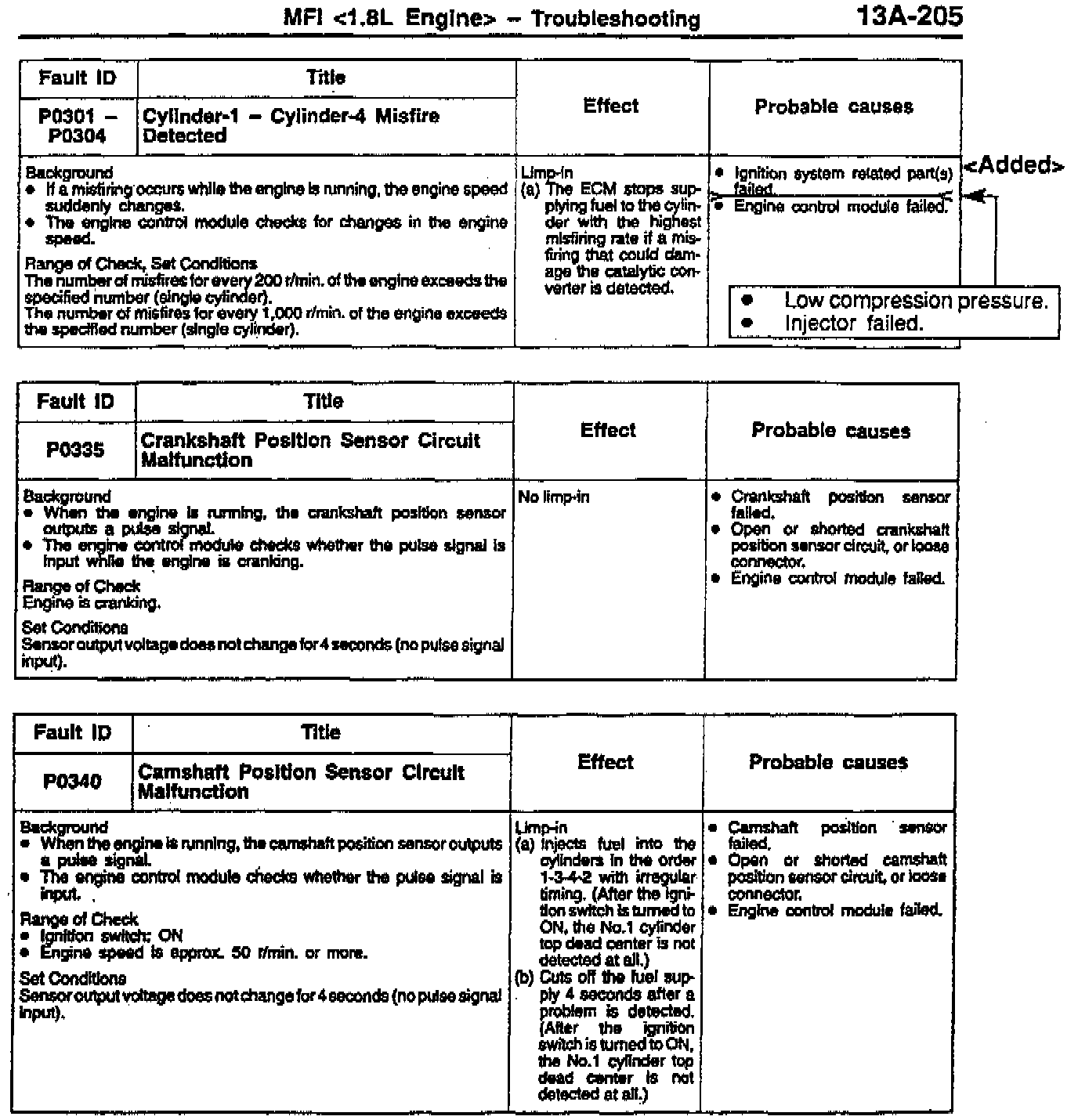

1993-96 Mirage Service Manual Vol. 1, Page 13A-205

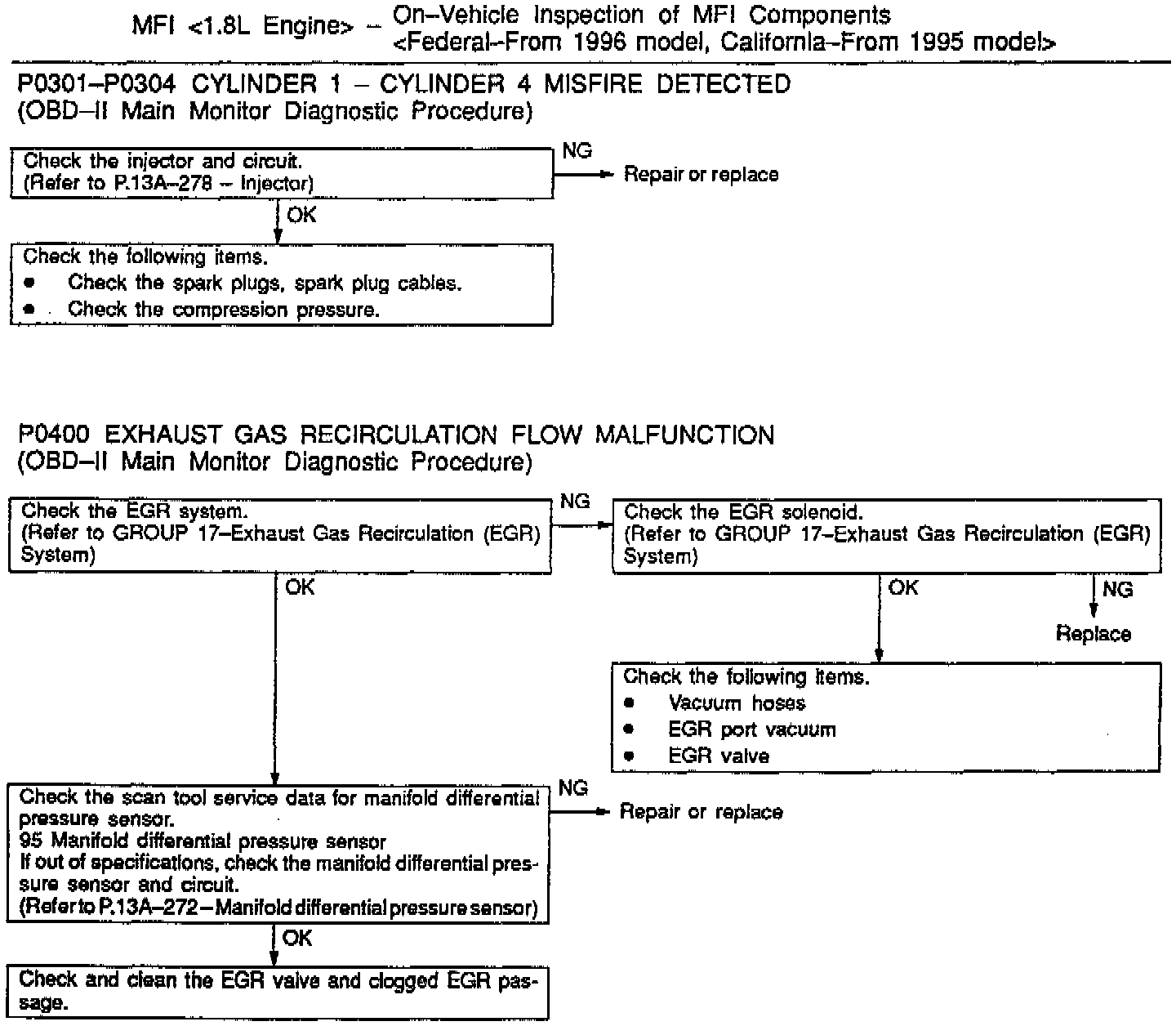

Probable cause items were added to the chart on DTC P0301-P0304.

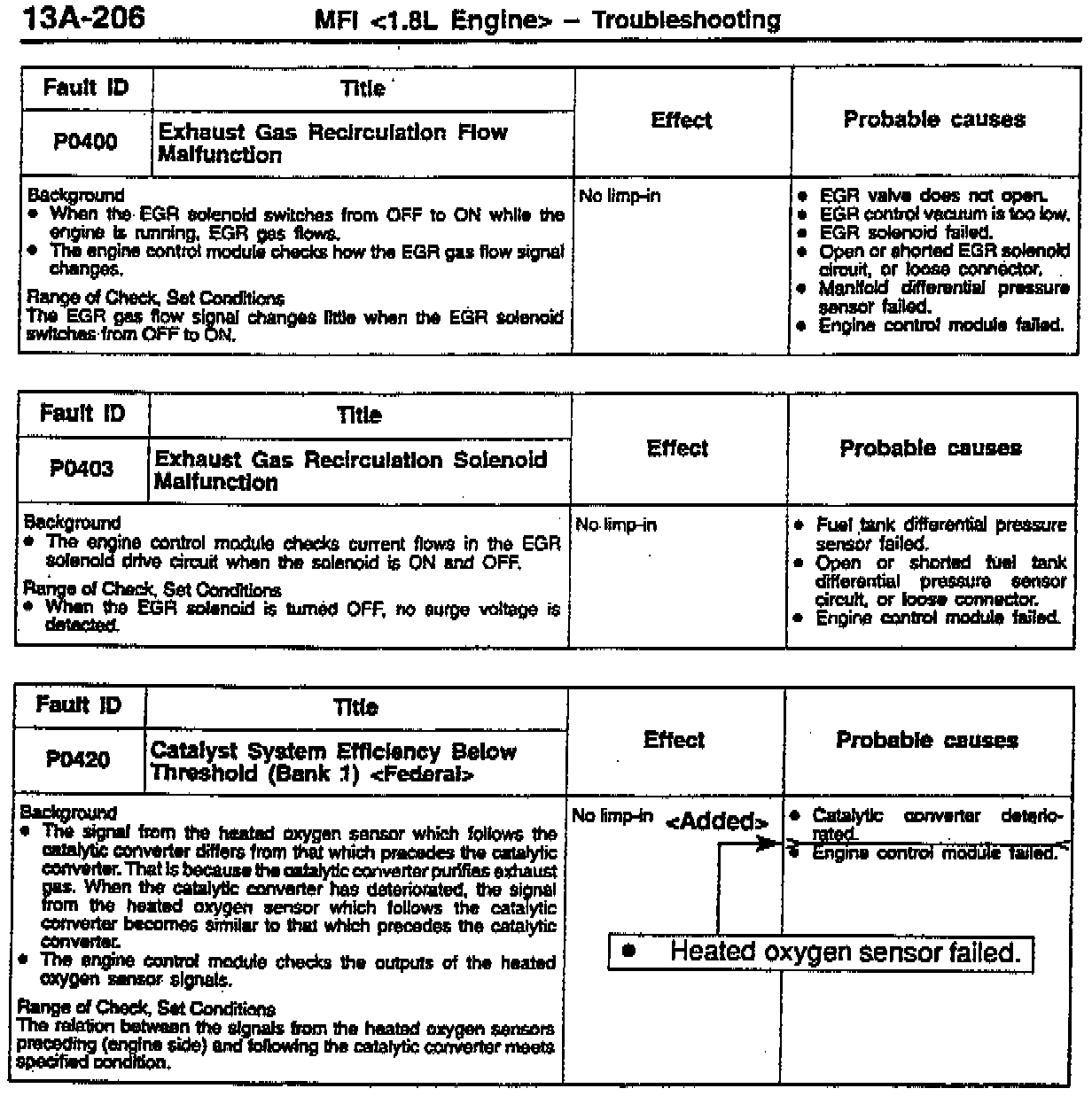

1993-96 Mirage Service Manual, Vol. 1, Page

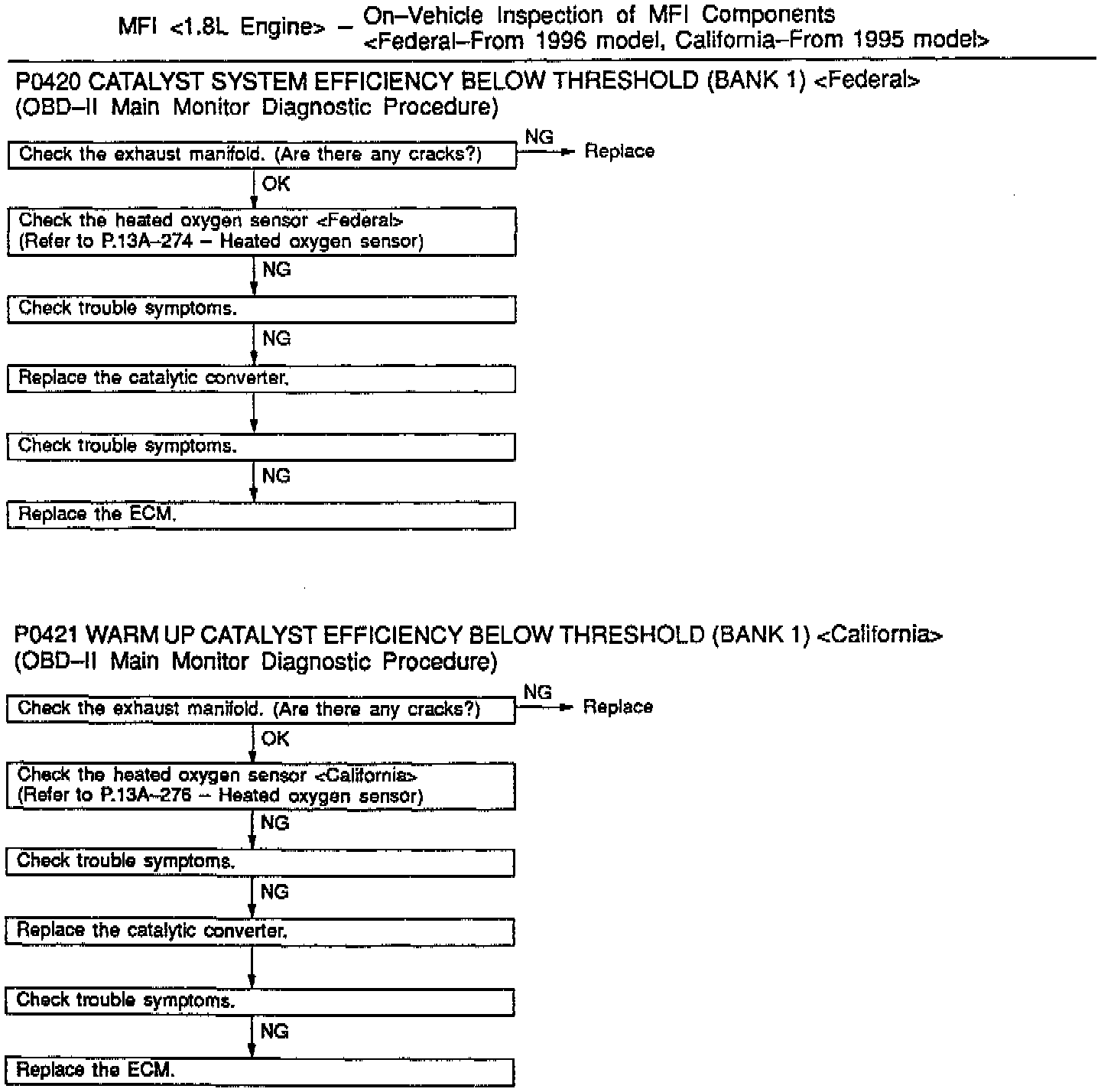

Probable cause item was added to the chart on DTC P0420.

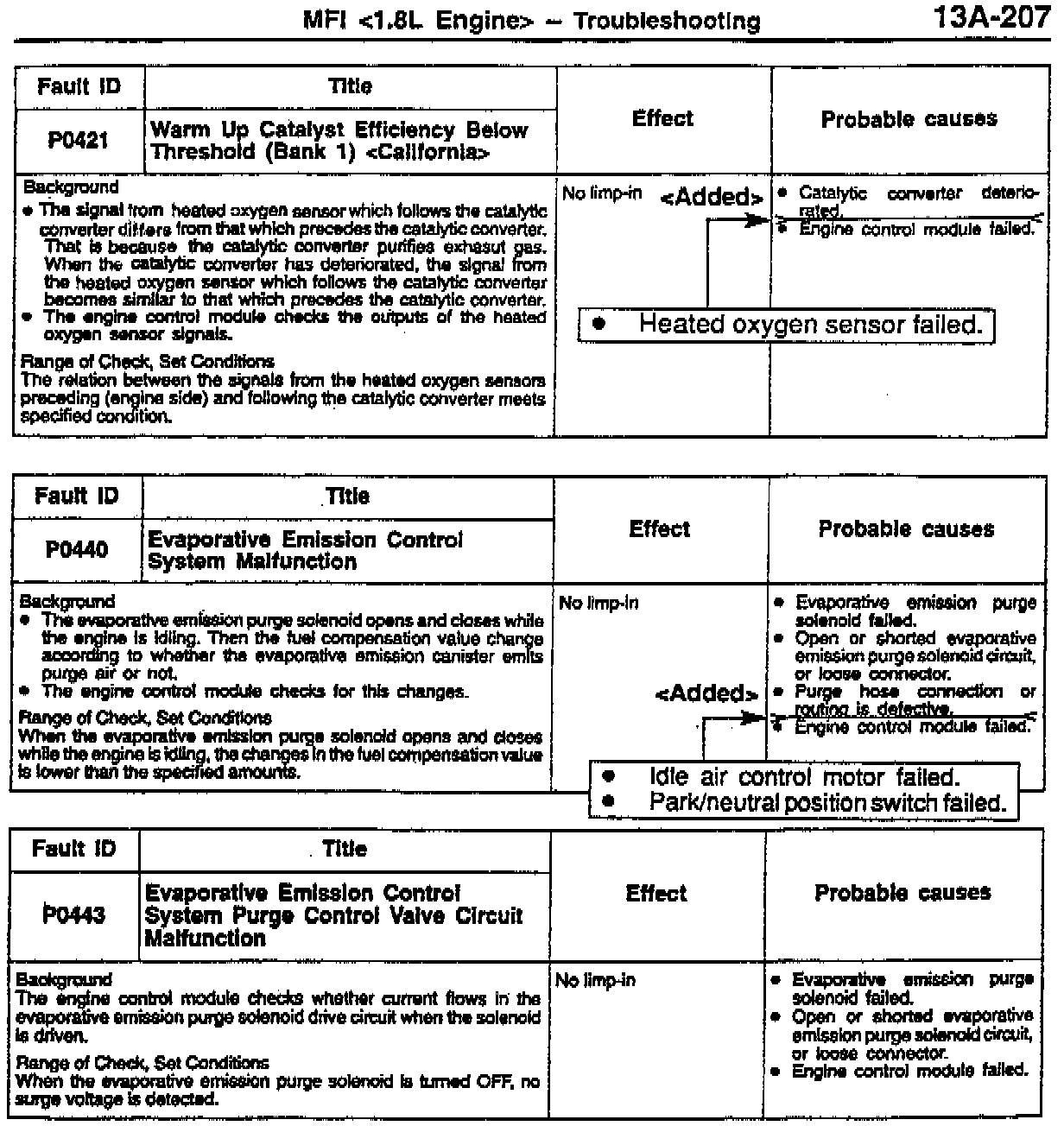

1993-96 Mirage Service Manual Vol. 1, Page 13A-207

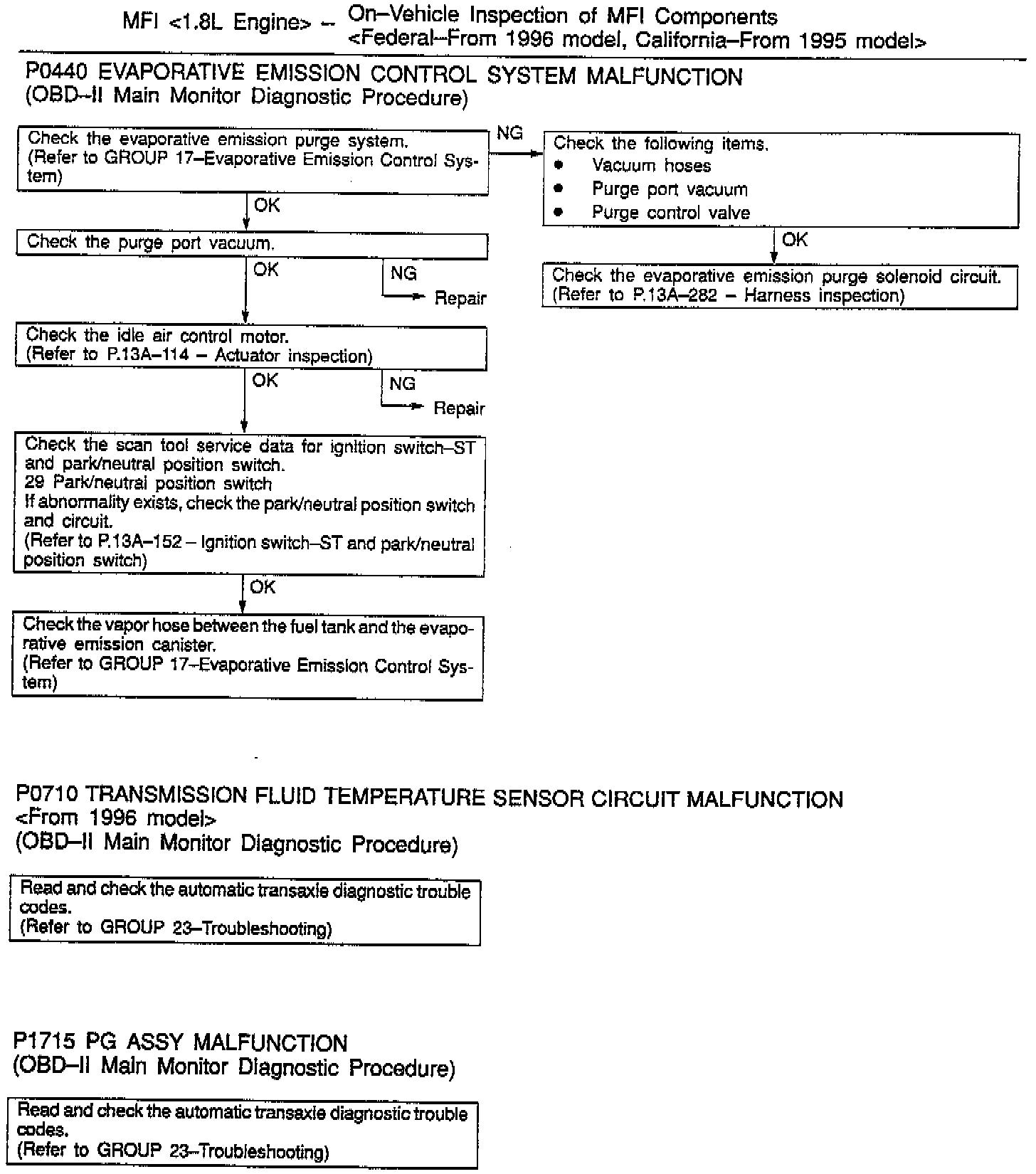

Probable cause items were added to the chart on DTC P0440.

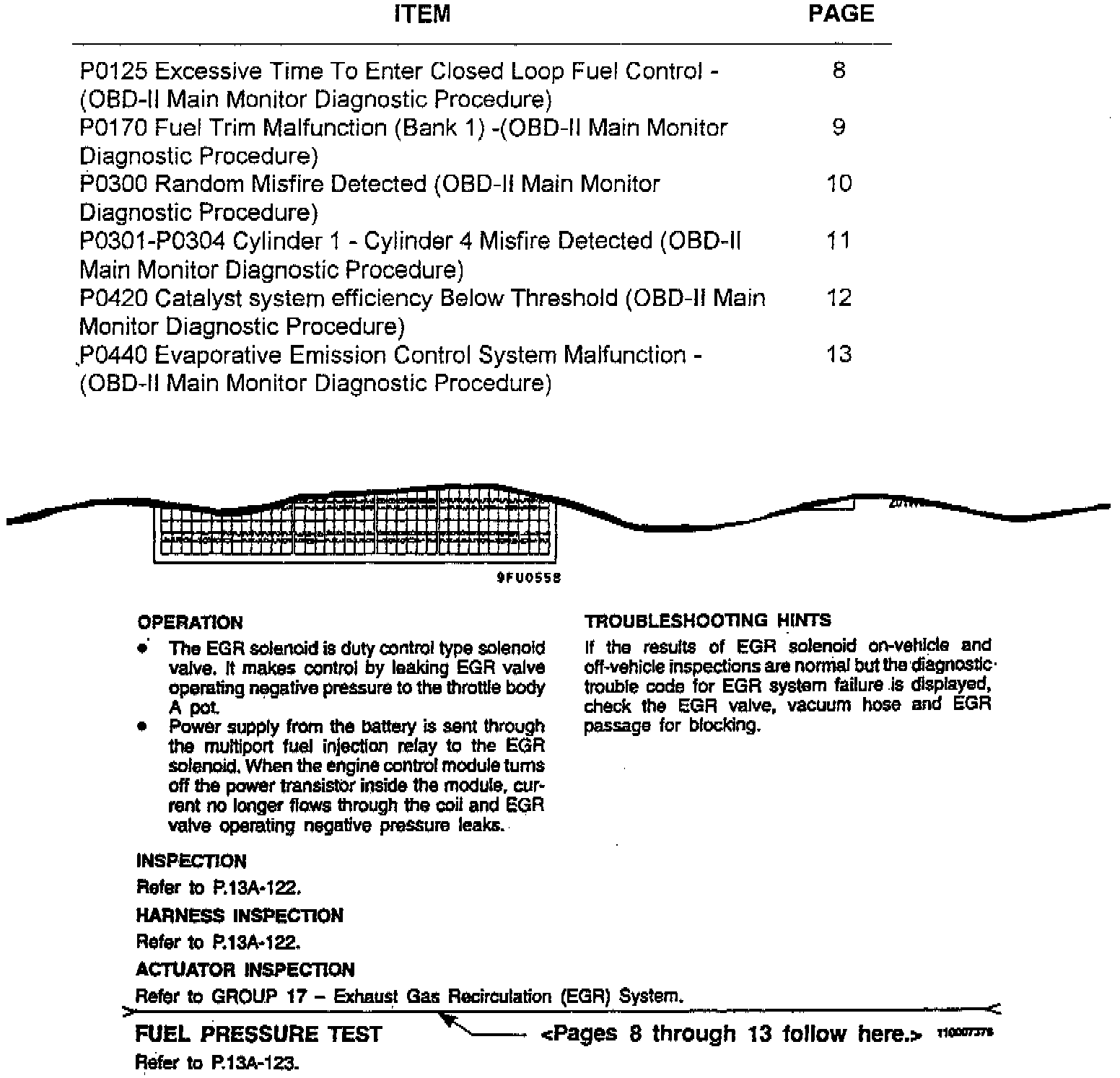

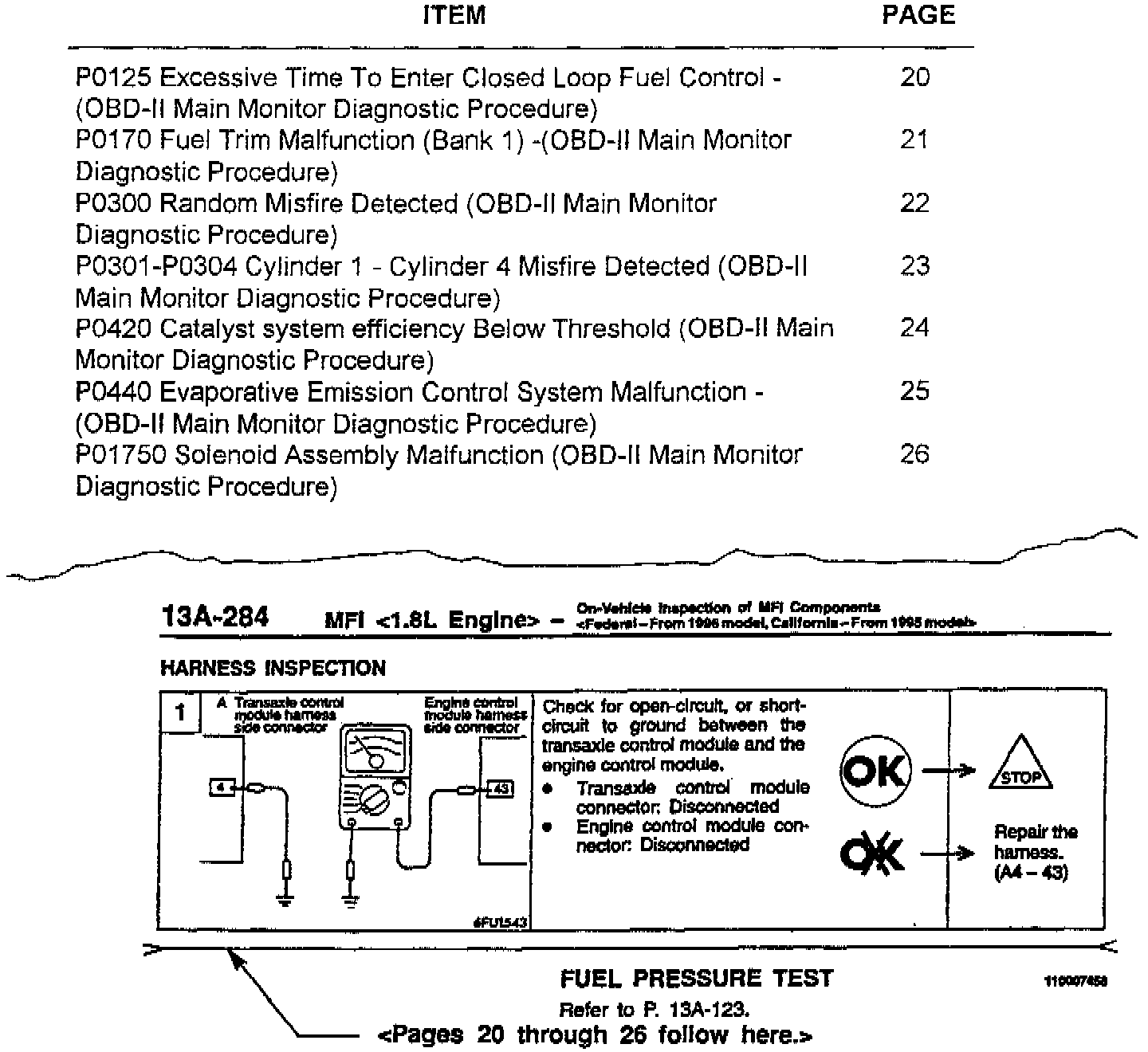

1993-96 Mirage Service Manual, Vol. 1, Page 13A-284
Add the Diagnostic Trouble Codes listed. Each one of these is detailed in this bulletin.
