Without Scan Tool

ERASING DIAGNOSTIC TROUBLE CODES WHEN NOT USING THE SCAN TOOL

CAUTION: When repairs are completed, the diagnostic trouble code memory should be erased. When the ABS-ECU function is stopped, the diagnostic trouble code memory cannot be erased.

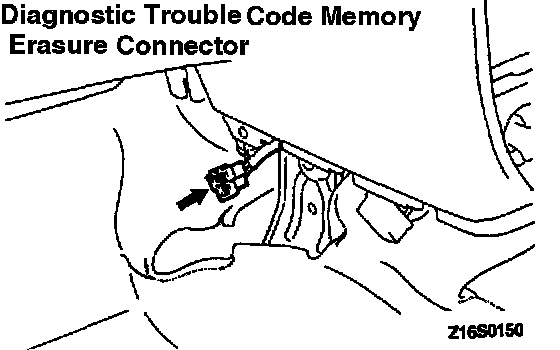

(1) After connecting the diagnostic trouble code memory erasure connector two terminals, turn the ignition key to ON.
At this time, the valve relay will turn OFF, and the ABS warning light will illuminate.

(2) After approximately 7 seconds or more has passed, turn the ignition key to OFF.
(3) Disconnect the diagnostic trouble code memory erasure connector two terminals and turn the ignition key back to ON.
At this point in time, the erasure of one diagnostic trouble code has been completed.
