Heated Glass Element Relay: Testing and Inspection

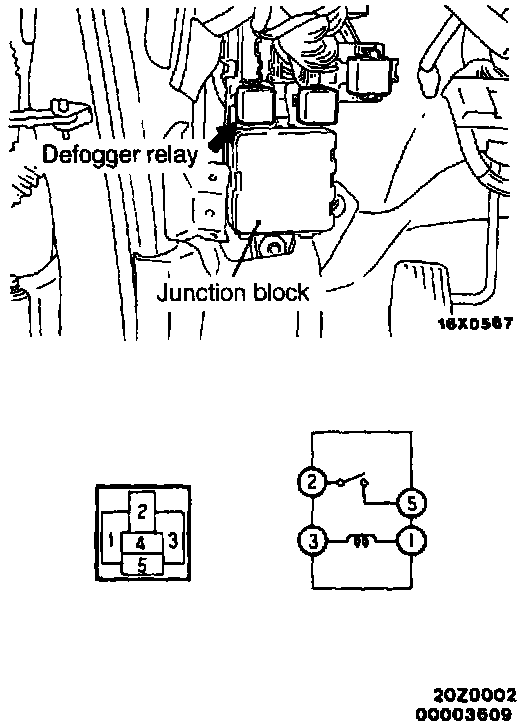

Defogger Relay Continuity Check:

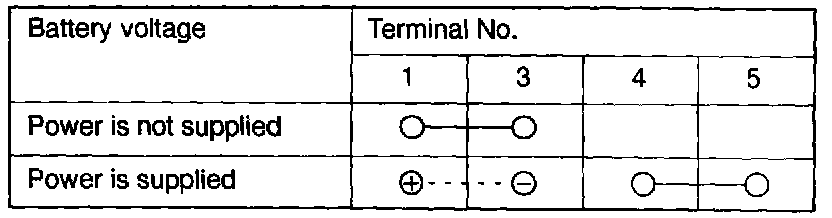

Defogger Relay Continuity Check Table:
