Symptom Related Diagnostic Procedures

INSPECTION CHART FOR TROUBLE SYMPTOMS
Get an understanding of the trouble symptoms and check according to the inspection procedure chart.

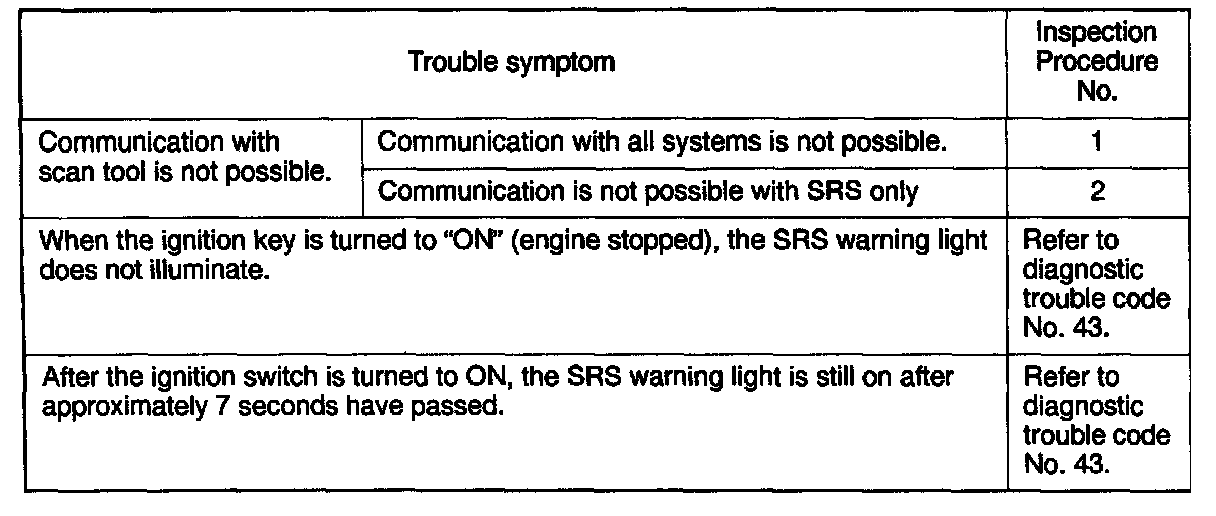

INSPECTION CHART FOR TROUBLE SYMPTOMS

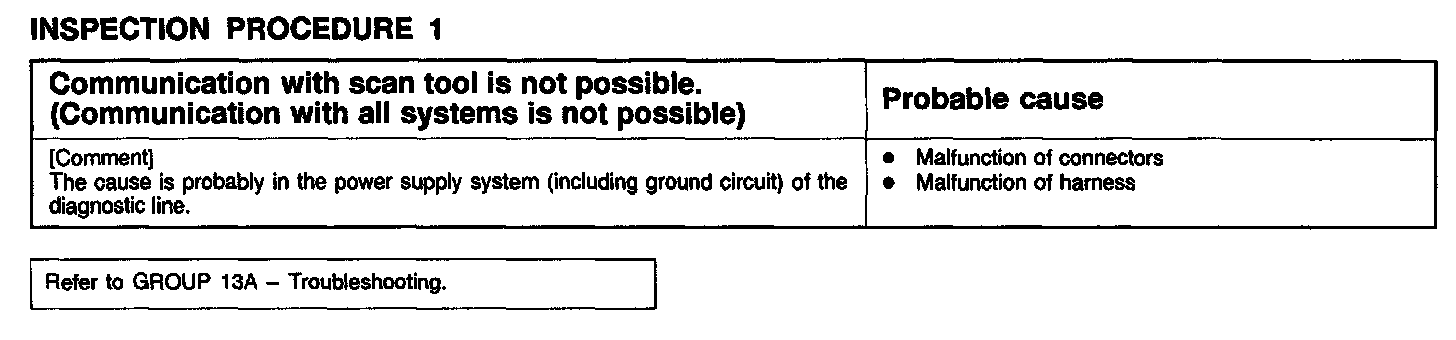

INSPECTION PROCEDURE 1

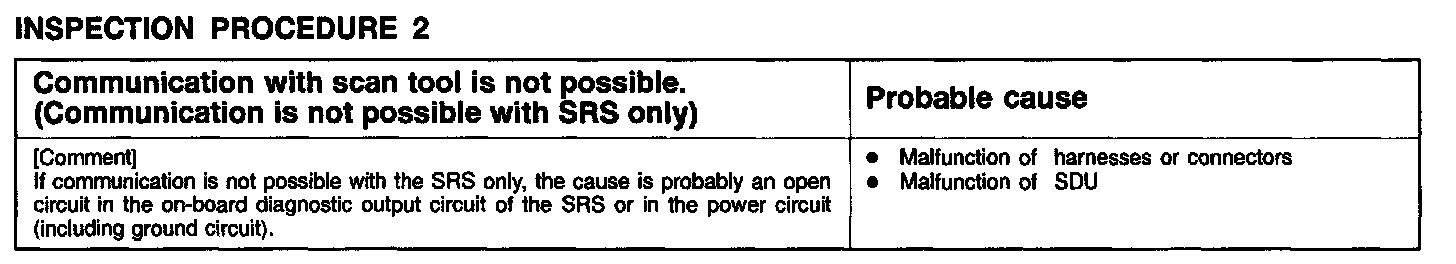

INSPECTION PROCEDURE 2





1. Turn the ignition key to the "LOCK" position, disconnect the negative battery cable and tape the terminal.

CAUTION: Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

2. Remove the floor console assembly.
3. Remove the SDU connector lock by the following procedure.





Place a flat-tipped (-) screwdriver against the lock spring at the lock lever notch and push the spring toward the unit.

CAUTION: Do not use excessive force to raise the lock lever (green).

4. Disconnect the red 14-pin connector from the SDU.
5. Follow flow chart to diagnose

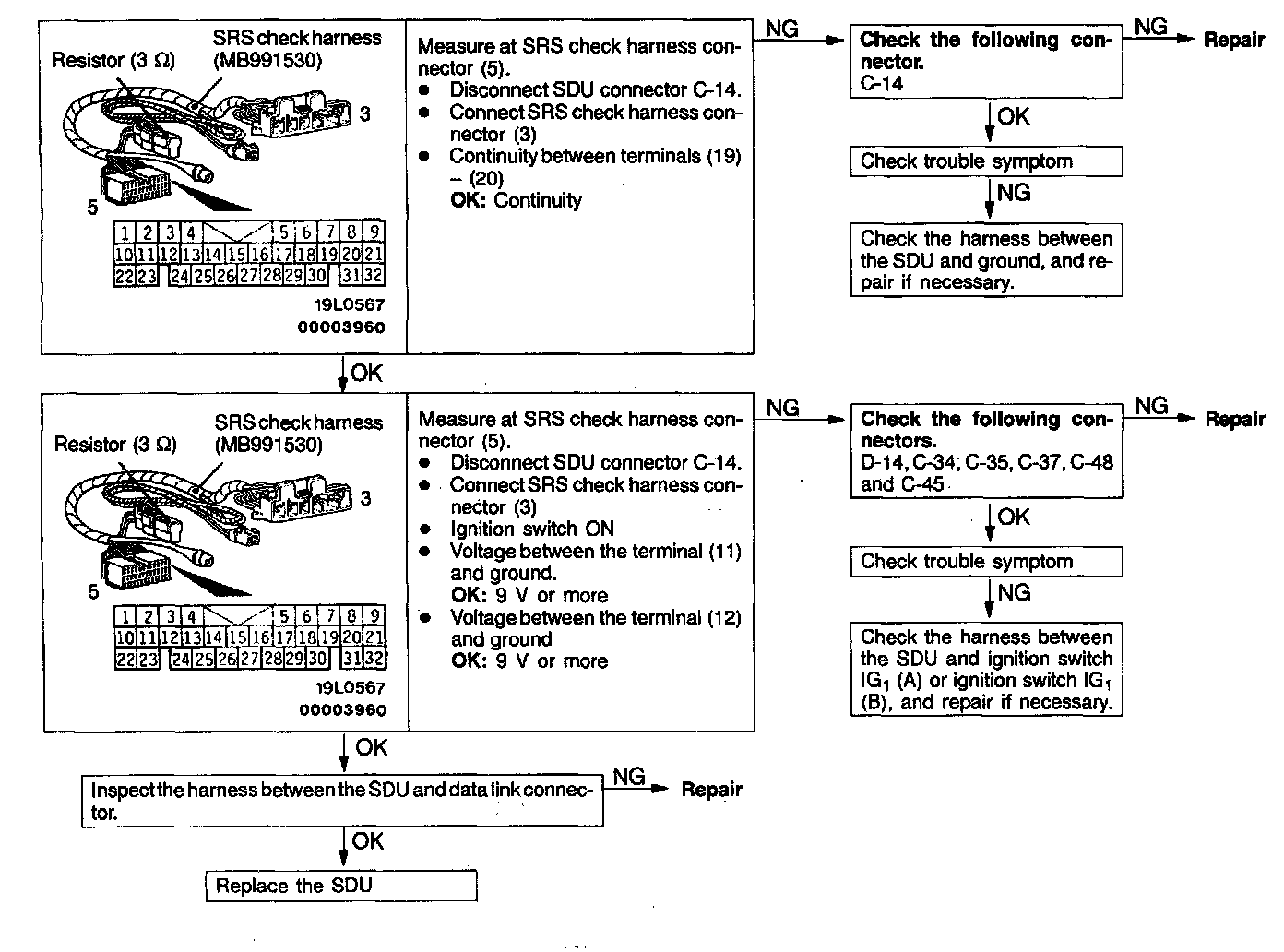

FLOW CHART
