Configuration Diagrams

CONFIGURATION DIAGRAMS

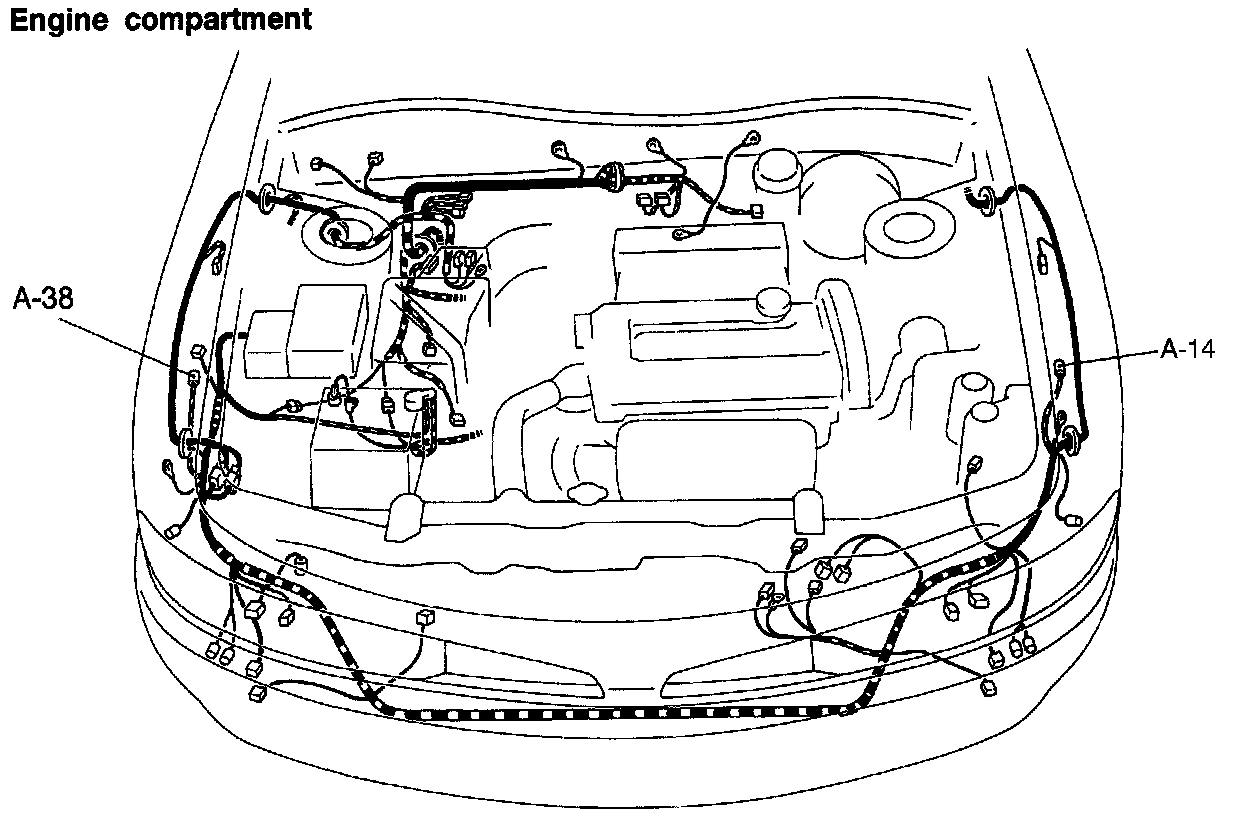

A-14 Front Impact Sensor (L.H.)
A-38 Front Impact Sensor (R.H.)

ENGINE COMPARTMENT

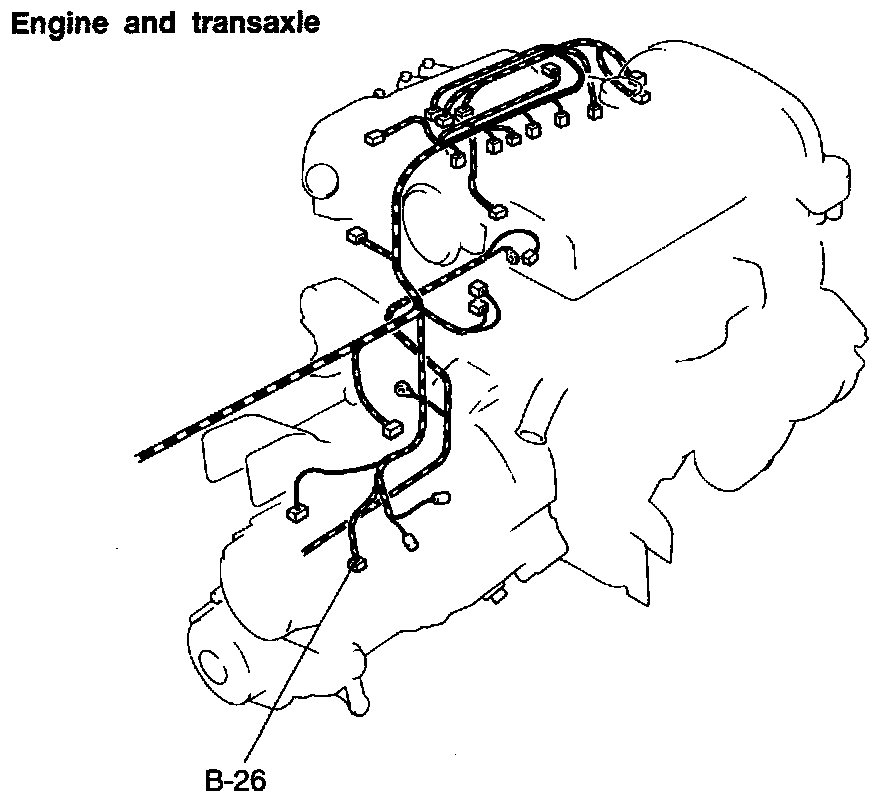

B-26 Park/Neutral Position Switch

ENGINE AND TRANSAXLE

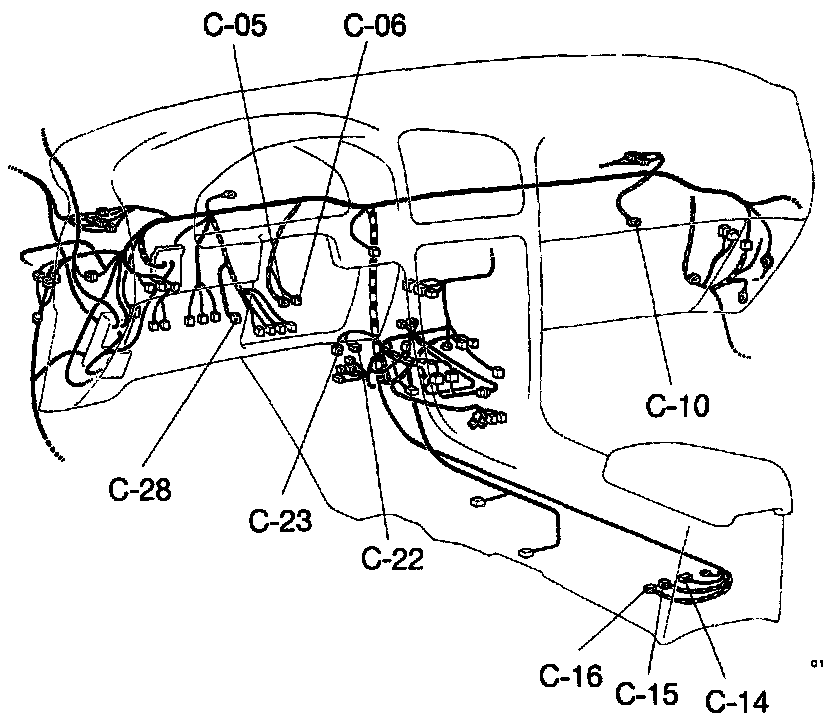

C-O5 Clock spring
C-06 Clock spring (Connector to SRS Diagnosis Unit)
C-10 Front passenger's air bag module (squib)
C-14 14-pin red connector to body wiring harness
(Connector to SRS Diagnosis Unit)
C-15 2-pin green connector
(Connector to SRS Diagnosis Unit)
C-16 2-pin red connector
(Connector to SRS Diagnosis Unit)
C-22 Date link connector (For scan tool)
C-23 Date link connector (For scan tool)
C-28 Ignition switch

DASH PANEL

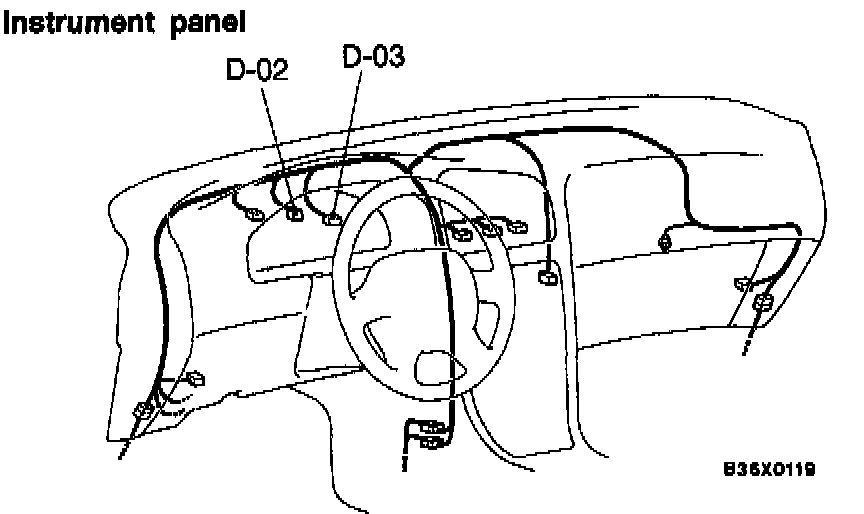

D-02 Combination meter (For SRS warning light)
D-03 Combination meter (For SRS warning light)

INSTRUMENT PANEL
