Fuel Gauge Unit and Pump Assembly Replacement

FUEL GAUGE UNIT AND PUMP ASSEMBLY REPLACEMENT


1. Remove the rear seat cushion.

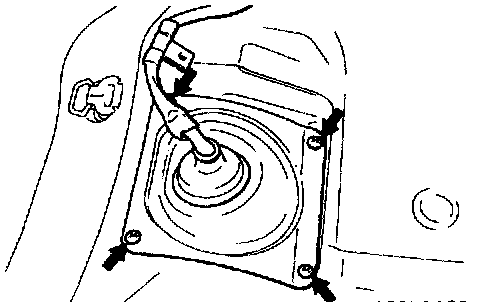

2. Remove the protector.
3. Disconnect the connector from the fuel gauge unit and pump assembly, and then remove the fuel gauge unit.
4. When installing the fuel gauge unit and pump assembly, tilt the float at the end to the left and insert into the fuel tank.

NOTE:
As there is a reservoir cap inside the fuel tank, if the fuel gauge unit and pump assembly is tilted to the right and inserted, the fuel gauge unit and pump assembly will touch the reservoir cap.

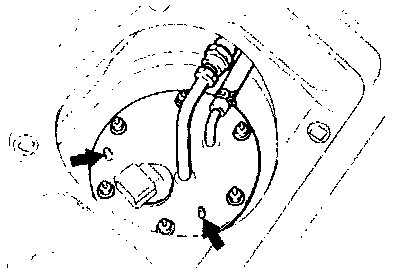

5. Align the packing positioning projections (locations indicated by arrows) with the holes in the fuel gauge unit and pump assembly.
