Accelerator Pedal: Service and Repair

Removal Steps
1. Accelerator cable connection
2. Cotter pin
3. Washing
4. Accelerator pedal pin
5. Bushing
6. Spring
7. Accelerator pedal arm
8. Accelerator pedal bracket
9. Accelerator pedal stopper




Installation Service Point

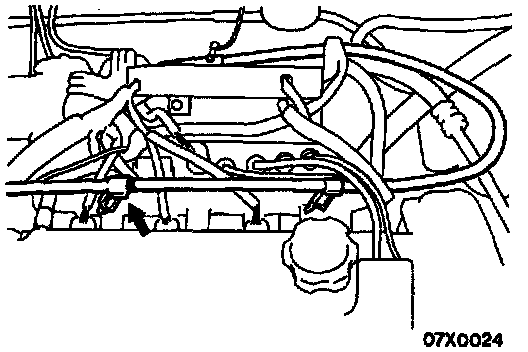

Install the accelerator cable so that the marking section is aligned with the clamp shown by the arrow.
