EVAP System - OBD-II Service Manual Revision
NO.: TSB-96-17-003DATE: October, 1996
MODEL: 1996 Galant
SUBJECT:
ADDITIONAL GENERAL OBD-II EVAPORATIVE
EMISSION CONTROL INFORMATION - SERVICE MANUAL REVISION
TSB Revision TSB-96-17-003
PURPOSE
This bulletin contains additional information about OBD-II EVAP operation and leak monitoring on 1996 California specification Galants. The new information explains the EVAP ventilation solenoid and related fuel vent valve. This information was omitted from the original manual.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1996 Galant (California Specification Vehicles)
AFFECTED SERVICE MANUAL
1996 Galant Service Manual, Volume 1, Page 17-41
SERVICE MANUAL REVISION

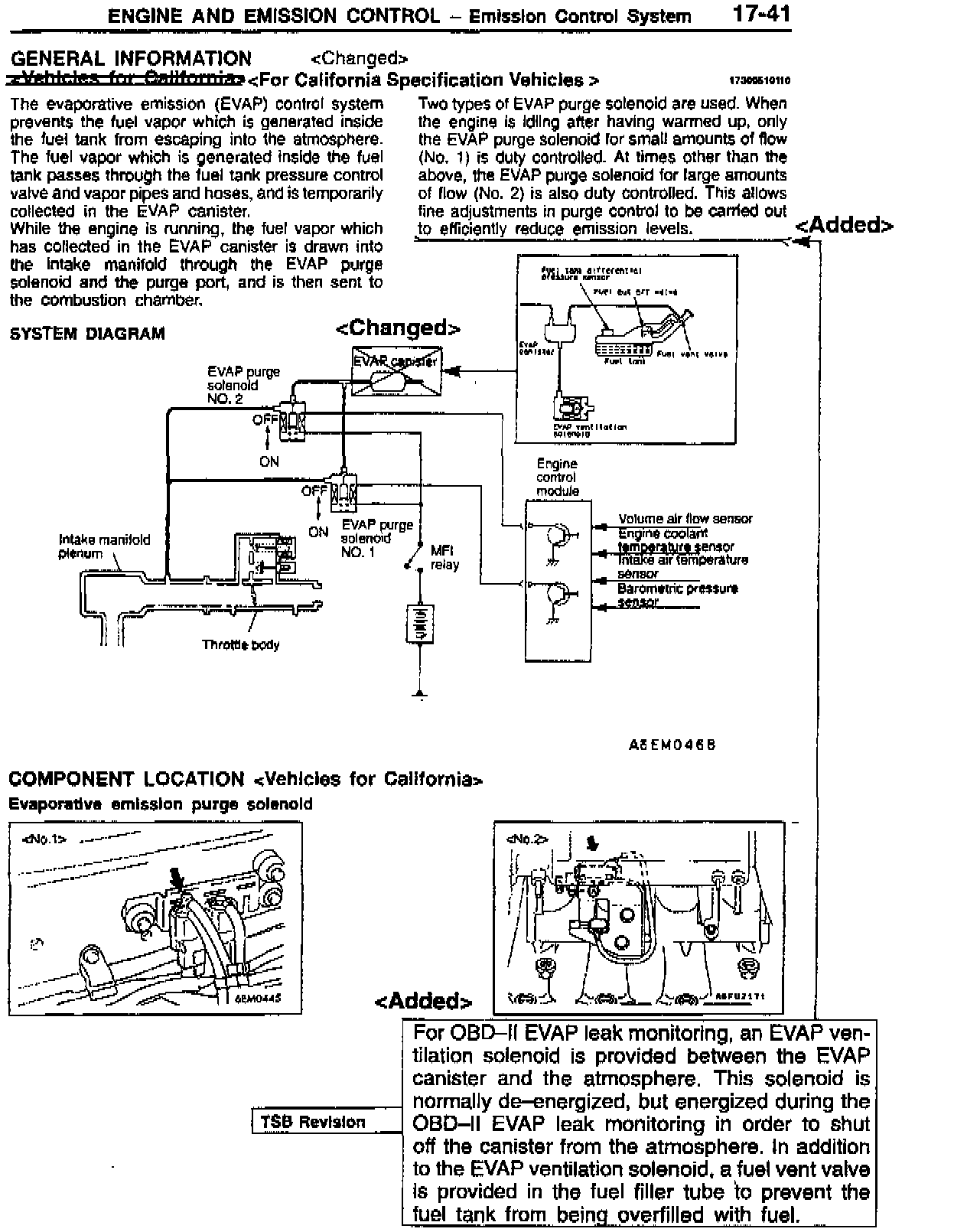

1996 Galant Service Manual Volume 1, Page 17-41
Add the new OBD-II EVAP operation and leak monitoring information as shown.
