Evaporative Emission Control Canister: Service and Repair

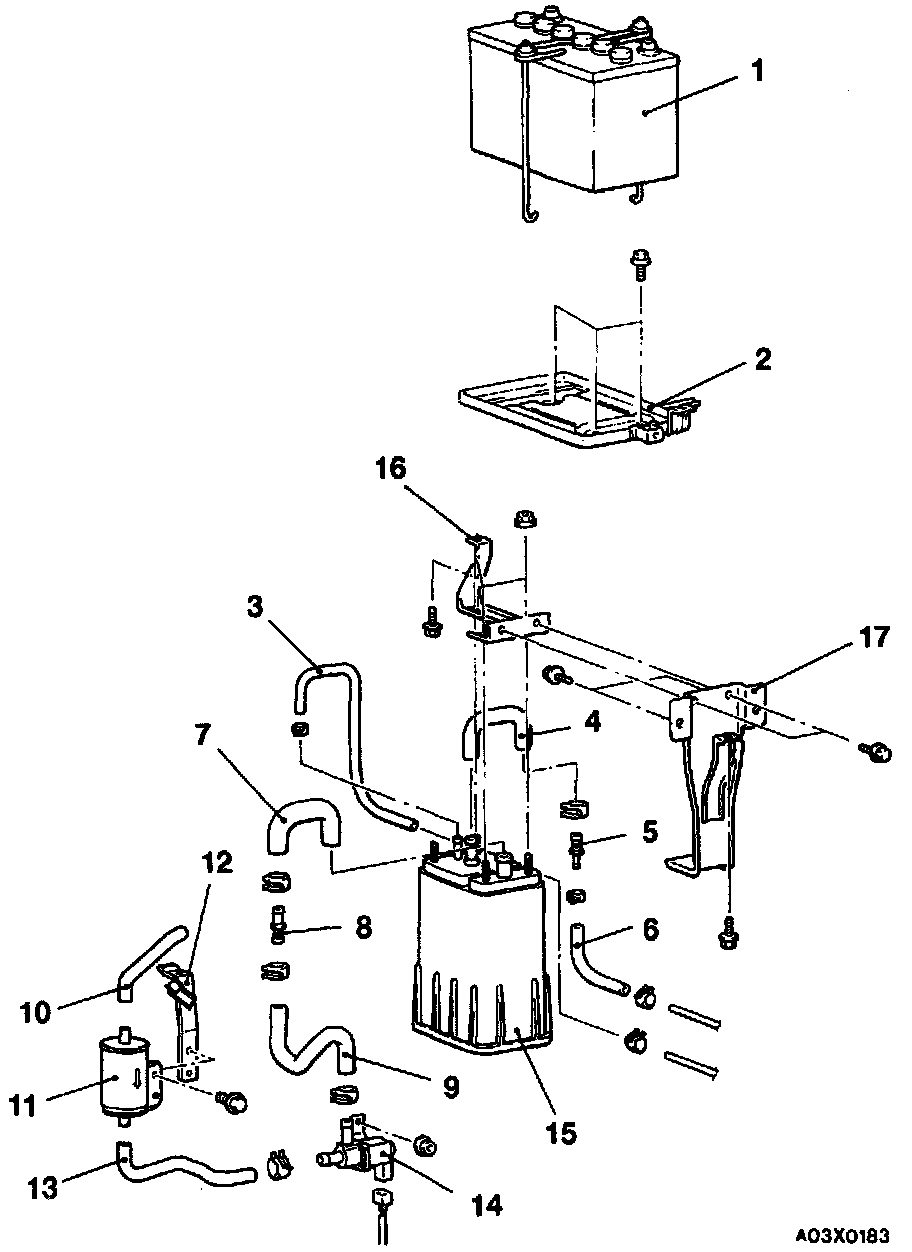

Removal steps
1. Battery
2. Battery tray
3. Vapor hose
4. Evaporative emission purge hose
5. Connector
6. Vapor hose
7. Vent hose
8. Connector
9. Vent Hose
10. Vent Hose
11. Air Filter
12. Hose Bracket
13. Vent Hose
14. Evaporative emission ventilation solenoid
15. Evaporative emission canister
16. Evaporative emission canister upper bracket
17. Evaporative emission canister bracket
