Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

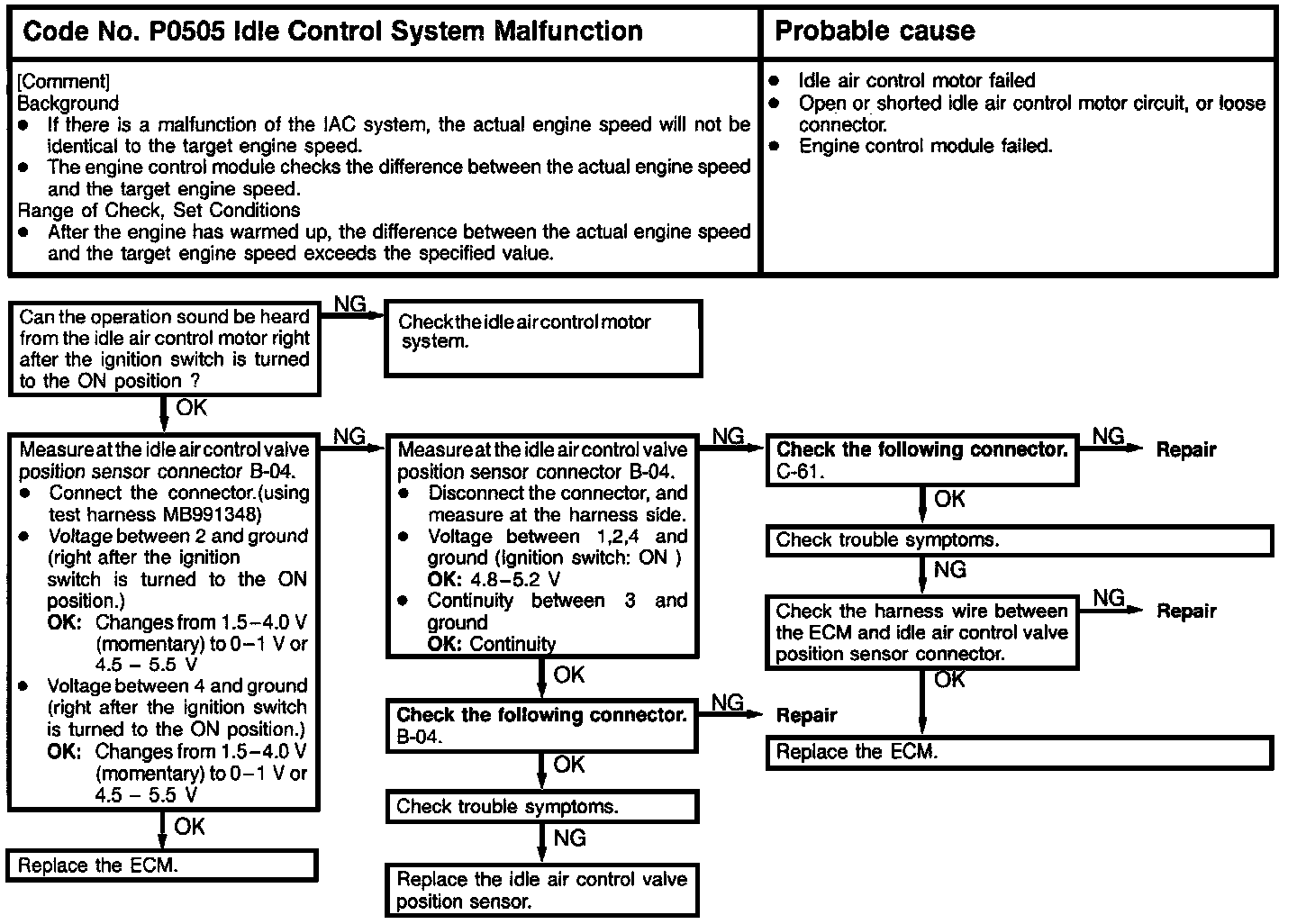

Use a stethoscope or long blade screwdriver to check if the sound of the idle air control motor operating can be heard immediately after the ignition switch is turned to "ON".





NOTE: If the motor operation cannot be heard, check the motor drive circuit and the idle air control motor.
