Connector and Ground Indicators

Connector/Ground Indications:





Connector/Grounding Indications

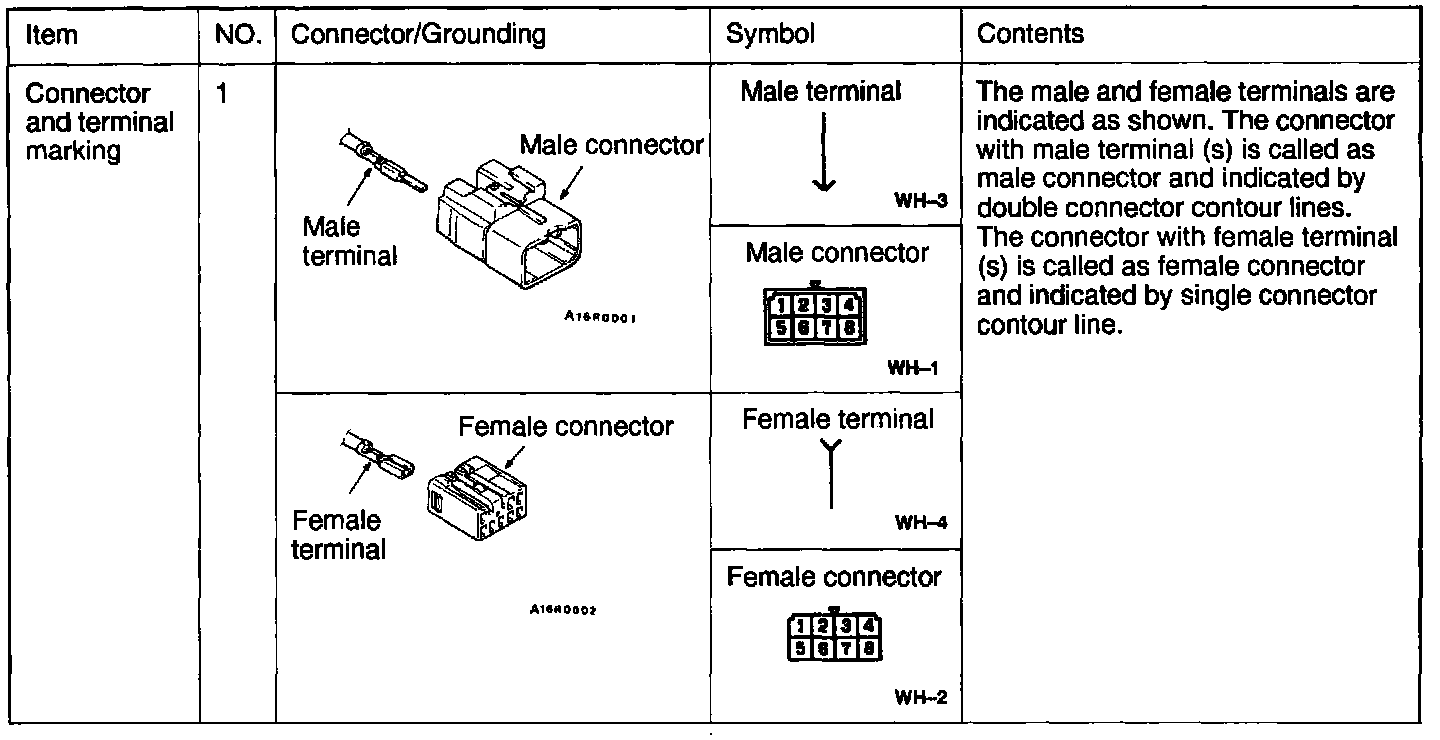

Connector And Terminal Marking:





Connector And Terminal Markings

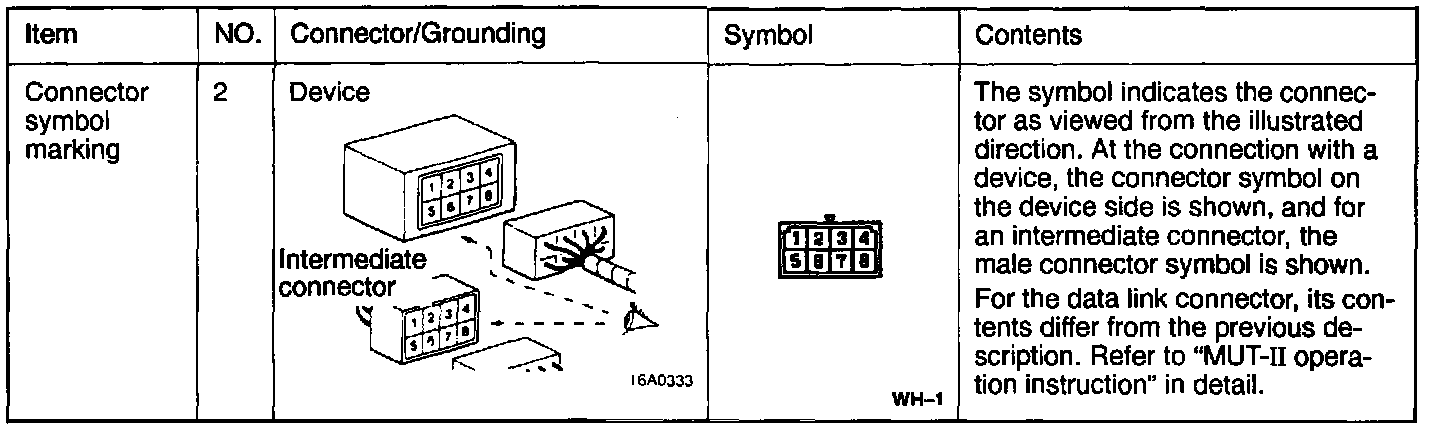

Connector Symbol Marking:





Connector Symbol Markings

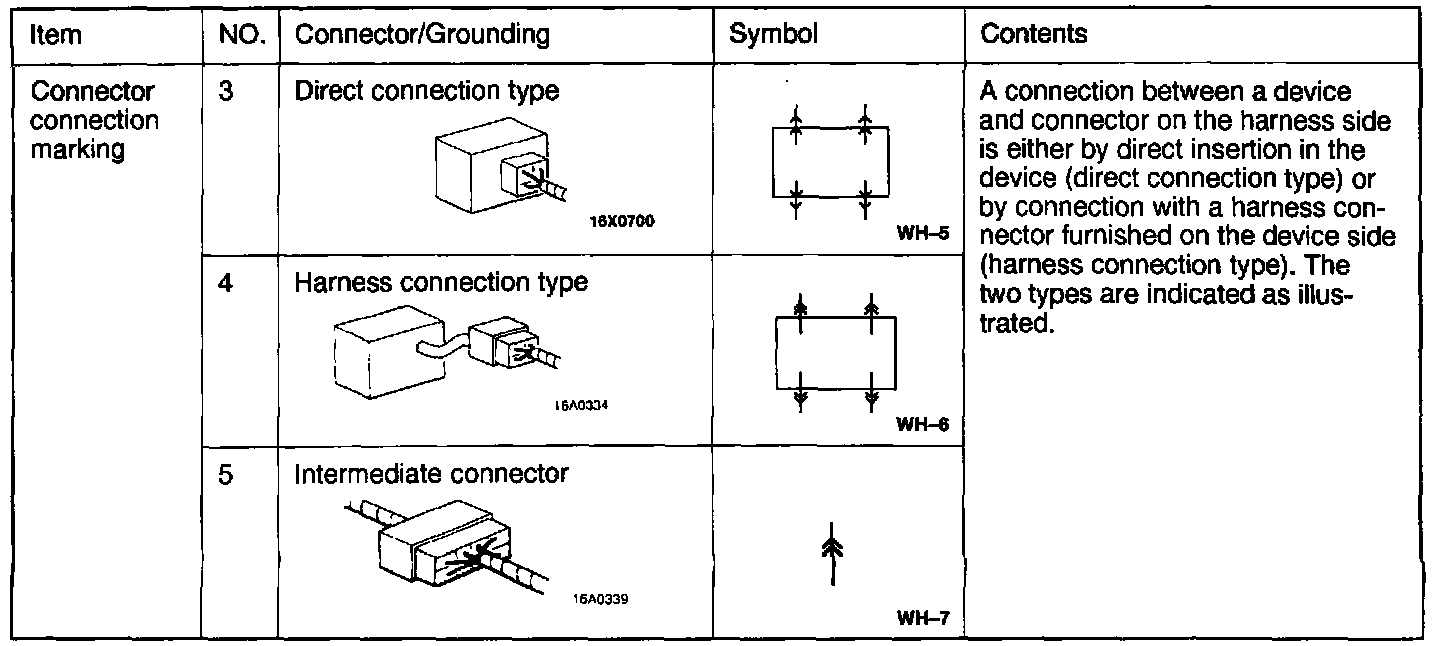

Connector Connection Marking:





Connector Connection Markings

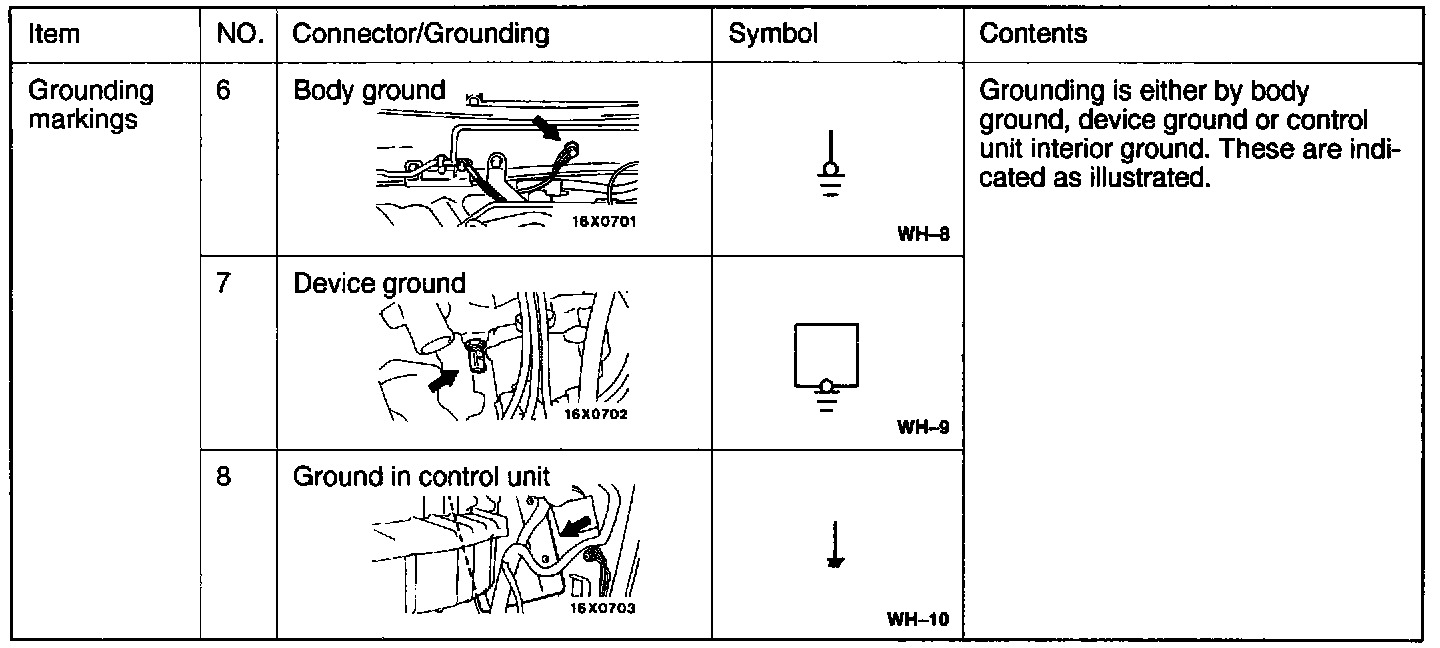

Grounding Markings:





Grounding Markings
