Dedicated Fuse (Engine Compartment)

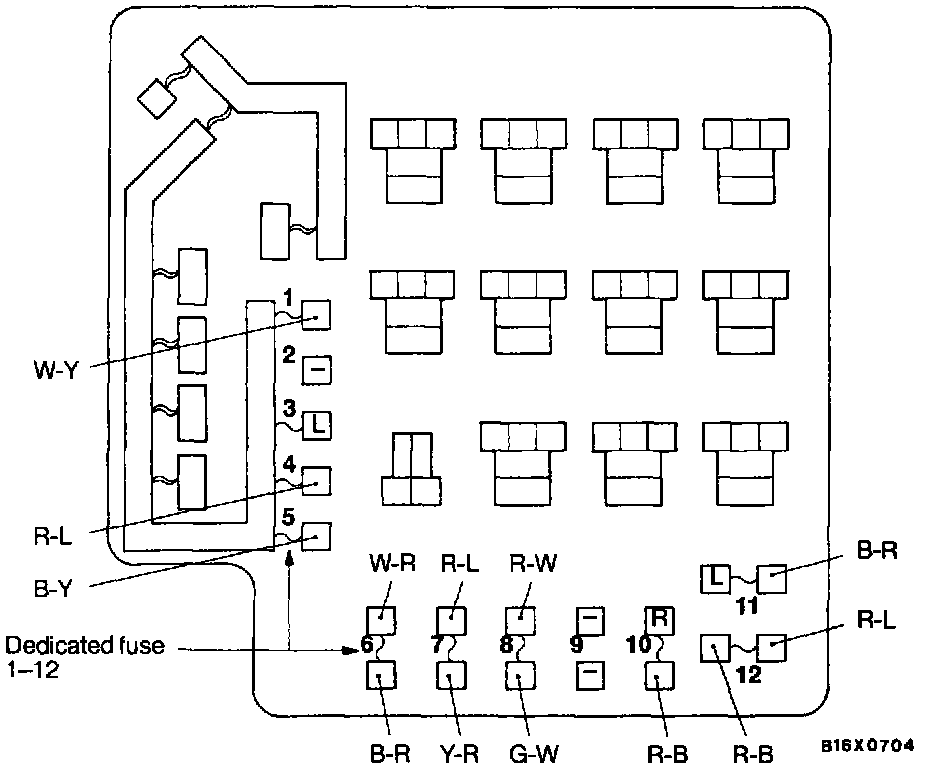

Dedicated Fuse (Relay Box In Engine Compartment):

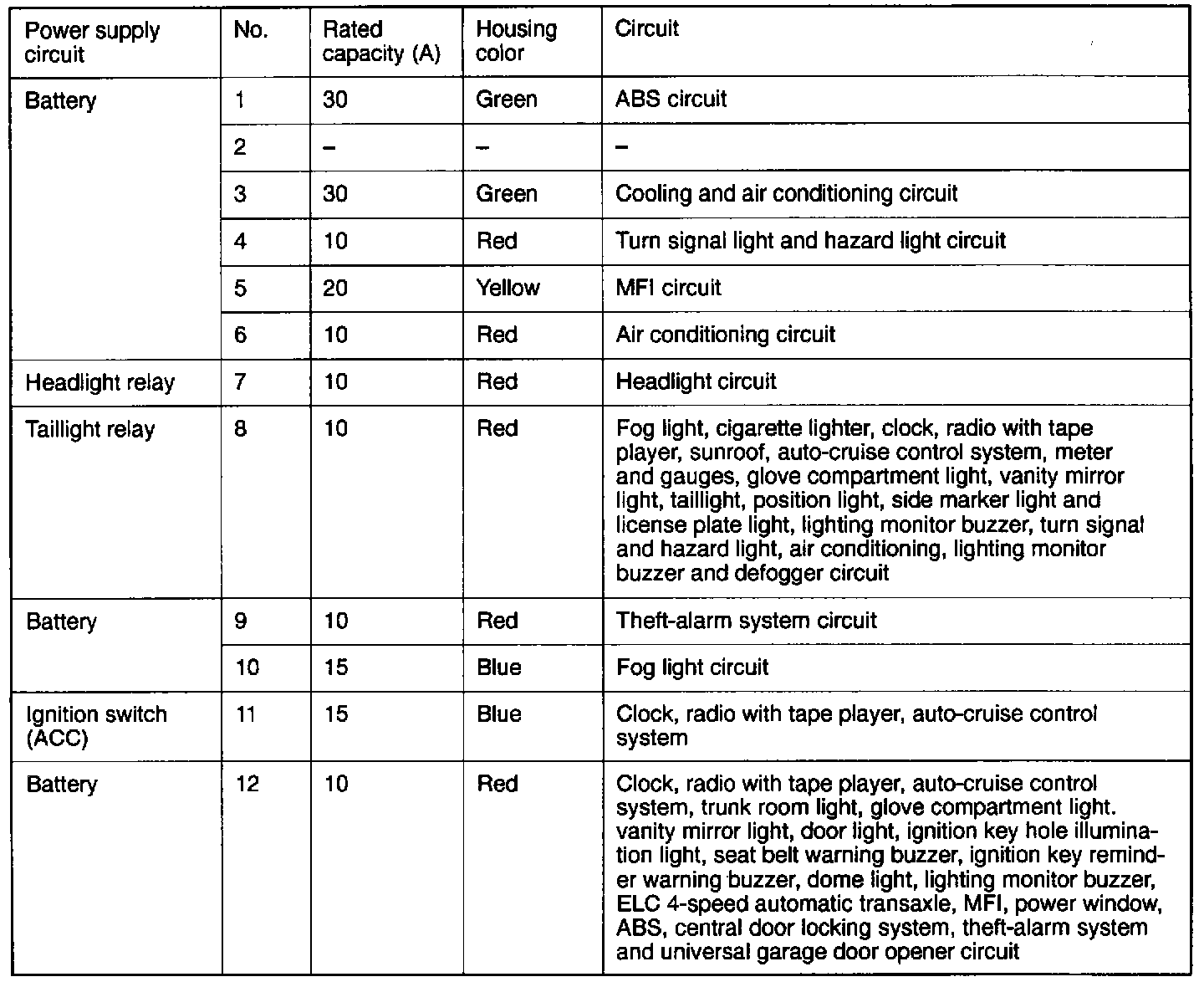

Dedicated Fuse (Relay Box In Engine Compartment):
