Headlamp: Service and Repair

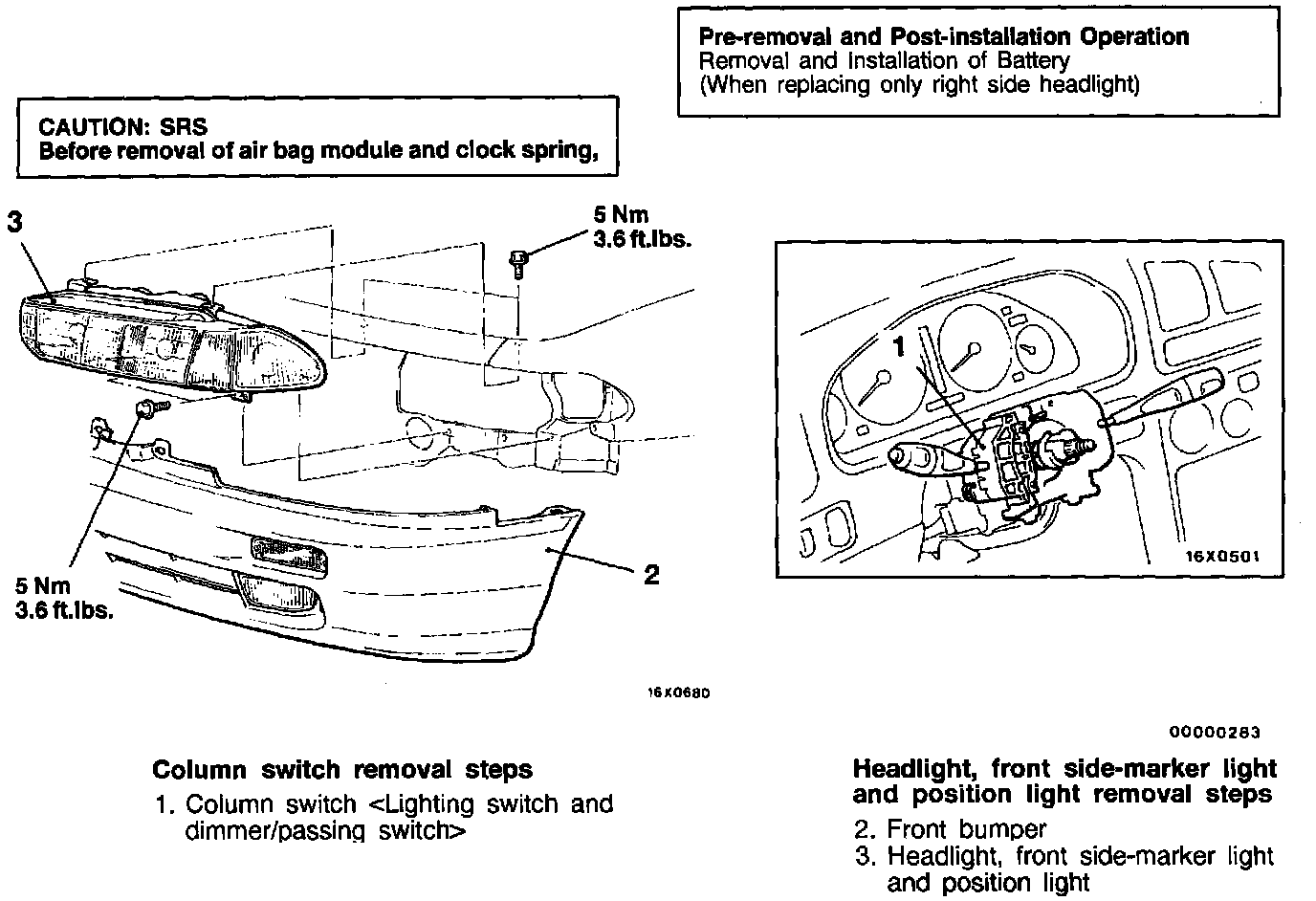

Headlight, Front Turn-signal And Position Light Assembly - Removal And Installation:

CAUTION: Before removal of air bag module and clock spring refer service precautions and air bag module and clock spring.

Pre-Removal
- Battery (When replacing only right side headlight)


REMOVE
Column Switch
1. Column switch

Headlight, Front Side-Marker Light And Position Light
2. Front bumper
3. Headlight, front side-marker light and position light


INSTALL
Column Switch
1. Column switch

Headlight, Front Side-Marker Light And Position Light
2. Headlight, front side-marker light and position light
3. Front bumper

Post-Installation
- Battery (When replacing only right side headlight)
