Disassembly and Reassembly

DISASSEMBLY AND REASSEMBLY

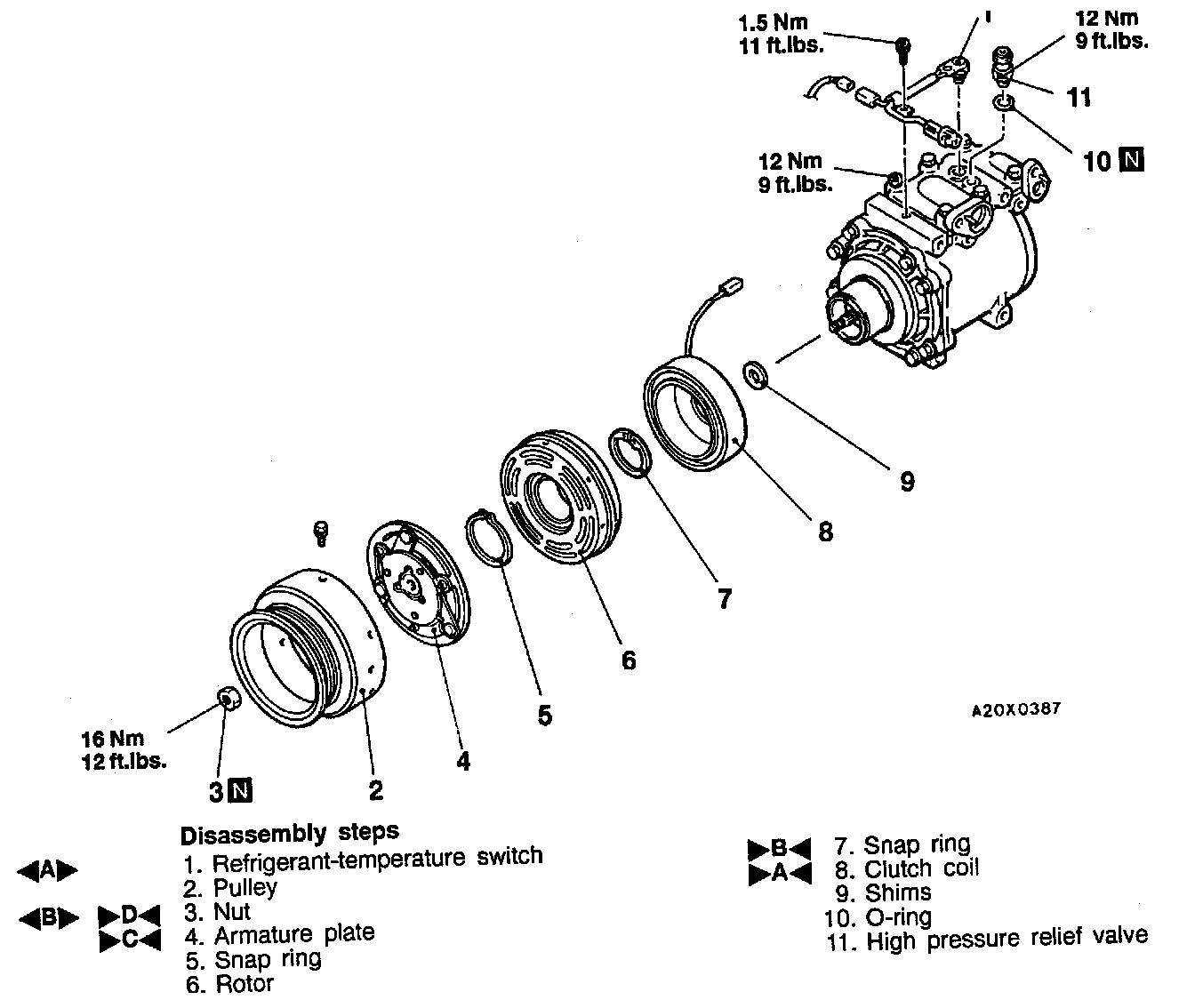

DISASSEMBLY SERVICE POINTS





Refrigerant-Temperature Switch Removal (From 1995 models)

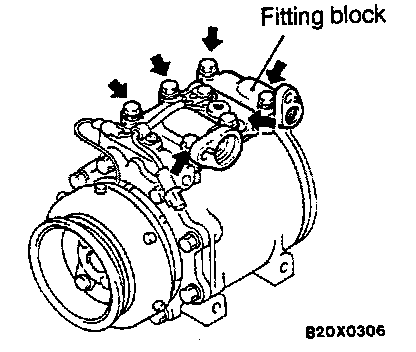

(1) Remove the fitting block of the compressor.
(2) Remove the snap ring from inside the fitting block then remove the refrigerant-temperature switch.

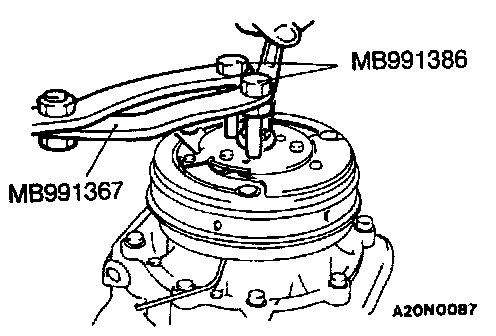

NUT REMOVAL

REASSEMBLY SERVICE POINTS

Clutch Coil Installation

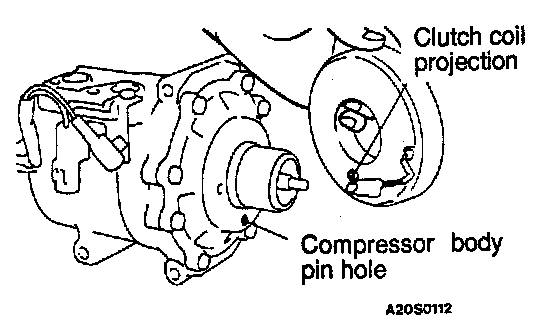

When installing the clutch coil to the A/C compressor body, install so that the pin hole of the A/C compressor body and the clutch coil projection are aligned.





Snap Ring Installation

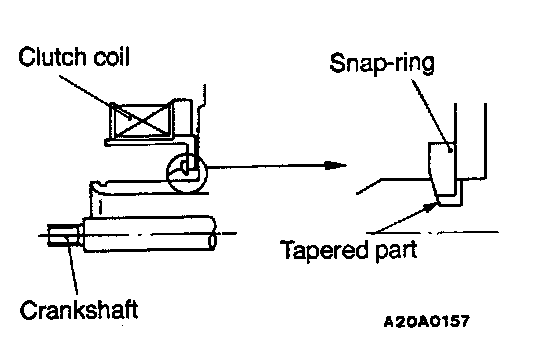

Install the snap ring so that the tapered surface is at the outer side.





Armature Plate Installation

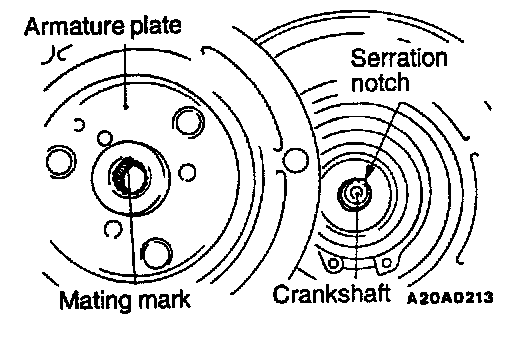

Align the mating mark of the crankshaft spline and the mating mark of the armature plate, and then fit them together.

Nut Installation





(1) Install the nut.

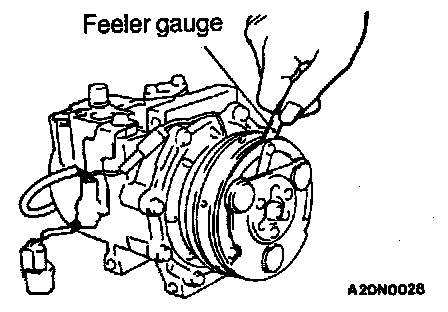

(2) Check whether or not the air gap of the clutch is within the standard value.

Standard value: 0.4 - 0.6 mm (.016 - .024 in.)

NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.





INSPECTION
- Check the surface of the armature for scoring or bluing.
- Check the surface of the rotor for scoring or bluing.
- Check the sealing surfaces for cracks, scratches and deformation.
- Check the front housing for cracks or scoring on the sealing surfaces.
- Check the compressor shaft for scoring.

REFRIGERANT-TEMPERATURE SWITCH

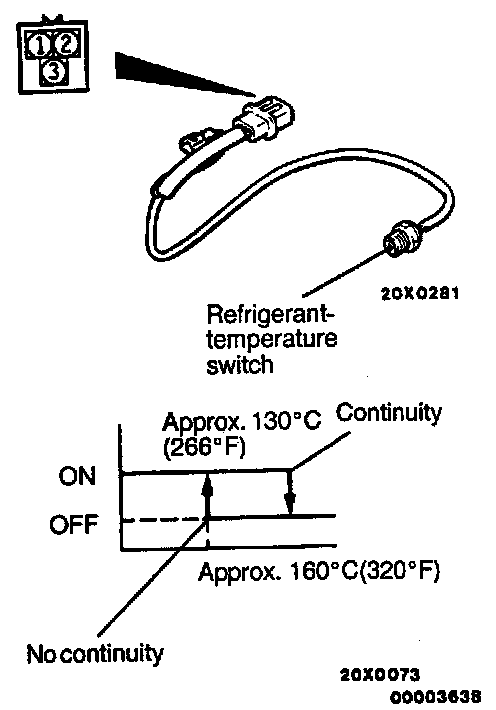

(1) Immerse the refrigerant-temperature switch in engine oil.

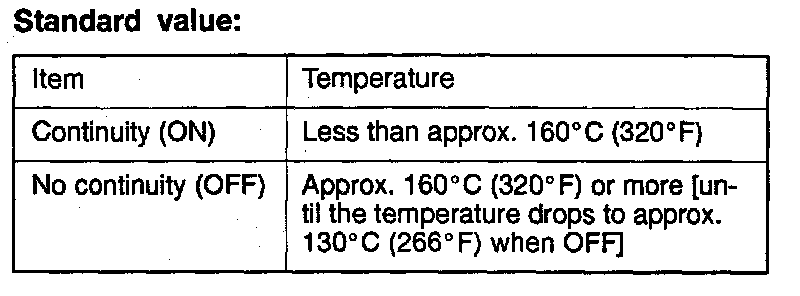

(2) Use an ohmmeter to check the continuity between the terminals (1) and (2) when the engine oil has become heated.





CAUTION: Do not heat the oil more than necessary.





HIGH PRESSURE RELIEF VALVE CHECK
The high pressure relief valve is a safety feature which releases part of the refrigerant inside the system into the atmosphere when the high pressure level exceeds 3,740 kPa (532 psi) during air conditioning operation.

Once the pressure inside the system has been reduced to 2,940 kpa (418 psi) or lower, the high pressure relief valve closes, thus allowing continued operation.

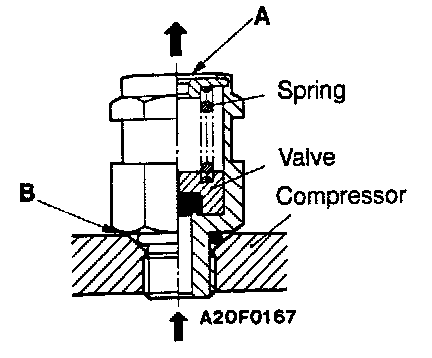

(1) If a leak is detected at section A, replace the high pressure relief valve. The valve can be used unless there is a leak from that section.
(2) If a leak is detected at section B, retighten the valve. If the leak persists after retightening the valve, replace the packing.
