Galant L4-2350cc 2.4L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

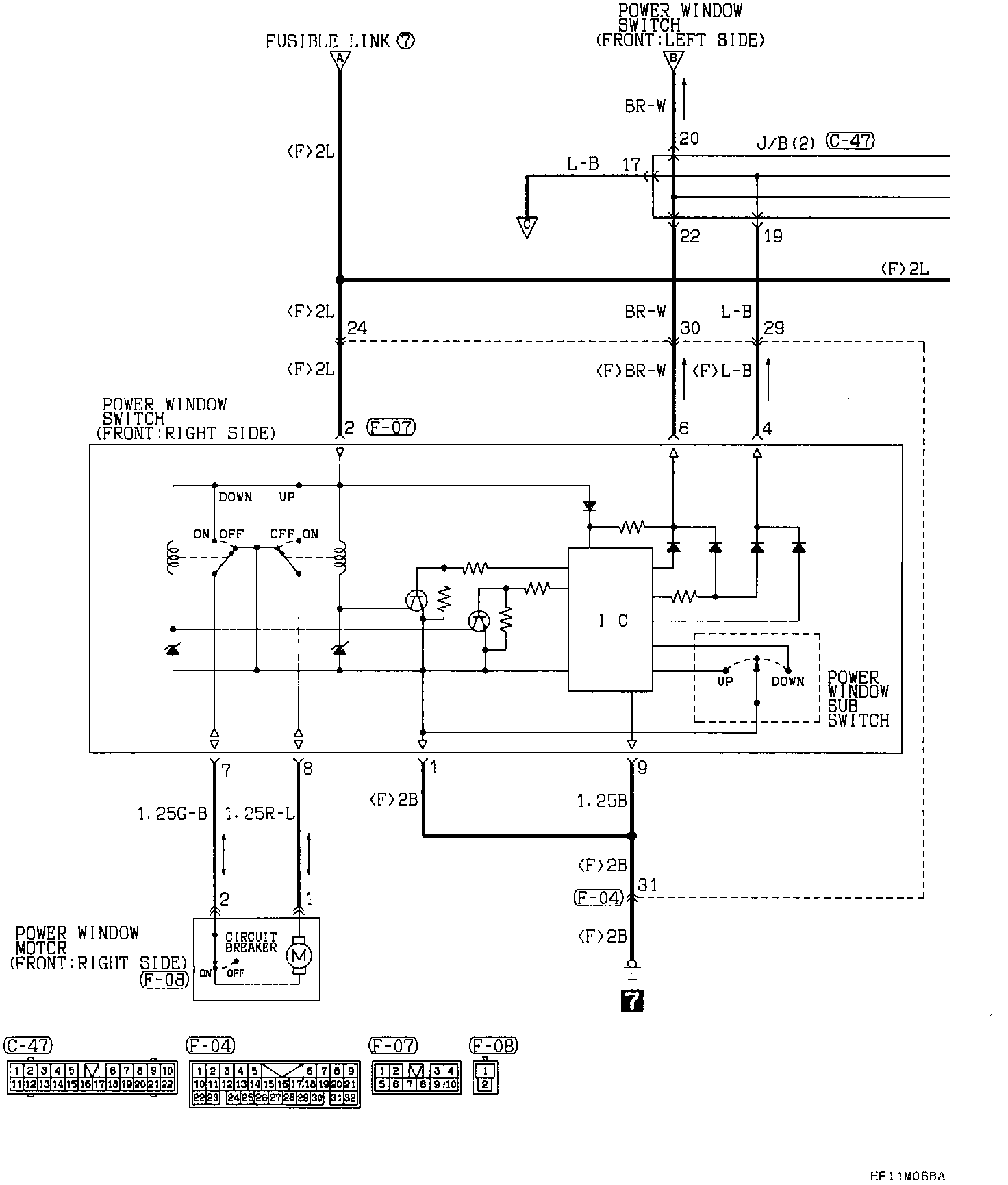

Power Window Circuit (Part 1 Of 5):

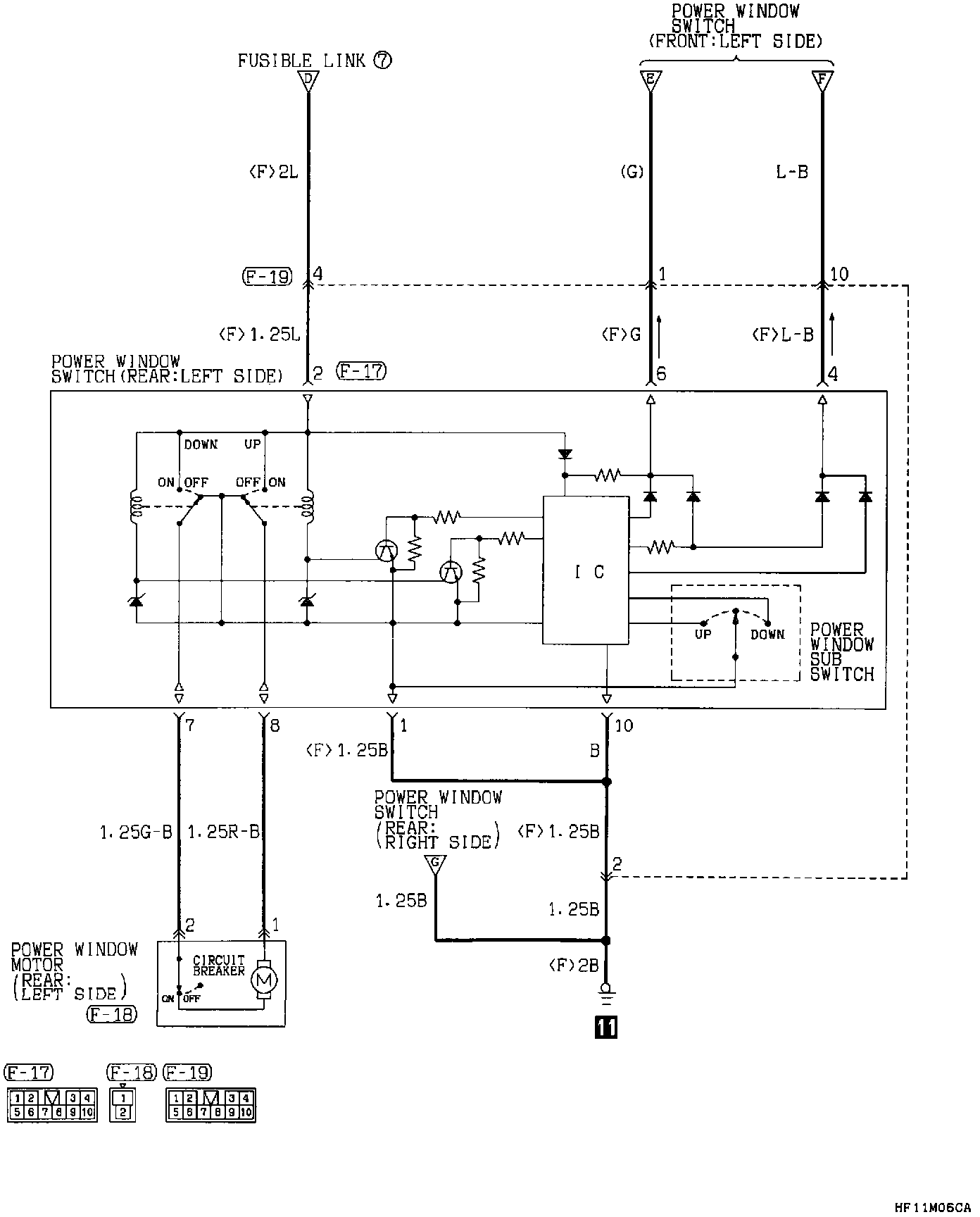

Power Window Circuit (Part 2 Of 5):

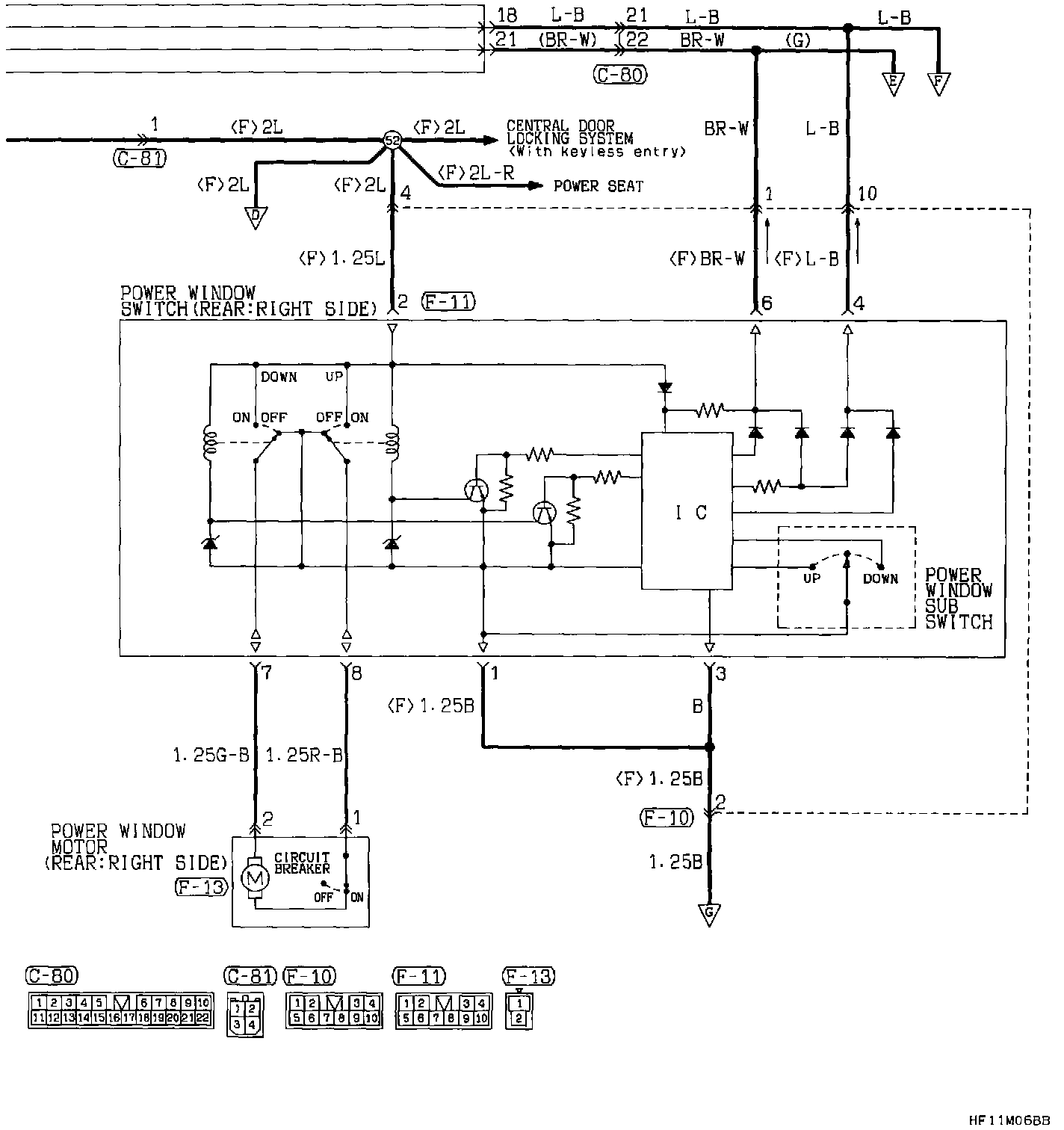

Power Window Circuit (Part 3 Of 5):
Power Window Circuit (Part 4 Of 5):
Power Window Circuit (Part 5 Of 5):
