Galant L4-2350cc 2.4L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Without Theft-Alarm
Without Theft-Alarm

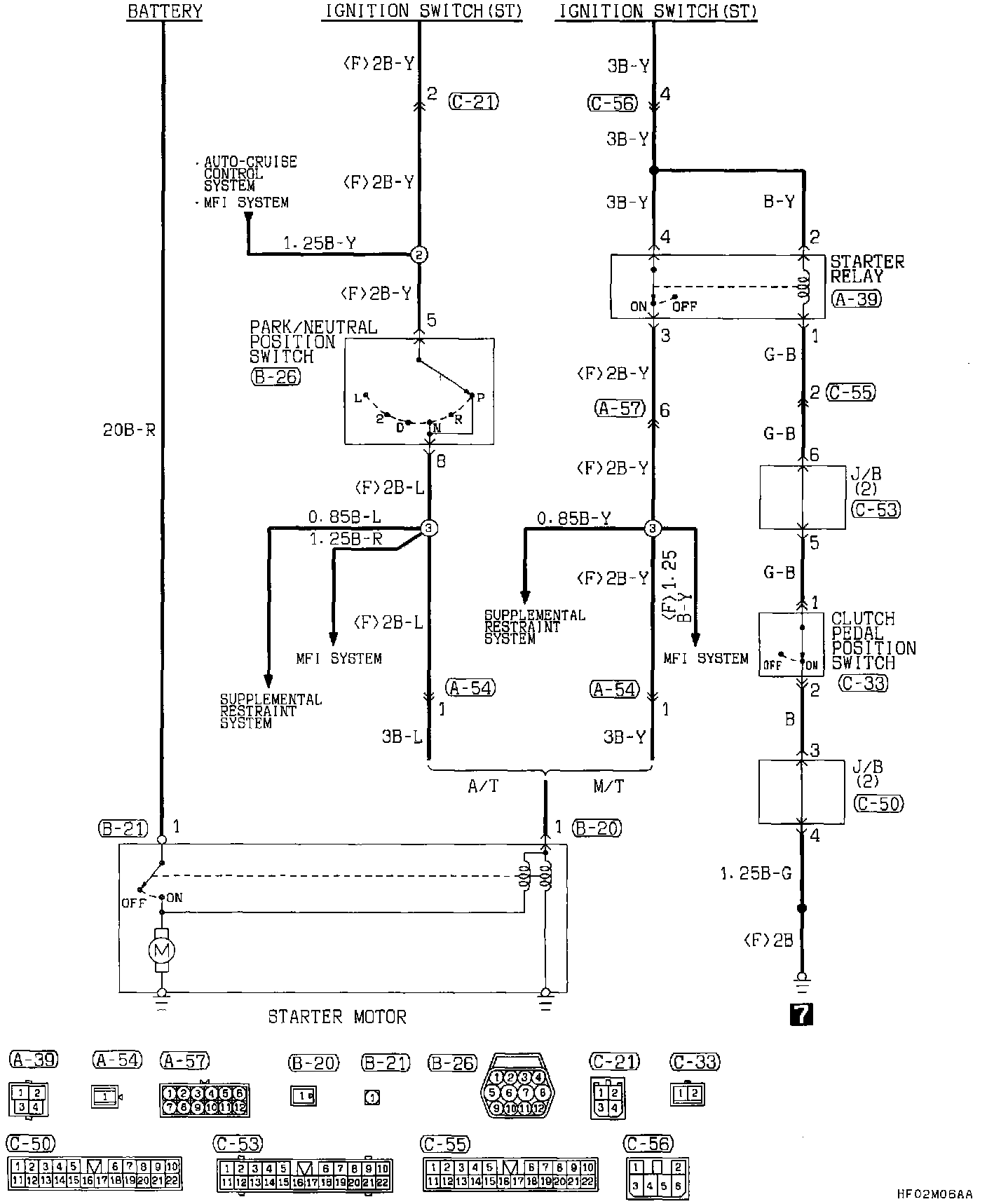

Starting System Circuit:
