Antitheft and Alarm Systems

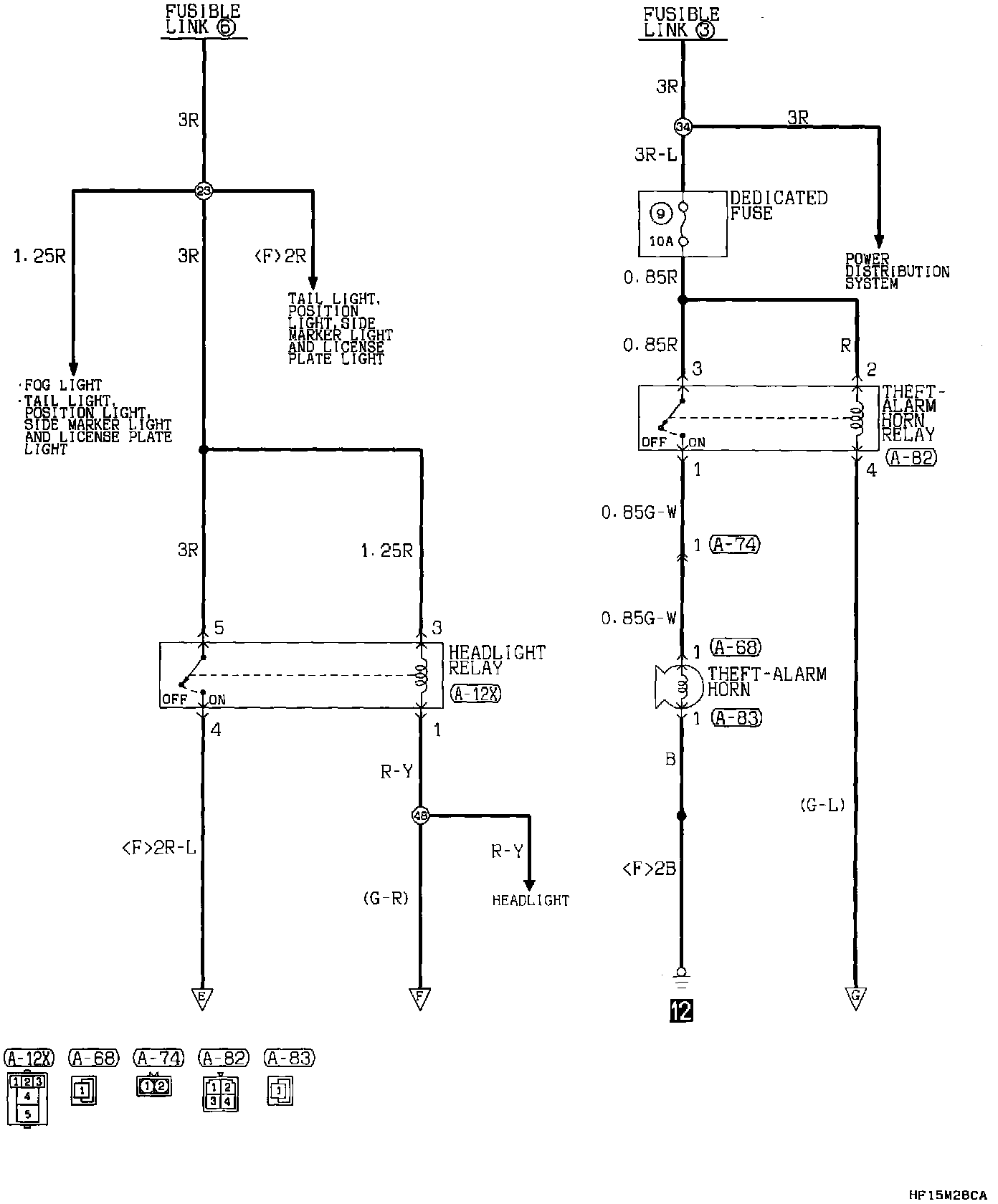

Theft-Alarm System Circuit (Part 1 Of 7):

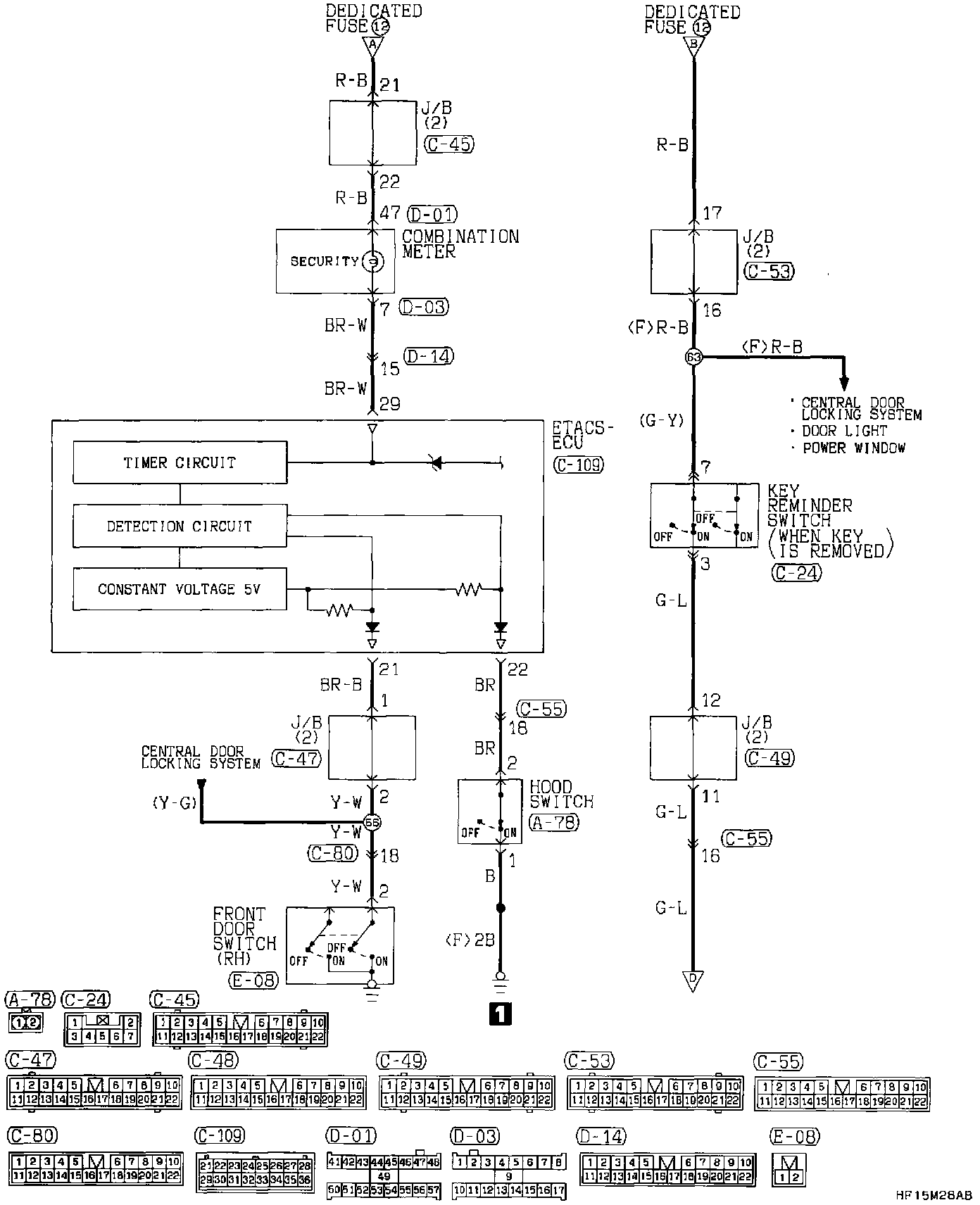

Theft-Alarm System Circuit (Part 2 Of 7):

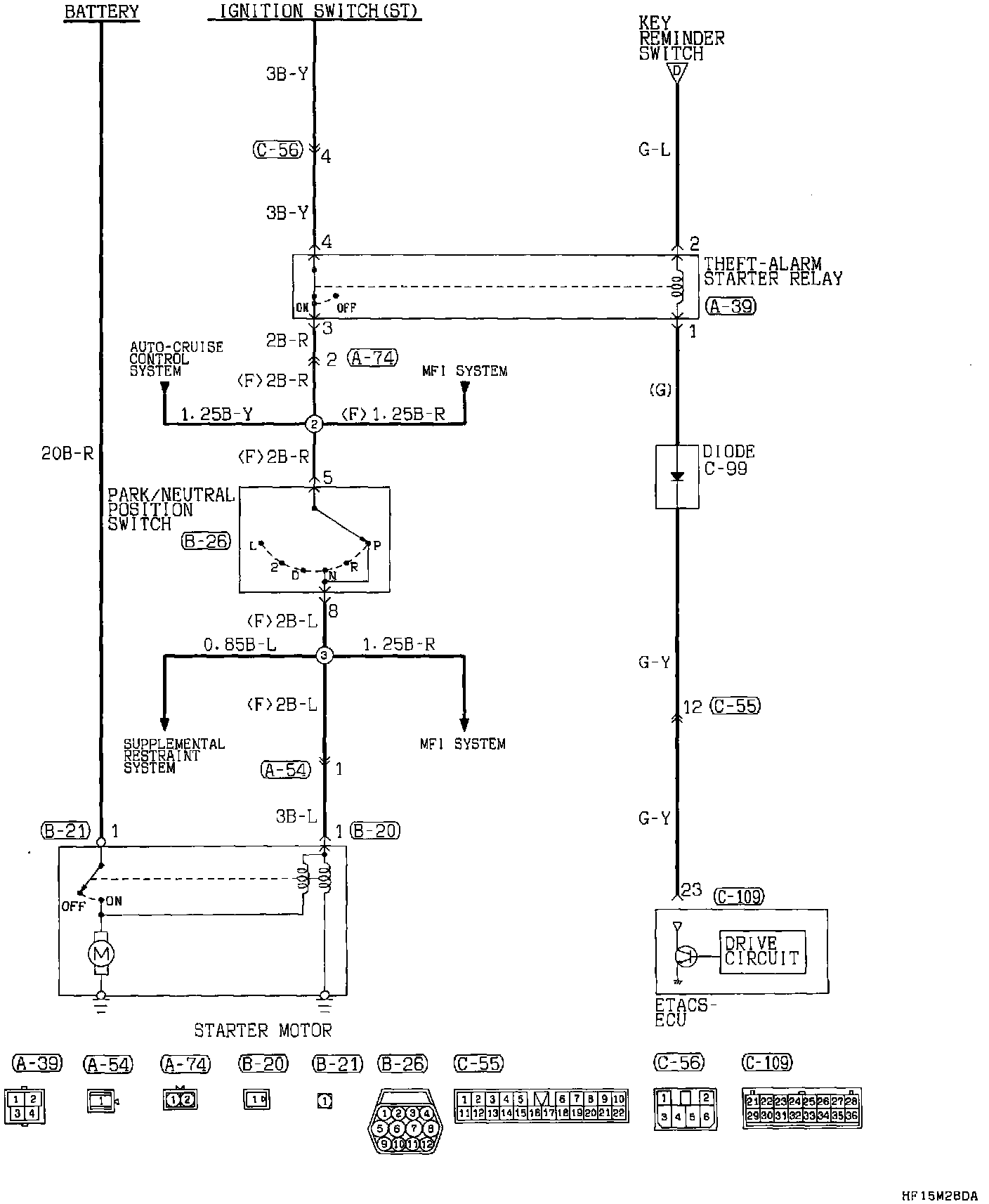

Theft-Alarm System Circuit (Part 3 Of 7):

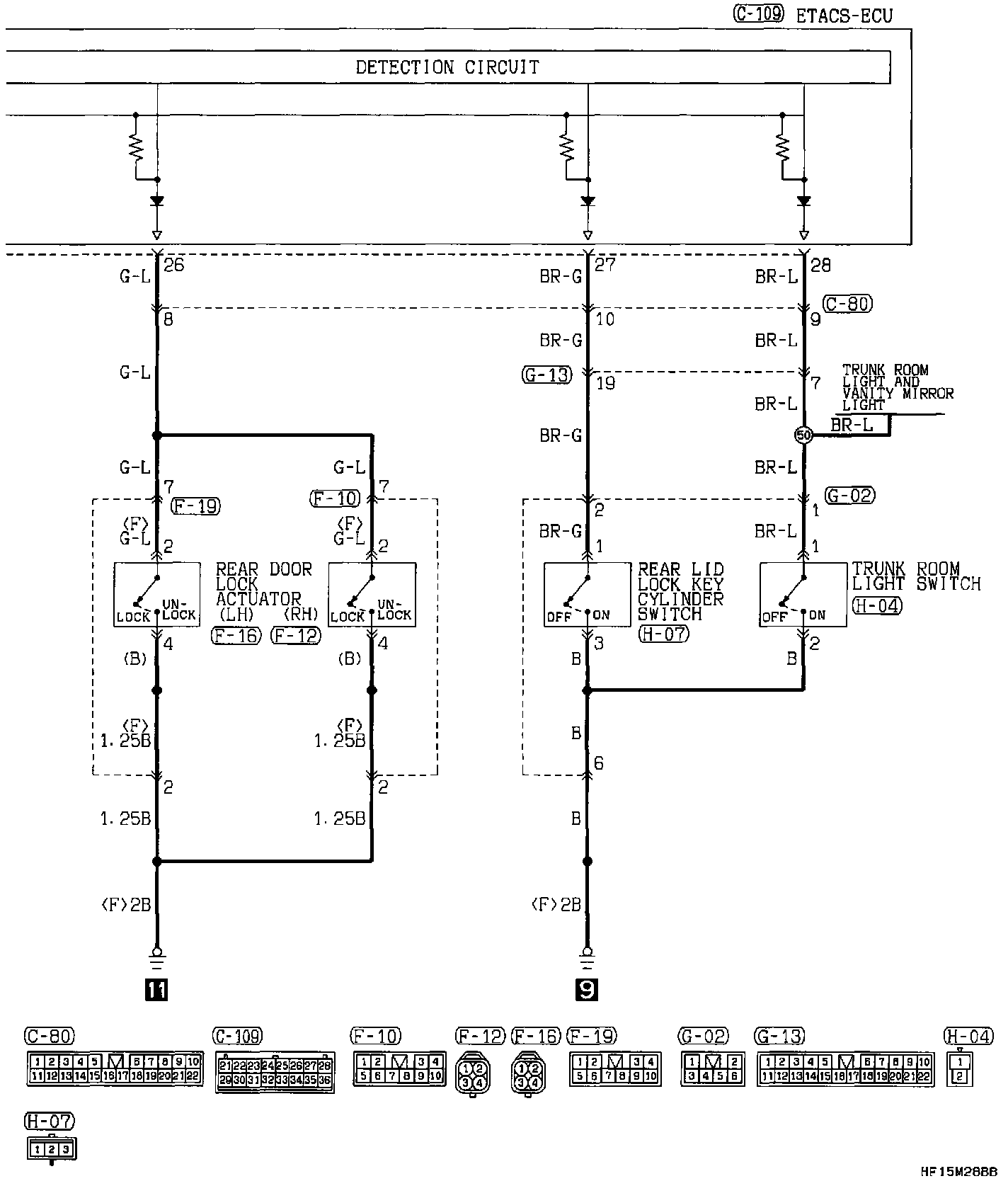

Theft-Alarm System Circuit (Part 4 Of 7):

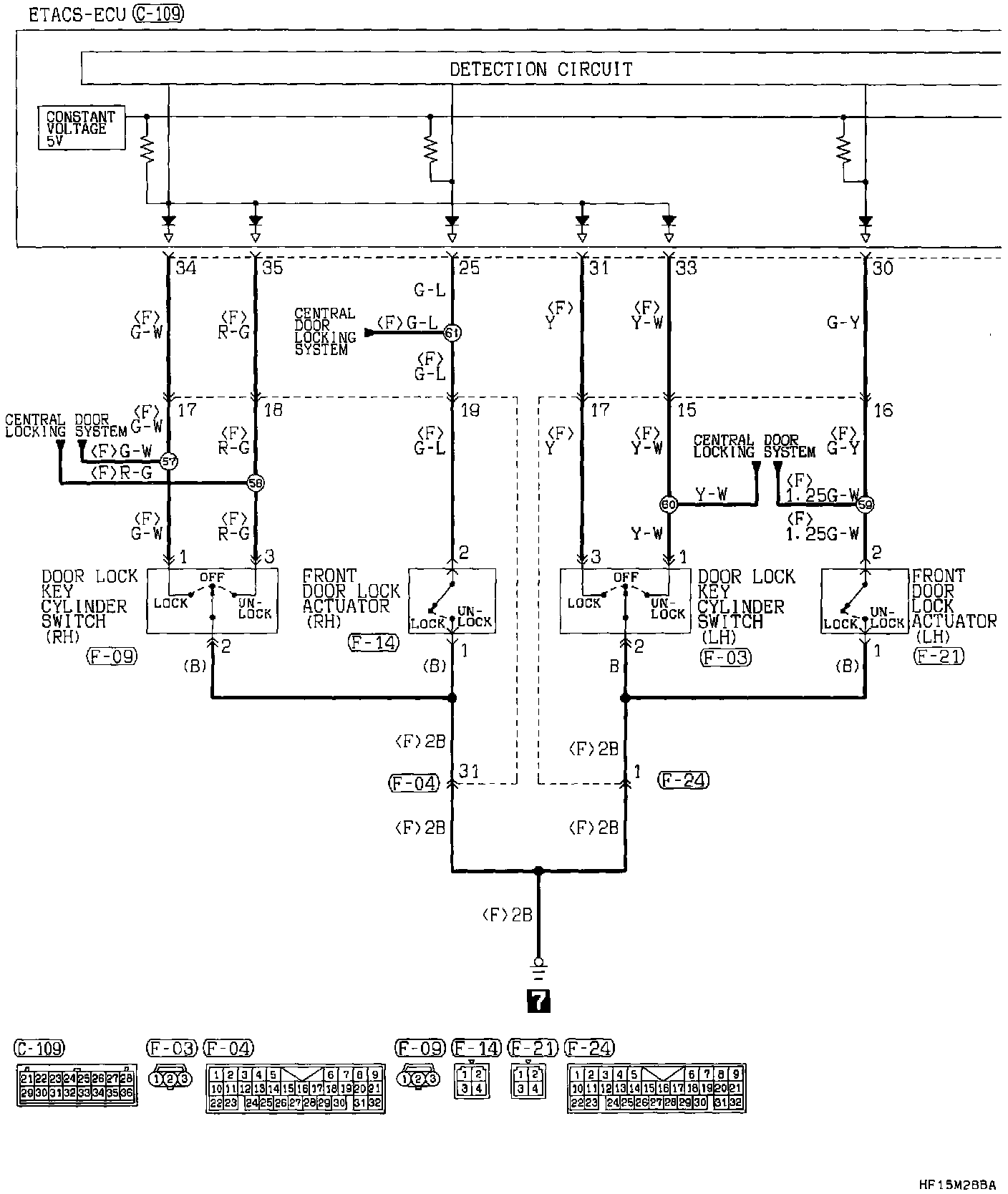

Theft-Alarm System Circuit (Part 5 Of 7):

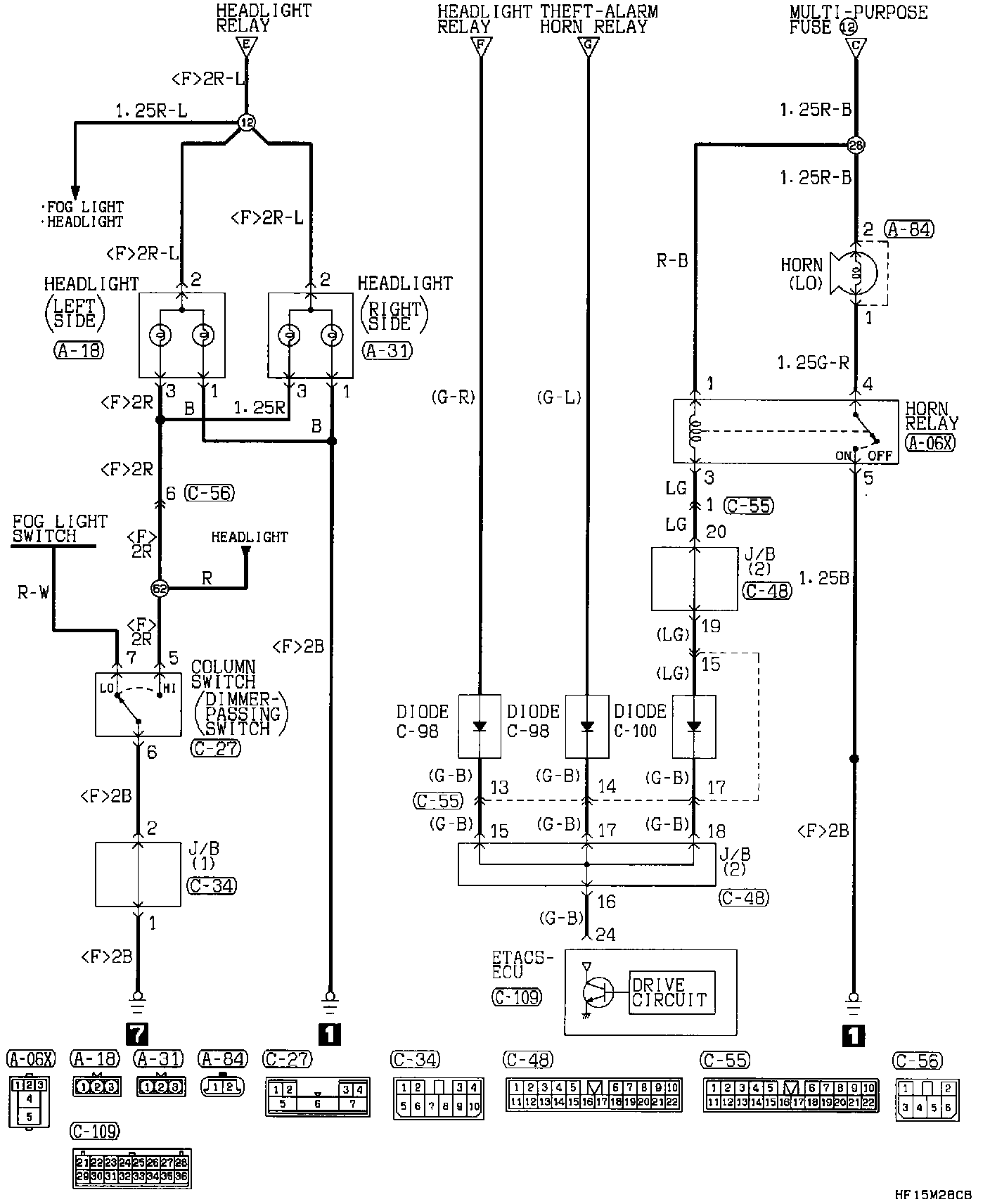

Theft-Alarm System Circuit (Part 6 Of 7):

Theft-Alarm System Circuit (Part 7 Of 7):
