Generator Relay
Generator Relay

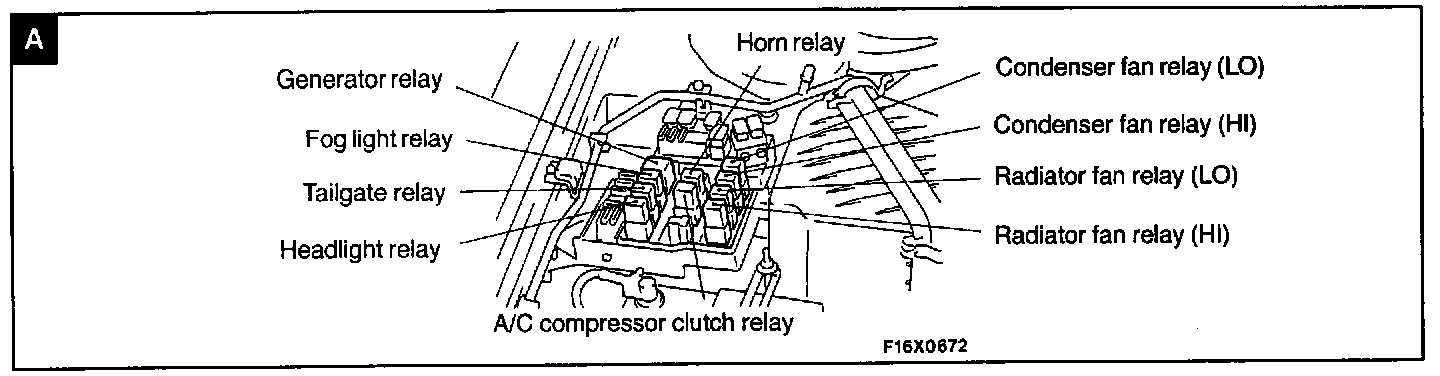

Generator, Fog Light, Tailgate, Headlight, Condenser fan Relay (HI & LO), Radiator Fan (HI & LO) , Horn And A/C Compressor Clutch Relays:
