DTC 54
DTC 54

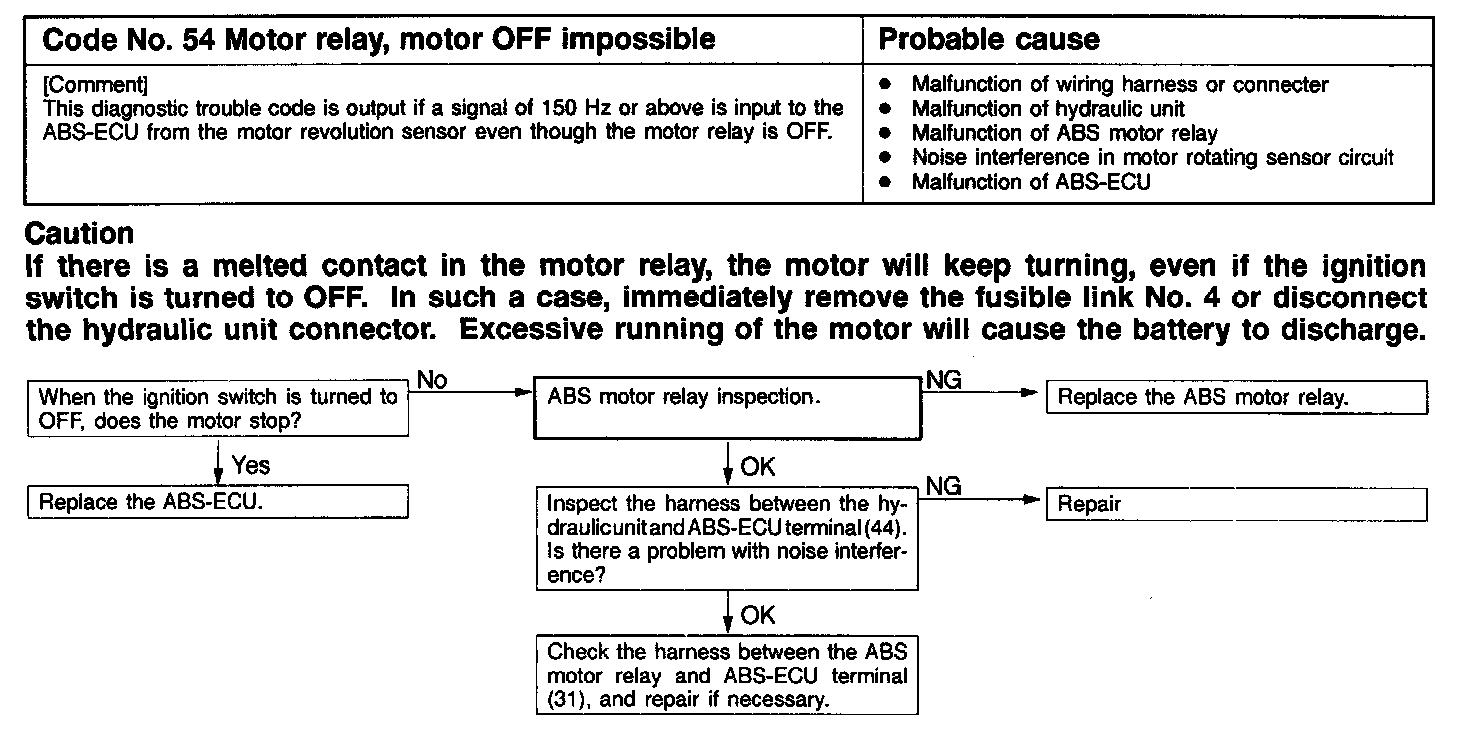

Code # 54 Motor Relay, Motor OFF Impossible:
NOTE:
To inspect the harnesses, check if there is any damage to the cables, and flex the cables to check for any open circuits.
