Generator and Ignition System

GENERATOR AND IGNITION SYSTEM






Removal

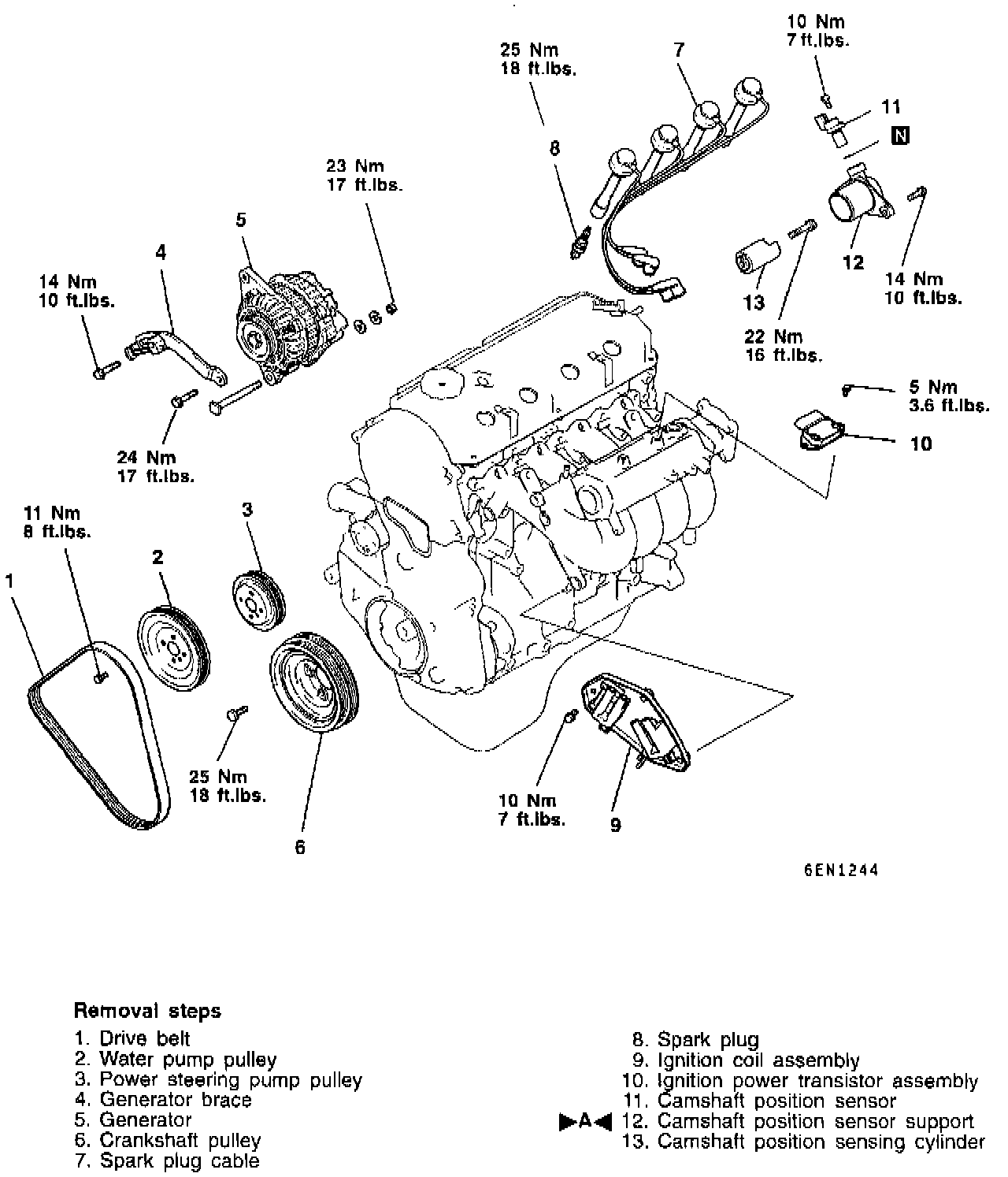

Follow removal steps outlined in illustration.

Installation
Installation in reverse order as removal.

Installation Service Points





]A[ Camshaft Position Sensor Support Installation.
1. Apply a 3 mm bead of form-in-place gasket (FIPG) to the area shoving.

Specified sealant:
Mitsubishi Genuine Part No. MD970389 or equivalent.
