Condenser Fan: Service and Repair

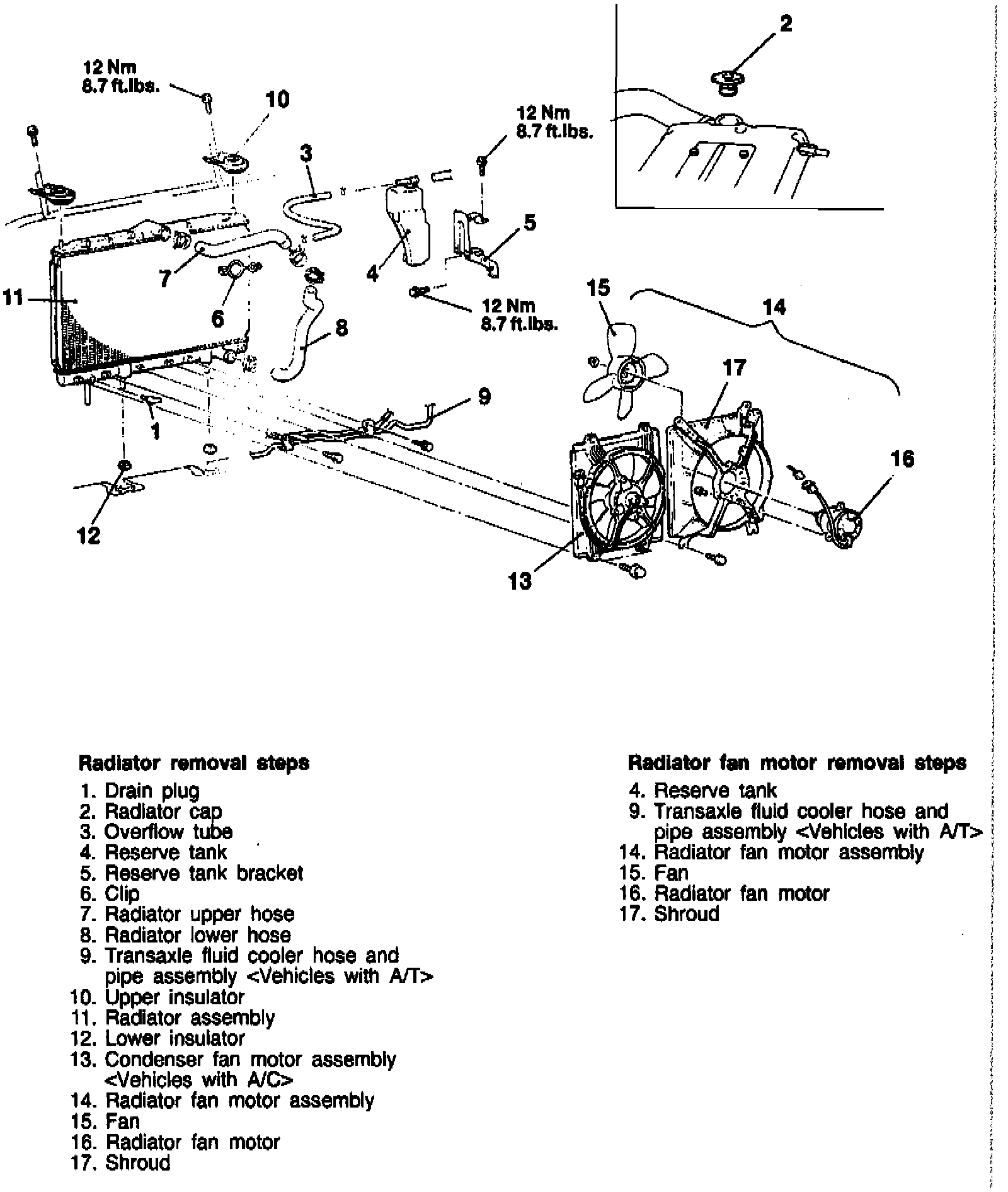

Fig. 43 Cooling Fan System Component Replacement:





Refer to Fig. 43 for component replacement.
