Oscilloscope Patterns and Waveforms

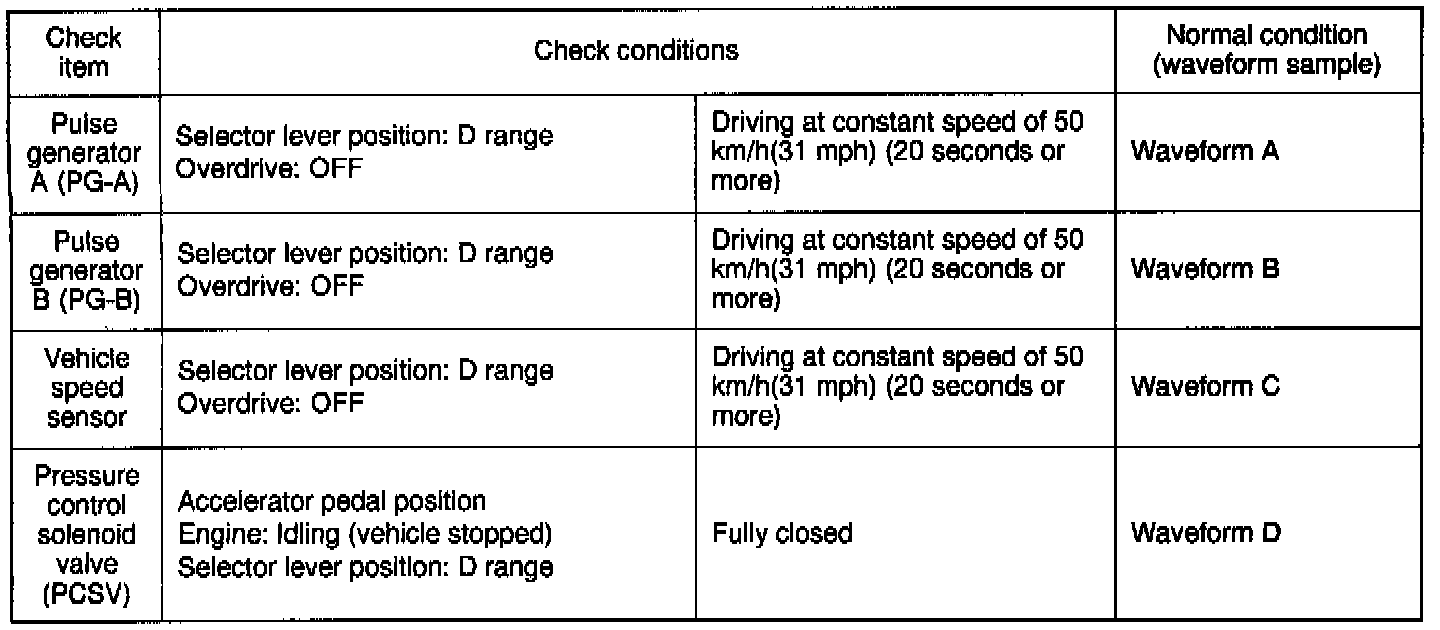

OSCILLOSCOPE INSPECTION PROCEDURE

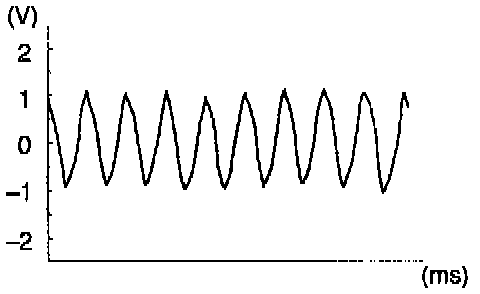

Waveform A

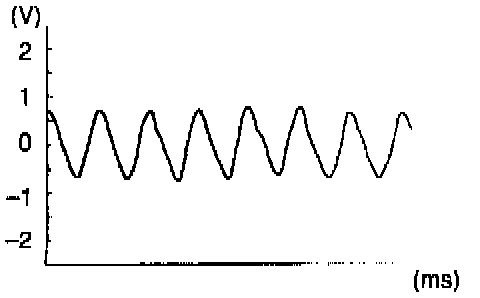

Waveform B

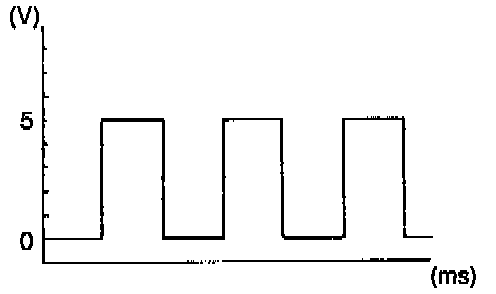

Waveform C

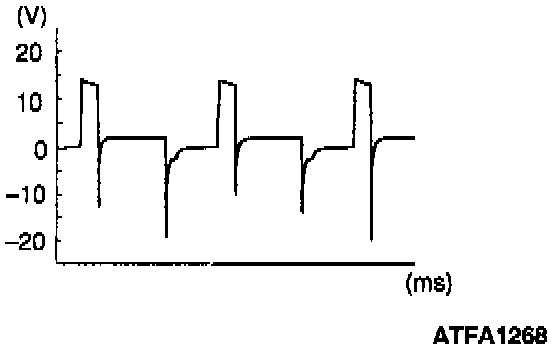

Waveform D
