Removal and Installation Steps

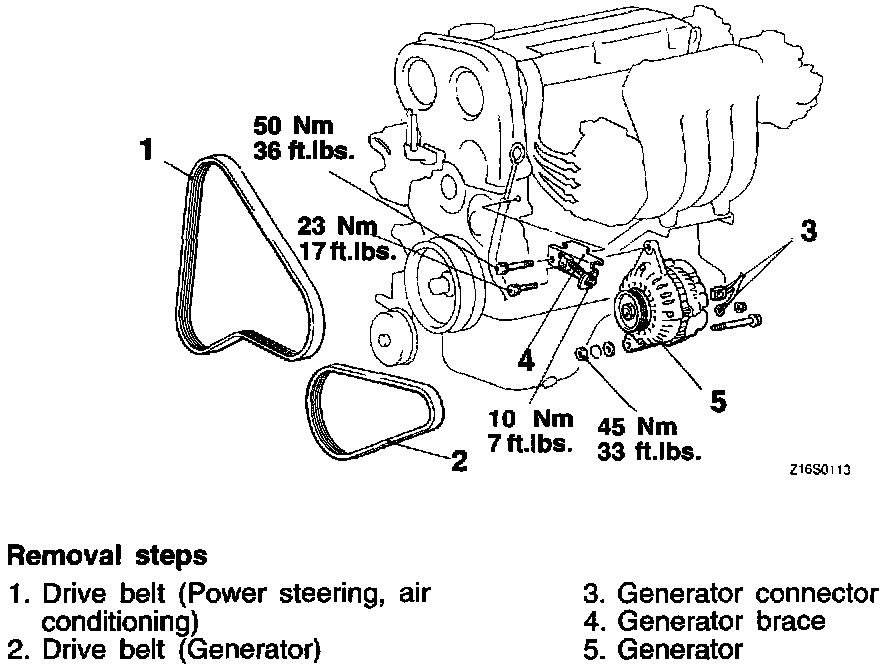

Generator - Removal And Installation:

REMOVE
1. Drive belt (Power steering, air conditioning)
2. Drive belt (Generator)
3. Generator connector
4. Generator brace
5. Generator

INSTALL
1. Generator
2. Generator brace
3. Generator connector
4. Drive belt (Generator)
5. Drive belt (Power steering, air conditioning)

Post-Installtion
- Adjustment of Drive Belt Tension
