F4A22 4-SPD A/T

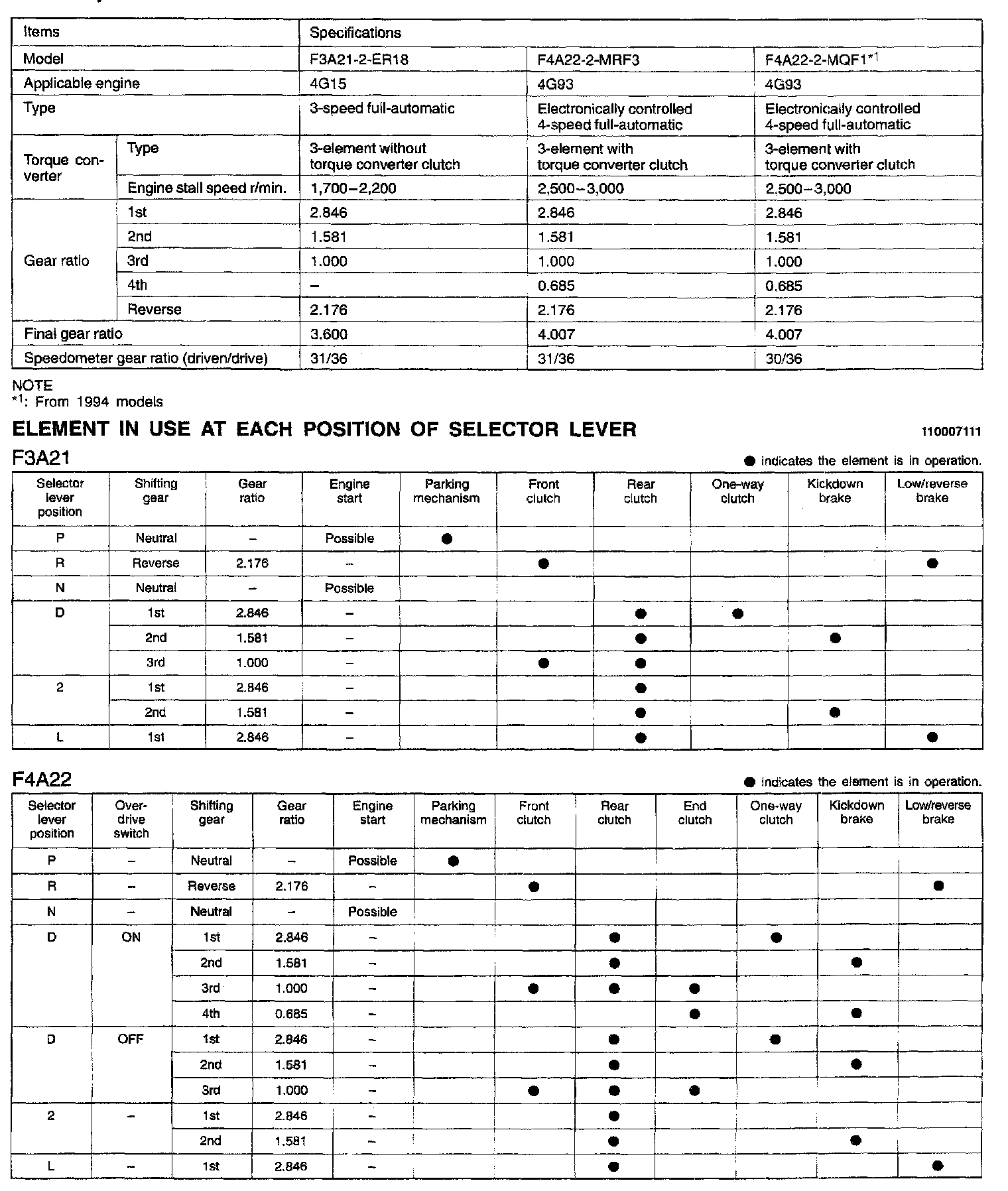

F3A21/F4A22 A/T, Gear Ratios & Element Operation:





F3A21/F4A22 A/T, Standard Values:

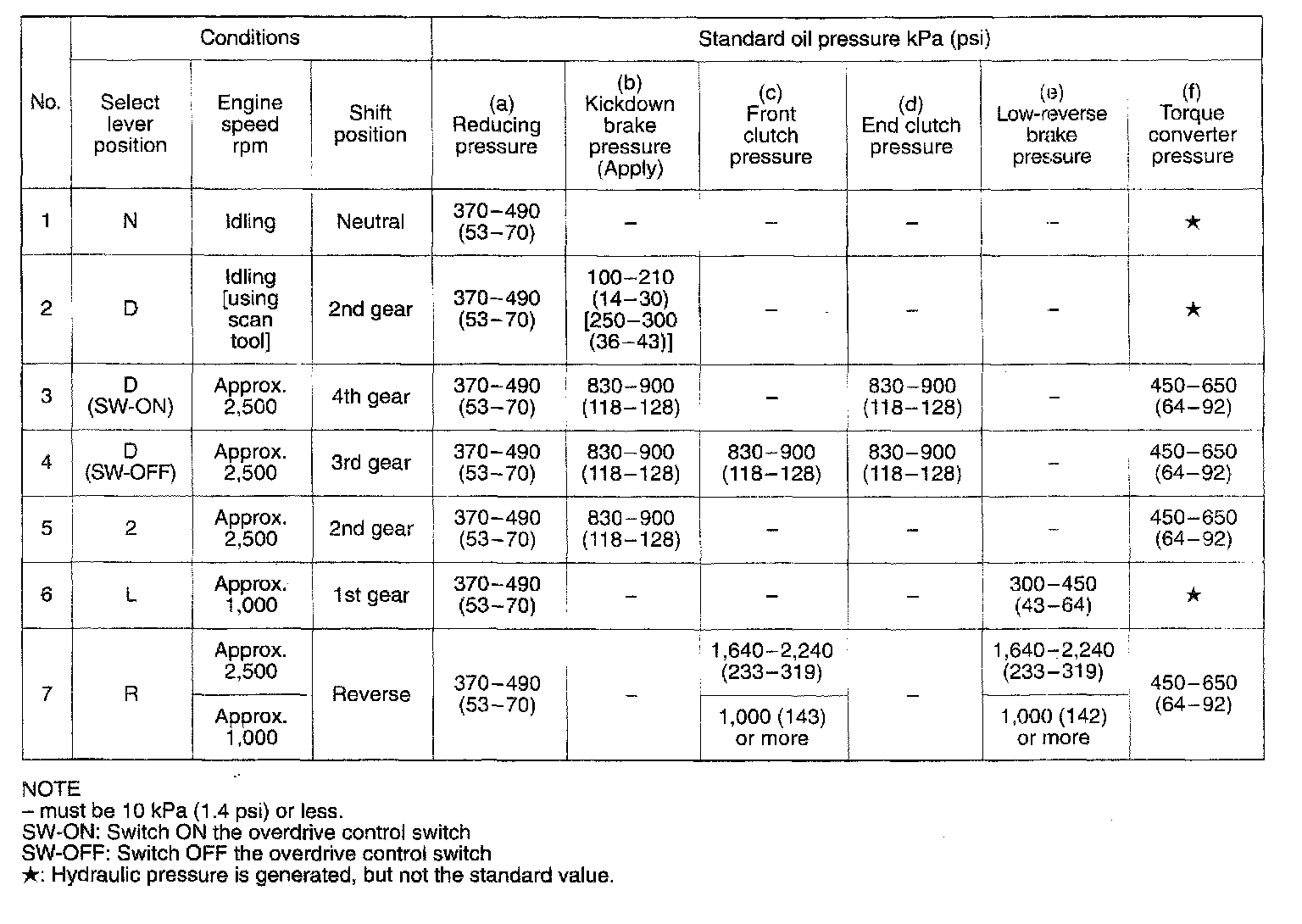

F4A22 4-spd A/T, Standard Hydraulic Pressure Table:
