SRS Warning Lamp Bulbs - Manual Revision
NO.: TSB-96-52B-003DATE: July, 1996
MODEL: 1995 Mirage
SUBJECT:
DECREASE IN NUMBER OF SRS WARNING LAMP BULBS (1995 MIRAGE) SERVICE MANUAL REVISION
PURPOSE
The number of Supplemental Restraint System (SRS) warning lamps in the combination meter was decreased from 2 to 1 beginning with February 1995 production. This bulletin revises the service manual circuit diagrams to reflect this change.
AFFECTED VEHICLES
1995 Mirage beginning with February 1995 production
AFFECTED MANUALS
1993-96 Mirage, Volume 1, Page 52B-8
1993-96 Mirage, Volume 1, Page 52B-17
1993-96 Mirage, Volume 2, Page 303
SRS General Information
SERVICE MANUAL REVISIONS

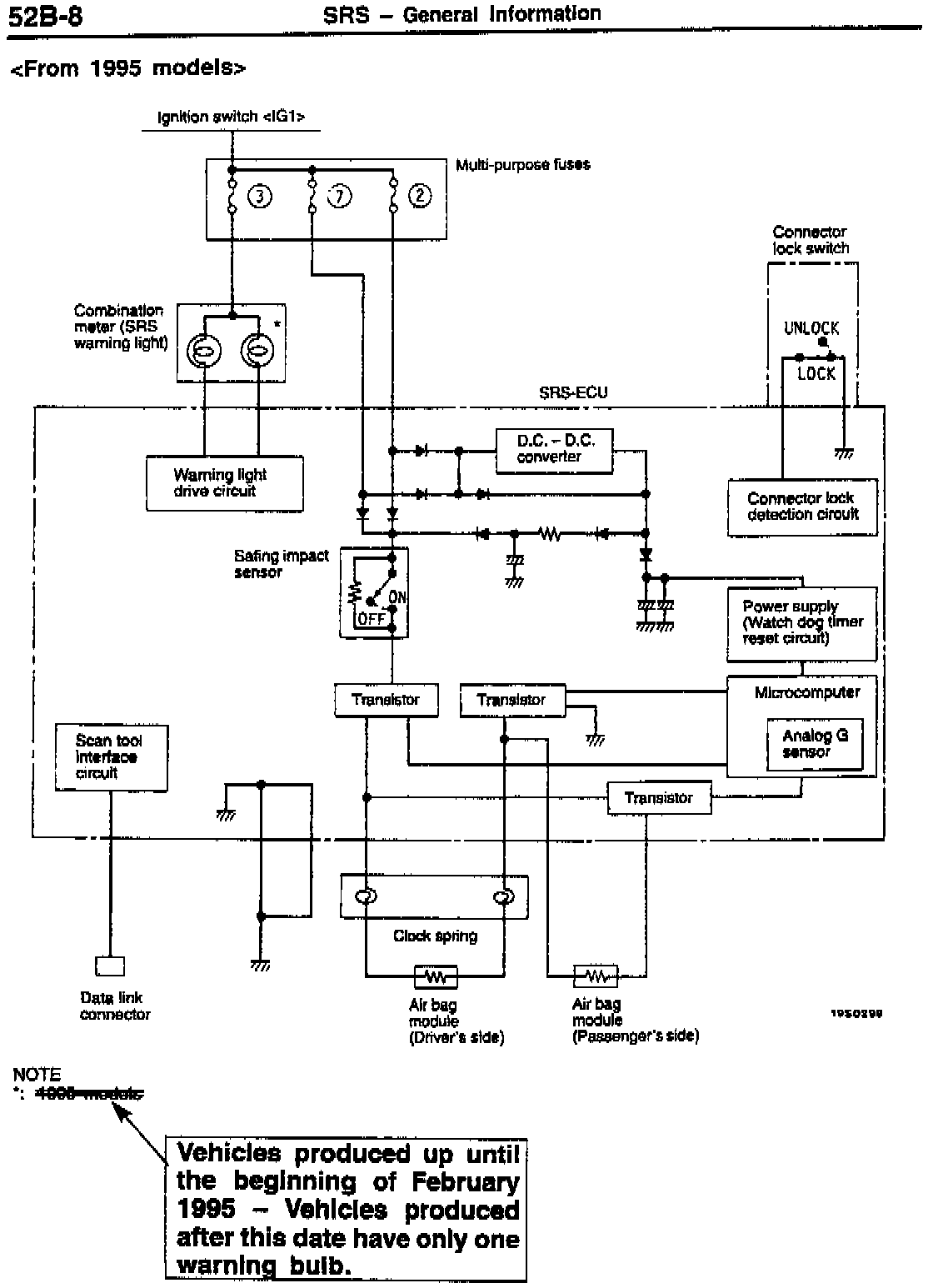

1993-96 Mirage, Volume 1, Page 52B-8
Make the necessary changes in the manual to indicate that the second SRS indicator bulb in the combination meter was eliminated beginning with February 1995 production.
SRS General Information

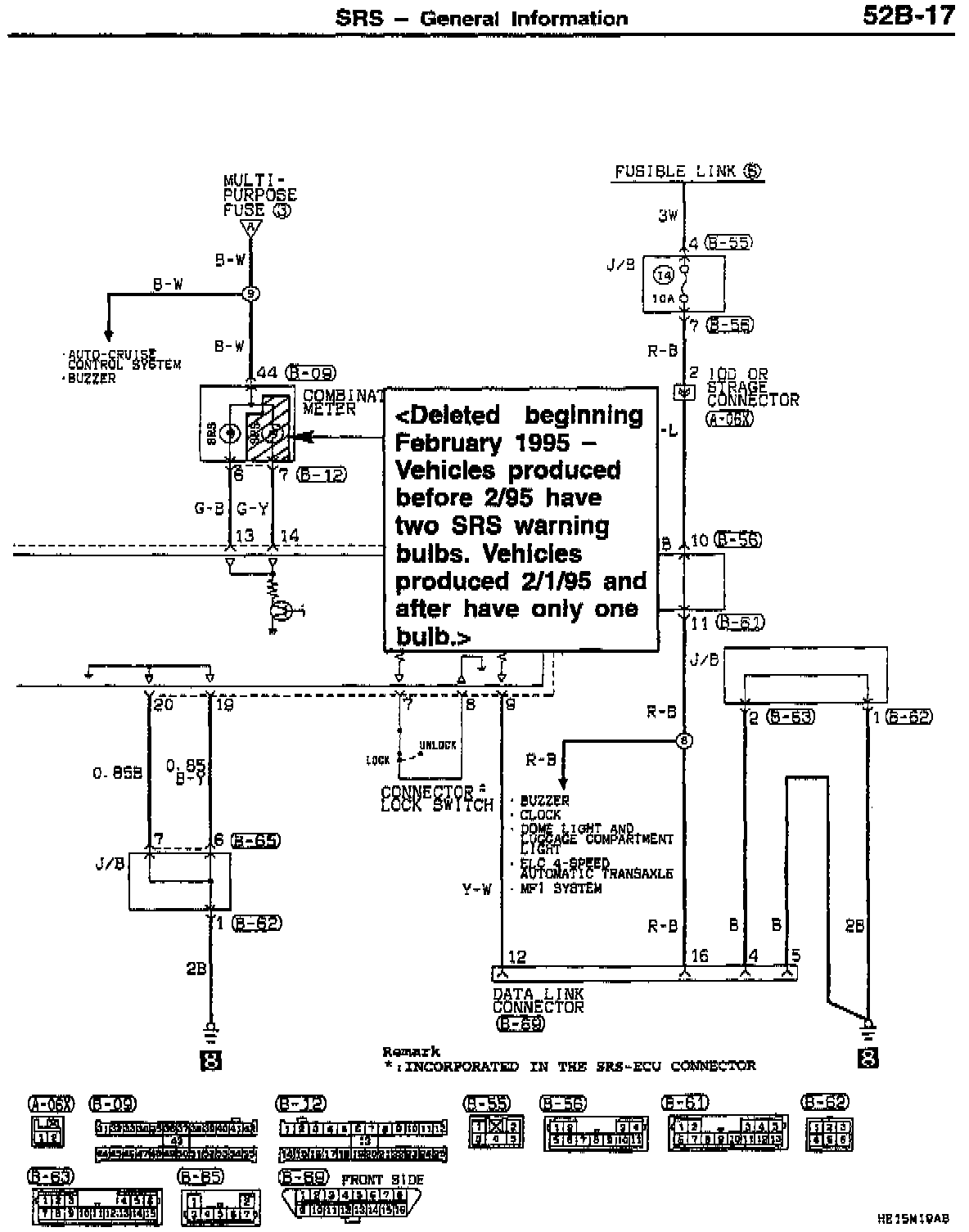

1993-96, Volume 1, Page 52B-17
Make the necessary changes in the manual to indicate that the second SRS indicator bulb in the combination meter was eliminated beginning with February 1995 production.

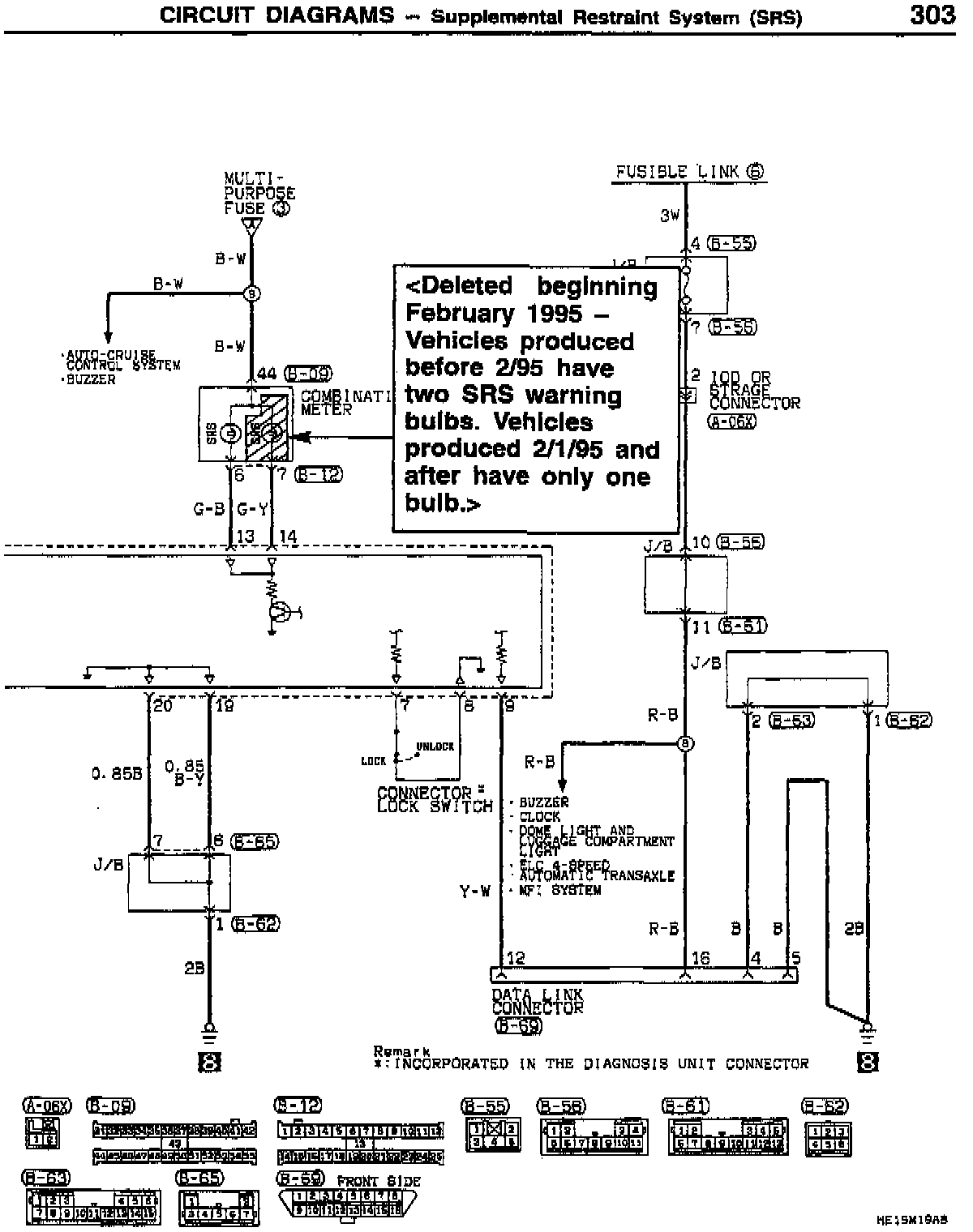

Circuit Diagrams Supplemental Restraint System
1993-96, Volume 2, Page 303
Make the necessary changes in the manual to indicate that the second SRS indicator bulb in the combination meter was eliminated beginning with February 1995 production.
