Intake Air Temperature Sensor

1. Disconnect the intake air temperature sensor connectors.

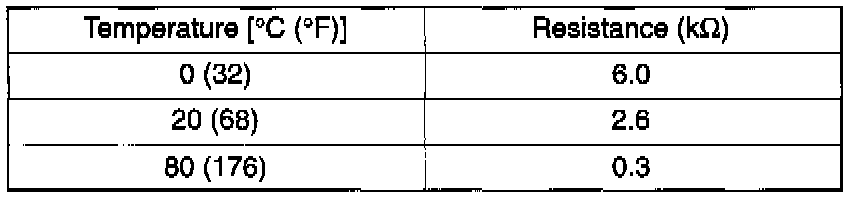

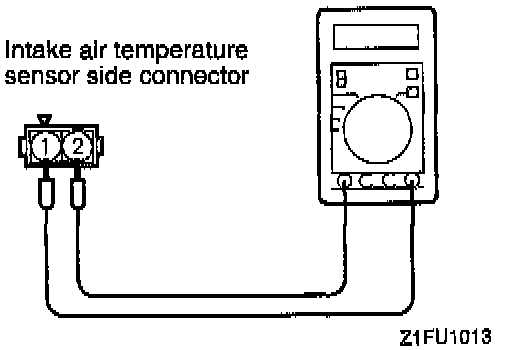

2. Measure resistance between terminals No. 1 and No. 2.
3. Remove intake air temperature sensor from intake manifold.

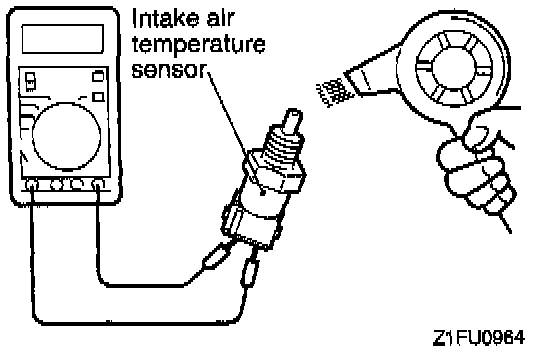

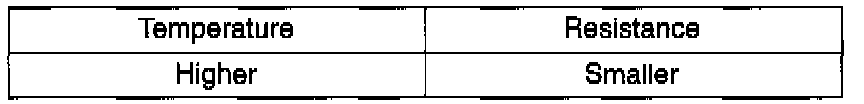

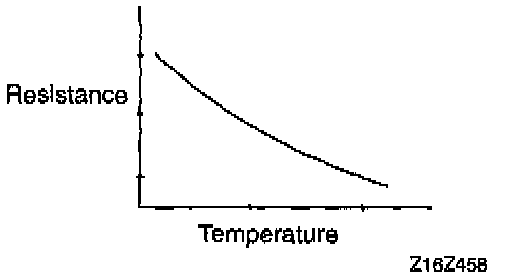

4. Measure resistance while heating the sensor using a hair drier.







5. If resistance does not decrease as heat increase or the resistance remains unchanged, replace the intake air temperature sensor.
