Tape Player: Service and Repair

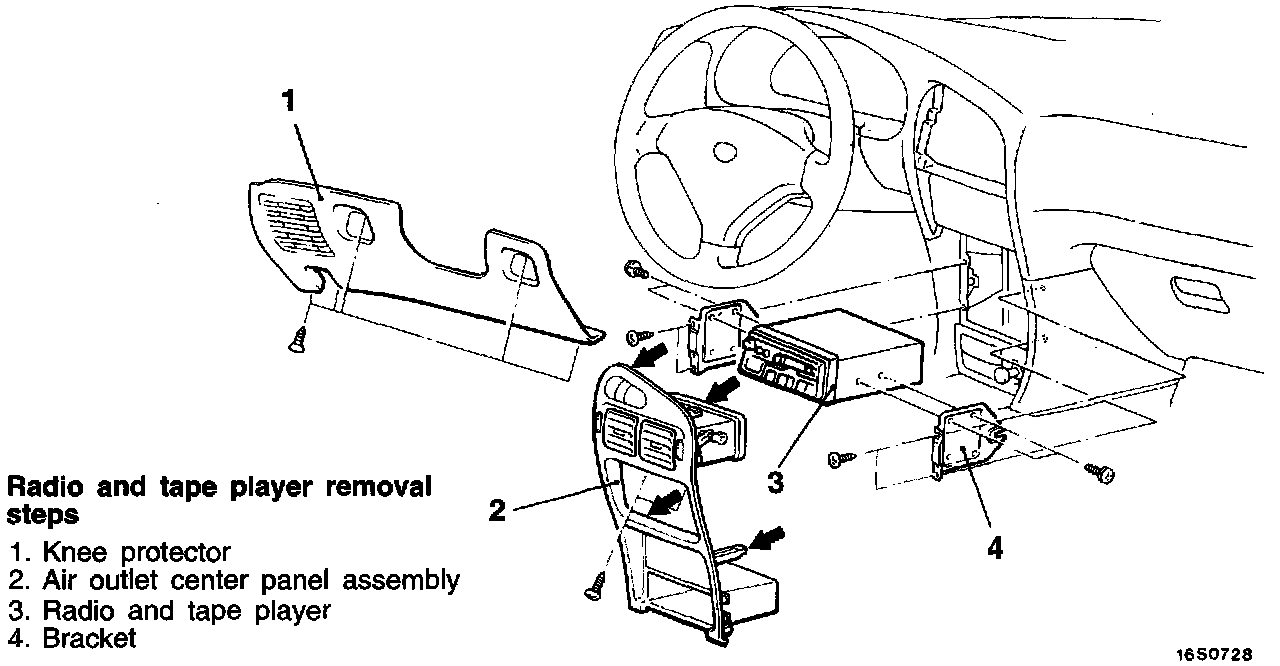

Radio And Tape Player - Removal And Installation:

NOTE: On some models, radio fuse is located on rear of radio. If radio fuse is to be replaced it is necessary to remove radio.

REMOVE
1. Knee Protector
2. Air outlet center panel assembly
3. Radio and tape player
4. Bracket

INSTALL
1. Bracket
2. Radio and tape player
3. Air outlet center panel assembly
4. Knee Protector
