Transmission Mount: Service and Repair

1. Relieve fuel system pressure as outlined under Technician Safety Information, then remove air cleaner assembly.
2. Using a suitable lifting device, raise engine and transaxle assembly slightly to alleviate pressure on transaxle mount.

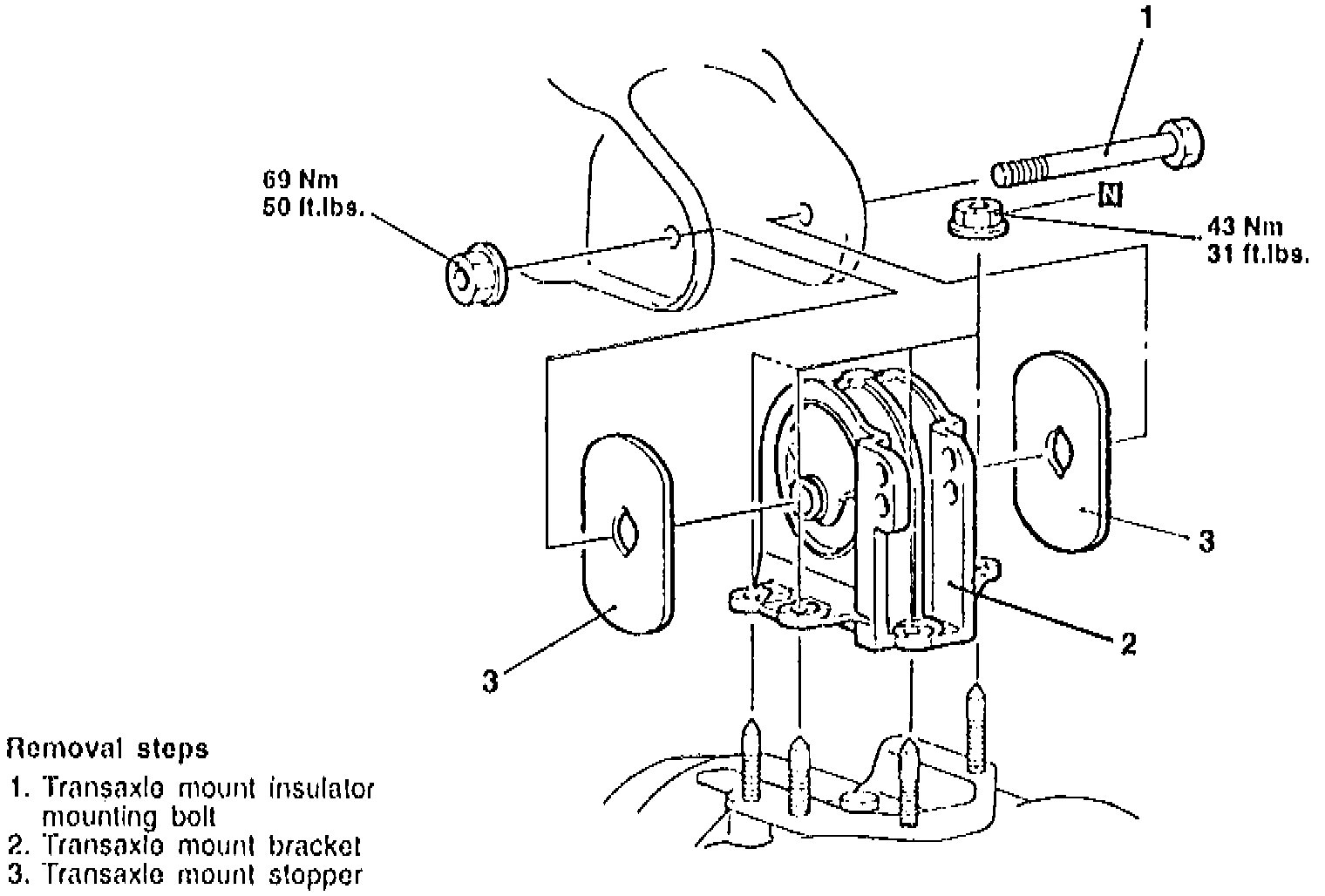

Fig. 3 Transaxle Mount Replacement:

3. Remove transaxle mount in numbered sequence shown in Fig. 3.
4. Reverse procedure to install. Tighten all bolts and nuts to specifications.
