Pressure Regulating Solenoid: Testing and Inspection

PRESSURE CONTROL SOLENOID VALVE (PCSV) INSPECTION
1. Disconnect the PCSV connector.

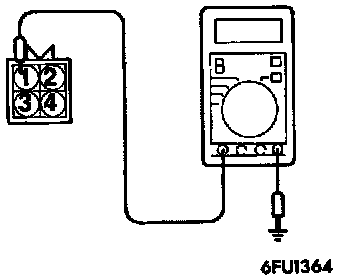

2. Measure the resistance between the PCSV side connector terminal 1 and the body ground.

Standard value: Approx. 3 ohms [at 20°C (68°F)]

3. If the resistance is outside the standard value, replace the solenoid valve assembly.
