Fuel Pump Control Unit: Service and Repair

CAUTION: Be careful not to subject the SRS diagnosis unit to any shocks during removal and installation of the transaxle control cable and shift lever assembly.

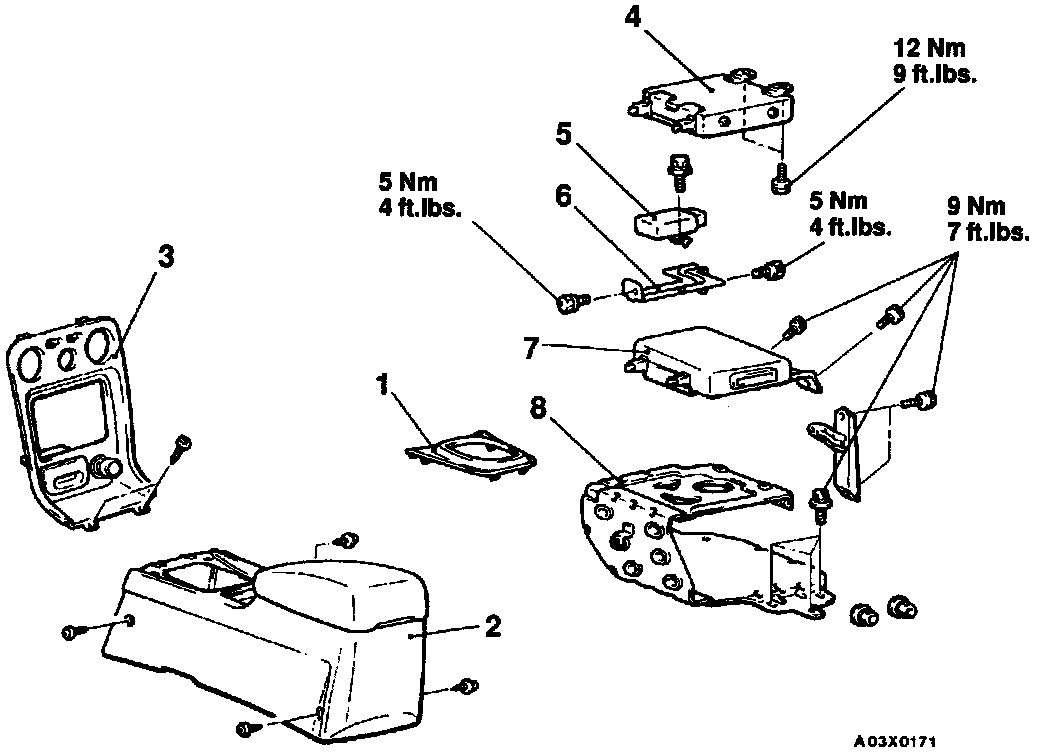

Removal Steps
1. Selector lever panel
2. Floor console box
3. Center console panel
4. Engine control module
5. Fuel pump relay module
6. Fuel pump relay module bracket
7. Transaxle control module (TCM)
8. TCM bracket
