Headlamp Relay: Testing and Inspection

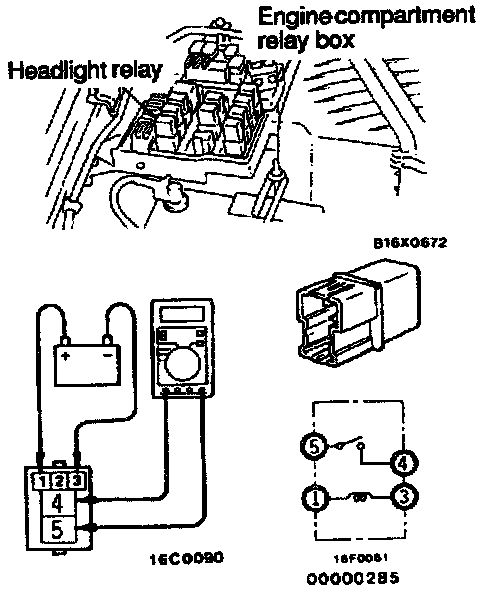

Headlight Relay Continuity Check:

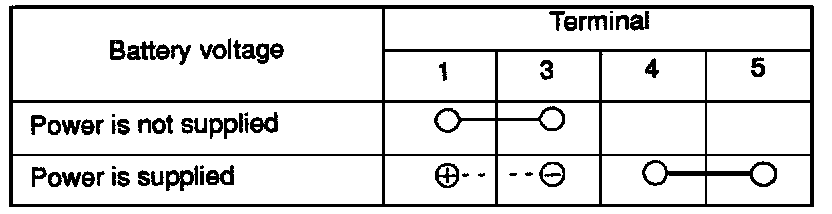

Headlight Relay Continuity Check:
