Fuel - Tank Filler Tube Routing Corrected
No.: TSB-95-13-002DATE: December 1995
MODEL: 1995 Galant
SUBJECT:
FUEL TANK FILLER TUBE ASSEMBLY -
SERVICE MANUAL REVISION
TSB Revision TSB-95-13-002
PURPOSE
The illustration of the fuel tank filler tube assembly for the California model 1995 Galant shows incorrect pipe configuration and routing. This bulletin revises the 1994-95 Galant Service Manual, Volume 1, to show the correct fuel tank filler tube assembly piping and also adds procedures for inspecting the fuel tank filler tube assembly.
To reference this bulletin in the service manual, write the TSB Revision number in the TSB Revision box located at the bottom of the affected service manual page.
NOTE:
When servicing, always use the latest edition of the Service Manual. The older version may contain information that is no longer valid.
AFFECTED SERVICE MANUALS
1994-95 Galant, Volume 1; Pages 13F-4 & 13F-5
SERVICE MANUAL REVISION

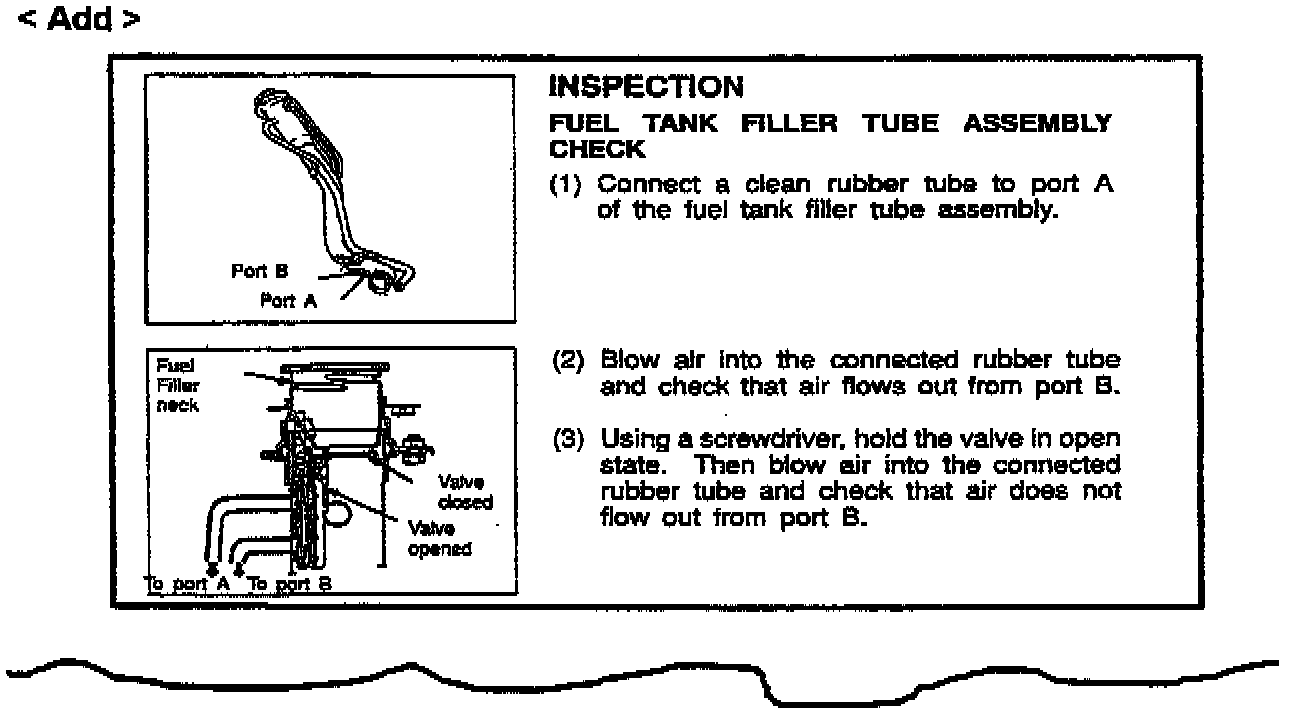

1994-95 Galant, Volume 1, Page 13F-5
Add the new fuel tank filler tube assembly inspection procedures as shown.
1994-95 Galant, Volume 1, Page 13F-4
Make changes to the manual as shown.
