Evaporative Emission Control Canister: Service and Repair

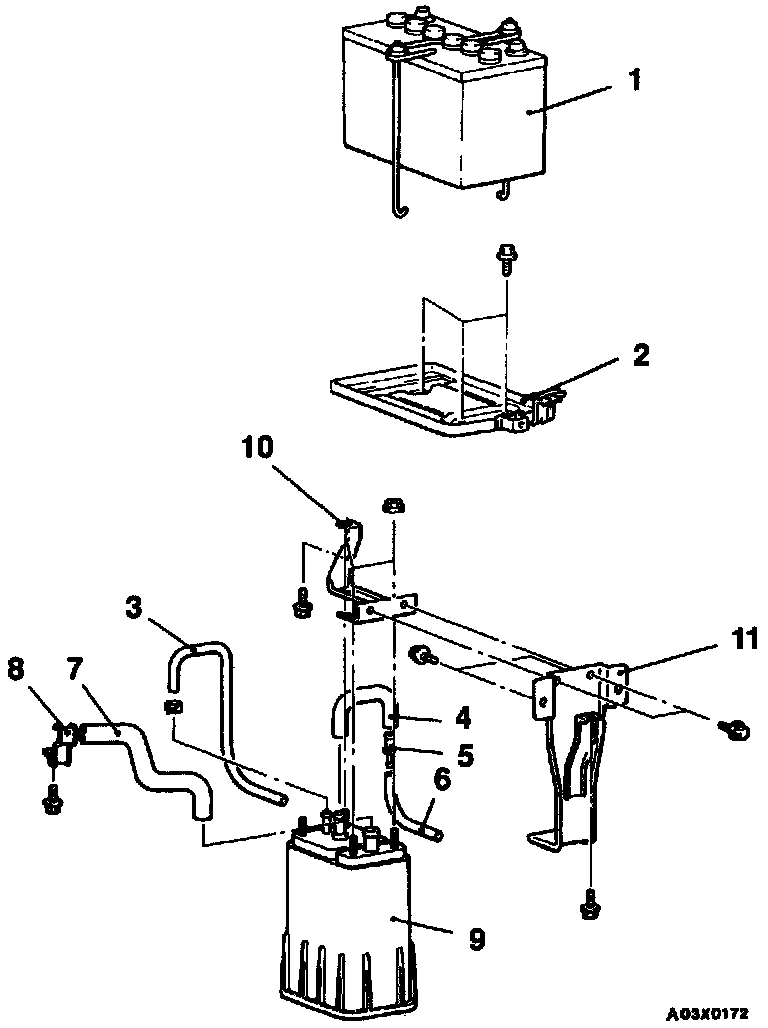

Removal steps
1. Battery
2. Battery tray
3. Vapor hose
4. Evaporative emission purge hose
5. Connector
6. Vapor hose
7. Vent hose
8. Hose clamp
9. Evaporative emission canister
10. Evaporative emission canister upper bracket
11. Evaporative emission canister bracket
