Expansion Valve: Service and Repair

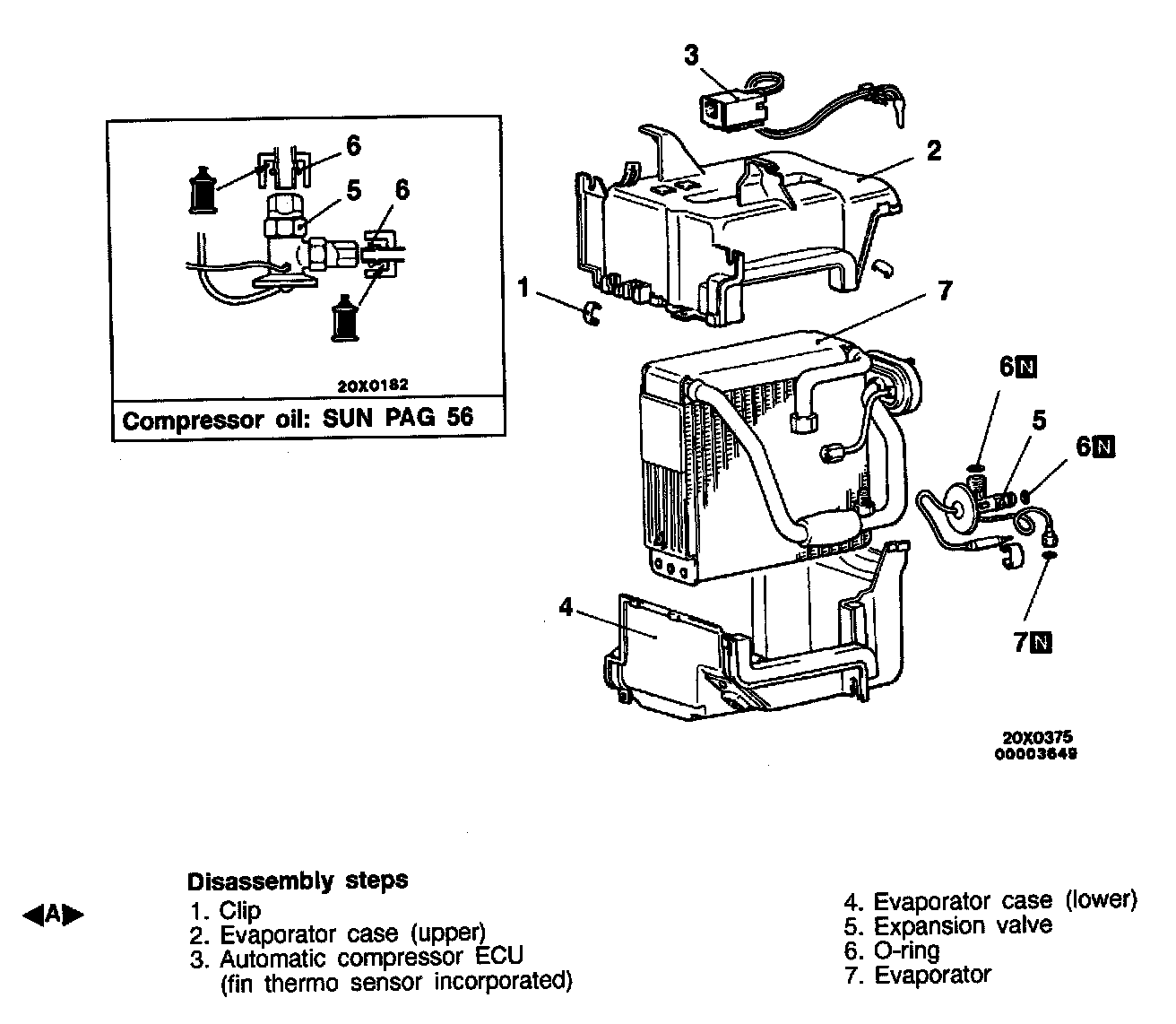

DISASSEMBLY AND REASSEMBLY





DISASSEMBLY SERVICE POINT

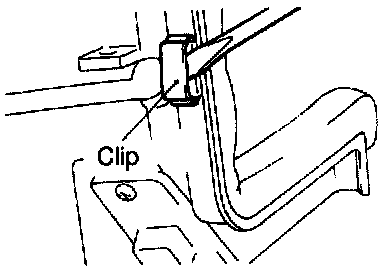

CLIP REMOVAL
Remove the clips with a fiat-tipped screwdriver covered with a shop towel to prevent damage to case surfaces.

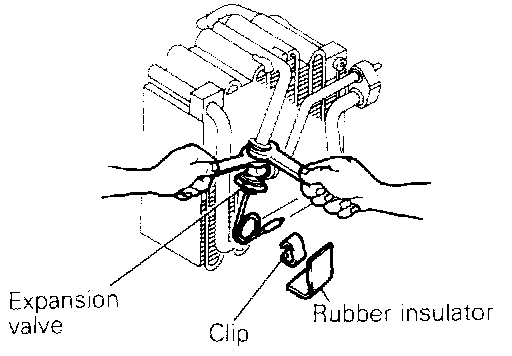

- REMOVAL OF EXPANSION VALVE
Loosen the flare nut by using two wrenches. (for both the inlet and outlet.)
