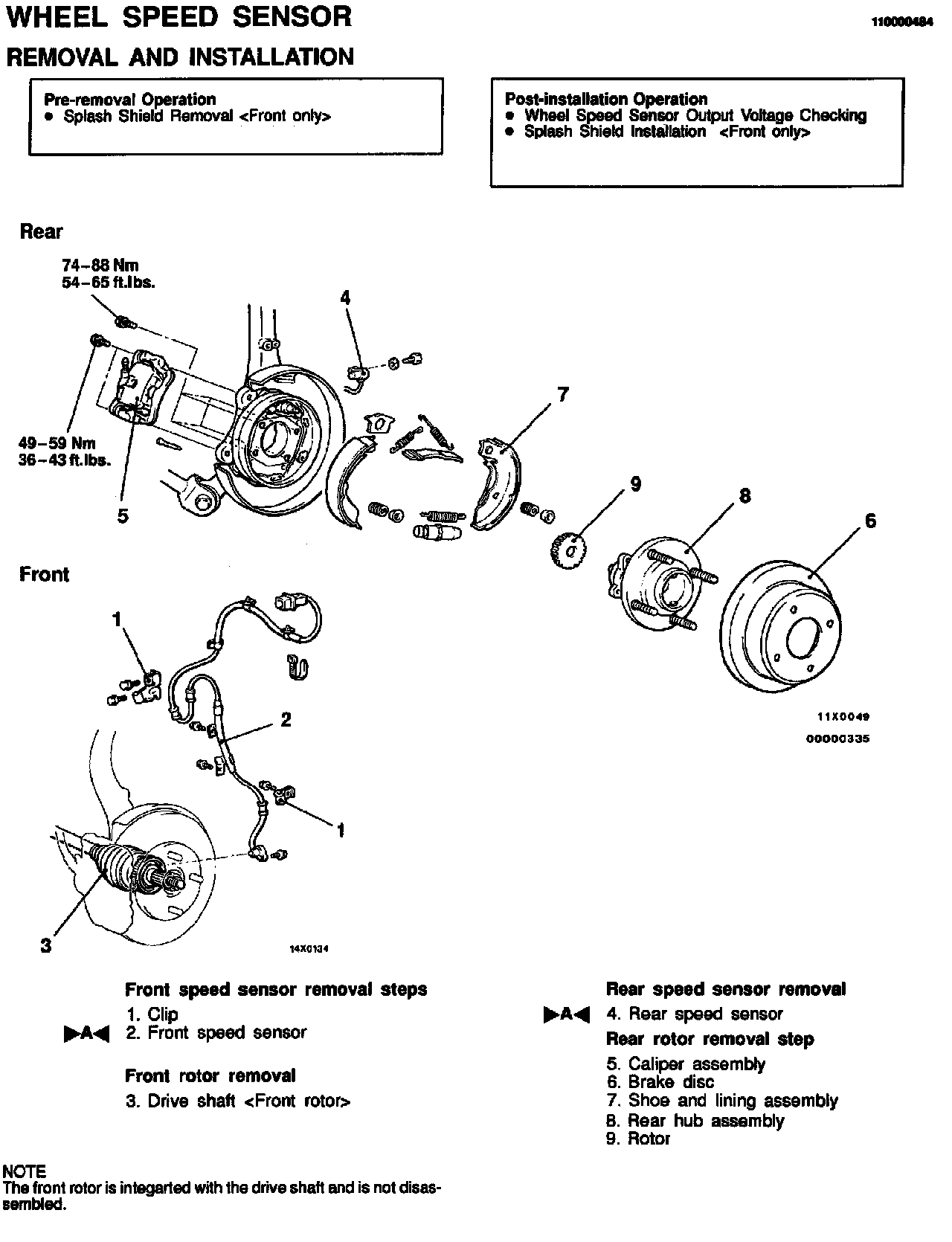

Wheel Speed Sensor: Service and Repair

>A< FRONT SPEED SENSOR / REAR SPEED SENSOR INSTALLATION

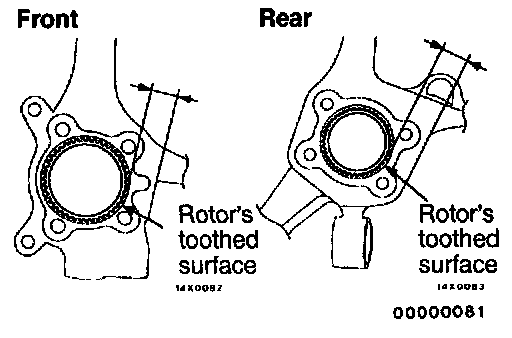

The clearance between the speed sensor and the rotor's toothed surface is not adjustable, but measure the distance between the sensor installation surface and the rotor's toothed surface.





Standard value: 28.2-28.5 mm (1.11-1.12 in.)
