Input Signal Inspection Points

Input Signal Inspection Points (Part 1 Of 2):

Input Signal Inspection Points (Part 2 Of 2):

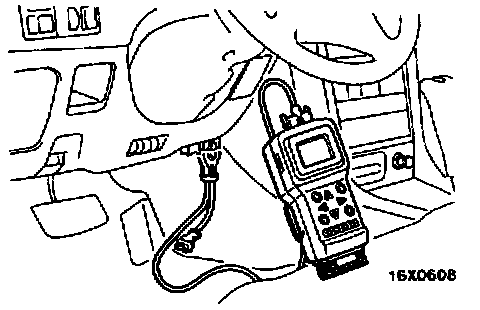

When Using the Scan Tool
1. Connect the scan tool to the data link connection.

CAUTION: The ignition switch should always be turned OFF when connecting and disconnecting the scan tool.

2. If buzzer of the scan tool sounds once when a switch is operated (ON/OFF), the ECU input signal for that switch circuit system is normal.

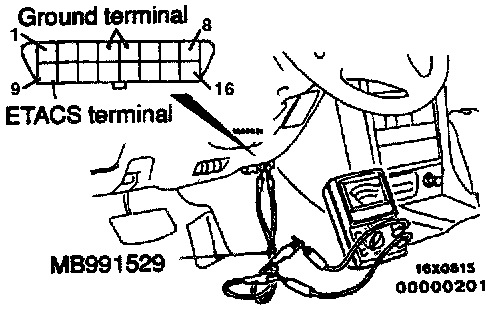

When Using the Voltmeter
1. Use the special tool to connect a voltmeter between the ground terminal and the ETACS terminal of data link connector.
2. If the voltmeter indicator deflects once when a switch is operated (ON/OFF), the ECU input signal for that switch circuit system is normal.
